Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17FPR020ERES 0.02 OHM 1% 7W AXIAL Ohmite |
2,574 |
|
Datasheet |
10 | Bulk | Active | 20 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | 4 | - |
|
TA810PW1R00JERES 1 OHM 5% 10W POWERCHIP Ohmite |
2,015 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 1 Ohms | ±5% | 10W | Thick Film | - | ±450ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TAH20P7R50JERES 7.5 OHM 5% 20W TO220 Ohmite |
2,712 |
|
Datasheet |
TAH | Tube | Active | 7.5 Ohms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | ±100ppm/°C | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
B12J25KERES 25K OHM 5% 12W AXIAL Ohmite |
3,712 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 25 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|

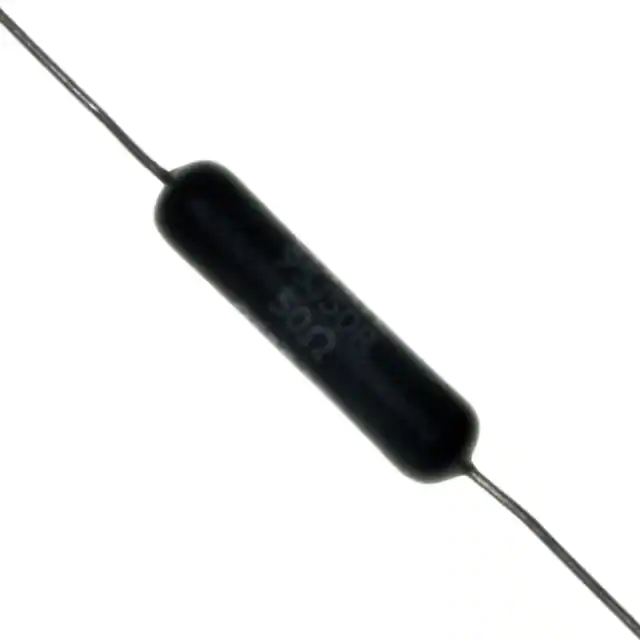

95J50RRES 50 OHM 5% 5W AXIAL Ohmite |
3,892 |
|
Datasheet |
90 | Bulk | Active | 50 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|

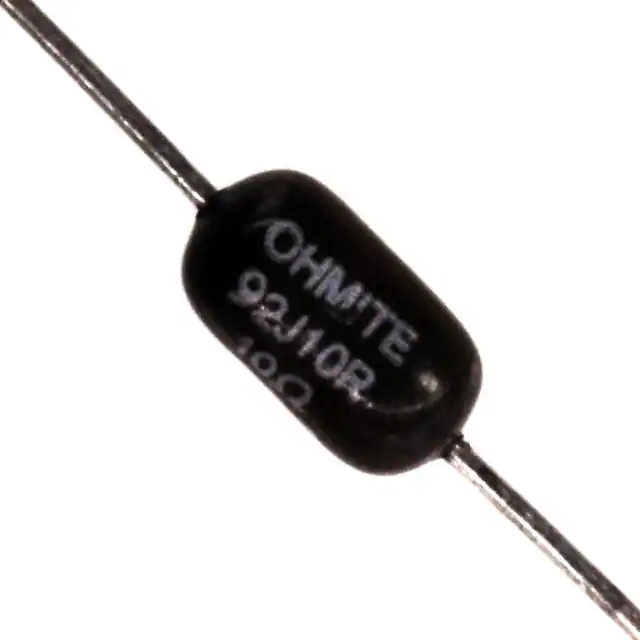

92J10RRES 10 OHM 5% 2.25W AXIAL Ohmite |
2,578 |
|
Datasheet |
90 | Bulk | Active | 10 Ohms | ±5% | 2.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
OC1K101E-TRRES 100 OHM 10% 1.2W AXIAL Ohmite |
2,555 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 100 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
|
OC1K222E-TRRES 2.2K OHM 10% 1W AXIAL Ohmite |
4,039 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 2.2 kOhms | ±10% | 1W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
|
OC1K470E-TRRES 47 OHM 10% 1.2W AXIAL Ohmite |
3,531 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 47 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
|
OC2K560E-TRRES 56 OHM 10% 1.7W AXIAL Ohmite |
4,537 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 56 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
