Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OX222KERES 2.2K OHM 10% 1W AXIAL Ohmite |
1,163 |
|
Datasheet |
OX | Bulk | Active | 2.2 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
25J220ERES 220 OHM 5% 5W AXIAL Ohmite |
144 |
|
Datasheet |
20 | Bulk | Active | 220 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
MOX70035000BYERES 500 OHM 0.1% 1/4W AXIAL Ohmite |
324 |
|
Datasheet |
MOX700 | Tray | Active | 500 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
20J33RERES 33 OHM 5% 10W AXIAL Ohmite |
190 |
|
Datasheet |
20 | Bulk | Active | 33 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
23J2K0ERES 2K OHM 5% 3W AXIAL Ohmite |
1,002 |
|
Datasheet |
20 | Bulk | Active | 2 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
45F6K0ERES 6K OHM 1% 5W AXIAL Ohmite |
454 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 6 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
25J120ERES 120 OHM 5% 5W AXIAL Ohmite |
240 |
|
Datasheet |
20 | Bulk | Active | 120 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
25J500ERES 500 OHM 5% 5W AXIAL Ohmite |
230 |
|
Datasheet |
20 | Bulk | Active | 500 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|

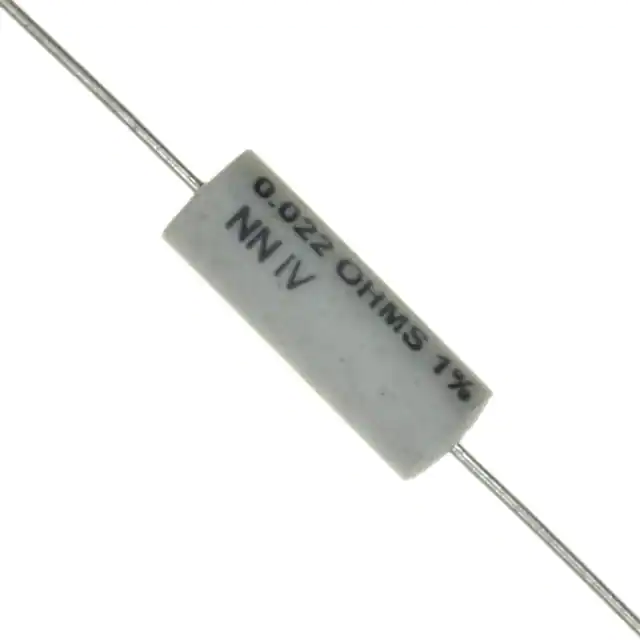

14AFR022ERES 0.022 OHM 1% 4W AXIAL Ohmite |
371 |
|
Datasheet |
14A | Bulk | Active | 22 mOhms | ±1% | 4W | Metal Element | Current Sense | - | -55°C ~ 275°C | Axial | 0.252" Dia x 0.709" L (6.40mm x 18.00mm) | - | 2 | - |
|
|
25JR33ERES 0.33 OHM 5% 5W AXIAL Ohmite |
365 |
|
Datasheet |
20 | Bulk | Active | 330 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
