Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25J20RERES 20 OHM 5% 5W AXIAL Ohmite |
106 |
|
Datasheet |
20 | Bulk | Active | 20 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
23J15RERES 15 OHM 5% 3W AXIAL Ohmite |
247 |
|
Datasheet |
20 | Bulk | Active | 15 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|

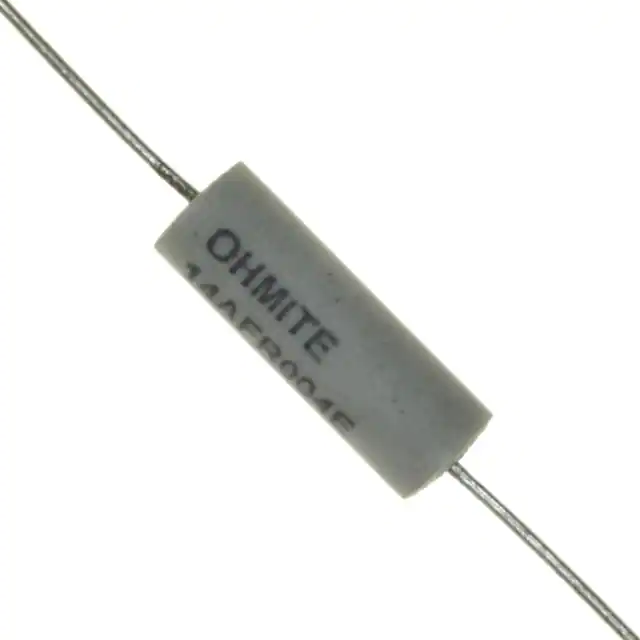

14AFR004ERES 0.004 OHM 1% 4W AXIAL Ohmite |
194 |
|
Datasheet |
14A | Bulk | Active | 4 mOhms | ±1% | 4W | Metal Element | Current Sense | - | -55°C ~ 275°C | Axial | 0.252" Dia x 0.709" L (6.40mm x 18.00mm) | - | 2 | - |
|
|
23J3R0ERES 3 OHM 5% 3W AXIAL Ohmite |
224 |
|
Datasheet |
20 | Bulk | Active | 3 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
12FR005ERES 0.005 OHM 1% 2W AXIAL Ohmite |
1,865 |
|
Datasheet |
10 | Bulk | Active | 5 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|
|
25J25RERES 25 OHM 5% 5W AXIAL Ohmite |
260 |
|
Datasheet |
20 | Bulk | Active | 25 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
25J18RERES 18 OHM 5% 5W AXIAL Ohmite |
234 |
|
Datasheet |
20 | Bulk | Active | 18 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
OY182KERES 1.8K OHM 10% 2W AXIAL Ohmite |
1,252 |
|
Datasheet |
OY | Bulk | Active | 1.8 kOhms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|
42J10RERES 10 OHM 5% 2W AXIAL Ohmite |
1,004 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 10 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
43J25RERES 25 OHM 5% 3W AXIAL Ohmite |
560 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 25 Ohms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
