Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
43FR15ERES 0.15 OHM 1% 3W AXIAL Ohmite |
270 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 150 mOhms | ±1% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
25J560ERES 560 OHM 5% 5W AXIAL Ohmite |
306 |
|
Datasheet |
20 | Bulk | Active | 560 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|

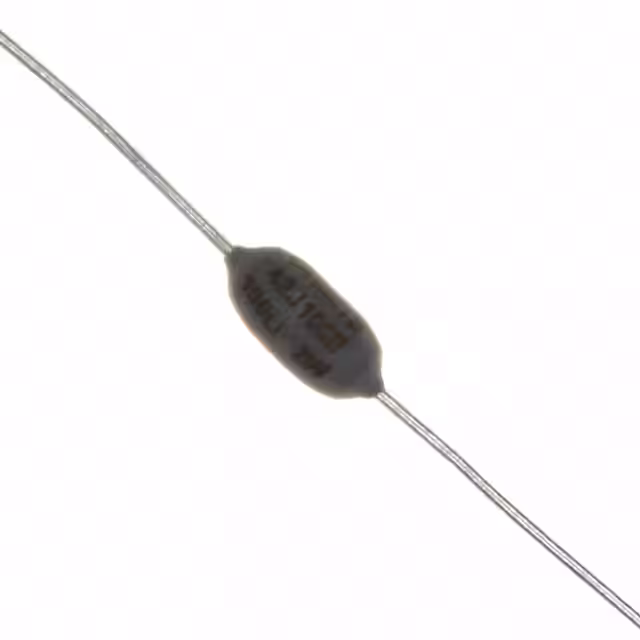

42J100ERES 100 OHM 5% 2W AXIAL Ohmite |
3,996 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
|
43FR75ERES 0.75 OHM 1% 3W AXIAL Ohmite |
274 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 750 mOhms | ±1% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
45F56RERES 56 OHM 1% 5W AXIAL Ohmite |
368 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 56 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
23J2K2ERES 2.2K OHM 5% 3W AXIAL Ohmite |
104 |
|
Datasheet |
20 | Bulk | Active | 2.2 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
TWW15J10RERES 10 OHM 5% 15W RADIAL Ohmite |
4,919 |
|
Datasheet |
TWW | Box | Active | 10 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
33J15RERES 15 OHM 5% 3W AXIAL Ohmite |
437 |
|
Datasheet |
High Energy Wirewound | Bulk | Active | 15 Ohms | ±5% | 3W | Wirewound | - | - | - | Axial | 0.217" Dia x 0.594" L (5.50mm x 15.10mm) | - | 2 | - |
|
|
25J2K0ERES 2K OHM 5% 5W AXIAL Ohmite |
128 |
|
Datasheet |
20 | Bulk | Active | 2 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
43F120ERES 120 OHM 1% 3W AXIAL Ohmite |
216 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 120 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
