Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

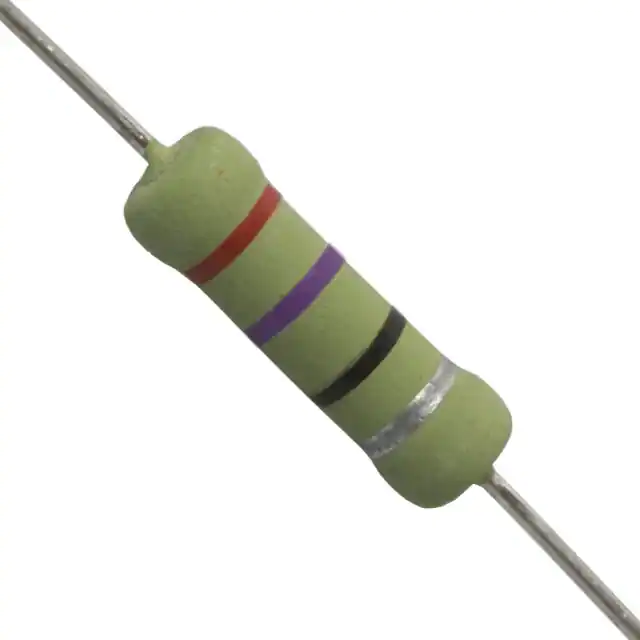

OX270KERES 27 OHM 10% 1W AXIAL Ohmite |
214 |
|
Datasheet |
OX | Bulk | Active | 27 Ohms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
20J18RERES 18 OHM 5% 10W AXIAL Ohmite |
153 |
|
Datasheet |
20 | Bulk | Active | 18 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
25J1K0ERES 1K OHM 5% 5W AXIAL Ohmite |
185 |
|
Datasheet |
20 | Bulk | Active | 1 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|

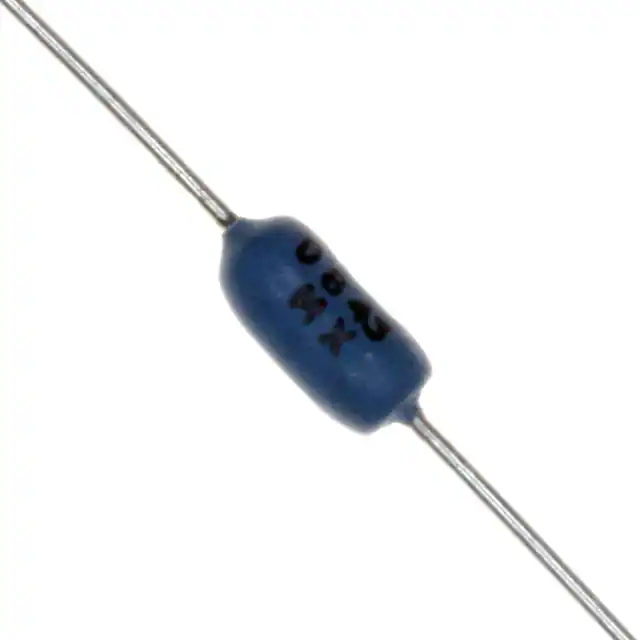

42JR20ERES 0.2 OHM 5% 2W AXIAL Ohmite |
439 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 200 mOhms | ±5% | 2W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|

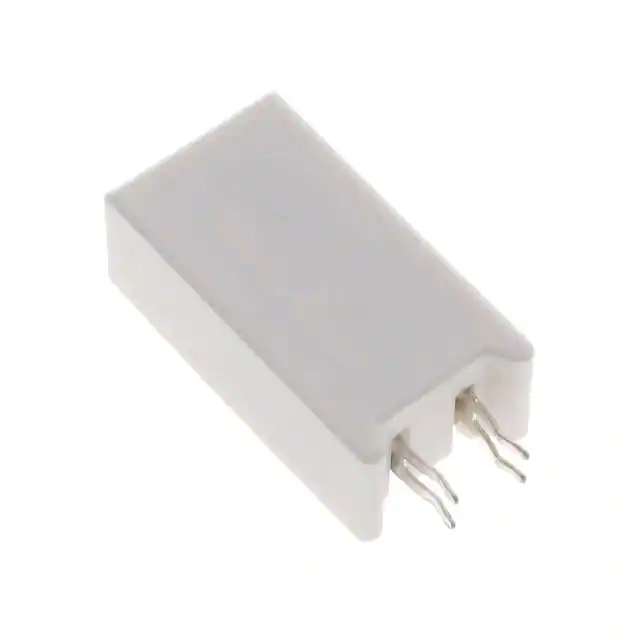

TWM20J10KERES 10K OHM 5% 20W RADIAL Ohmite |
5,027 |
|
Datasheet |
TWM | Box | Active | 10 kOhms | ±5% | 20W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
|
TWM20J4K7ERES 4.7K OHM 5% 20W RADIAL Ohmite |
4,405 |
|
Datasheet |
TWM | Box | Active | 4.7 kOhms | ±5% | 20W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
45FR33ERES 0.33 OHM 1% 5W AXIAL Ohmite |
226 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 330 mOhms | ±1% | 5W | Wirewound | - | ±90ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
43F20RERES 20 OHM 1% 3W AXIAL Ohmite |
487 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 20 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
25J4K0ERES 4K OHM 5% 5W AXIAL Ohmite |
292 |
|
Datasheet |
20 | Bulk | Active | 4 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
20J330ERES 330 OHM 5% 10W AXIAL Ohmite |
133 |
|
Datasheet |
20 | Bulk | Active | 330 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
