Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OY681KERES 680 OHM 10% 2W AXIAL Ohmite |
645 |
|
Datasheet |
OY | Bulk | Active | 680 Ohms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|

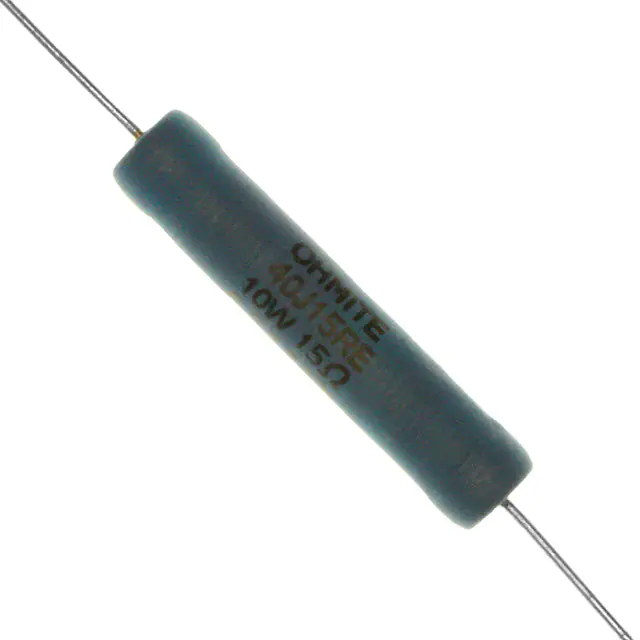

40J15RERES 15 OHM 5% 10W AXIAL Ohmite |
120 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 15 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
20J75RERES 75 OHM 5% 10W AXIAL Ohmite |
734 |
|
Datasheet |
20 | Bulk | Active | 75 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
TWW20J51RERES 51 OHM 5% 20W RADIAL Ohmite |
440 |
|
Datasheet |
TWW | Box | Active | 51 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
41F50RERES 50 OHM 1% 1W AXIAL Ohmite |
241 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 50 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
TWW20J500ERES 500 OHM 5% 20W RADIAL Ohmite |
4,473 |
|
Datasheet |
TWW | Box | Active | 500 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
OY560KERES 56 OHM 10% 2W AXIAL Ohmite |
564 |
|
Datasheet |
OY | Bulk | Active | 56 Ohms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|
|
20JR50ERES 0.5 OHM 5% 10W AXIAL Ohmite |
180 |
|
Datasheet |
20 | Bulk | Active | 500 mOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
23JR20ERES 0.2 OHM 5% 3W AXIAL Ohmite |
498 |
|
Datasheet |
20 | Bulk | Active | 200 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
OY683KERES 68K OHM 10% 2W AXIAL Ohmite |
397 |
|
Datasheet |
OY | Bulk | Active | 68 kOhms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
