Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMGGF5L0TSWITCH SNAP ACTION SPDT 1A 125V C&K |
3,472 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|

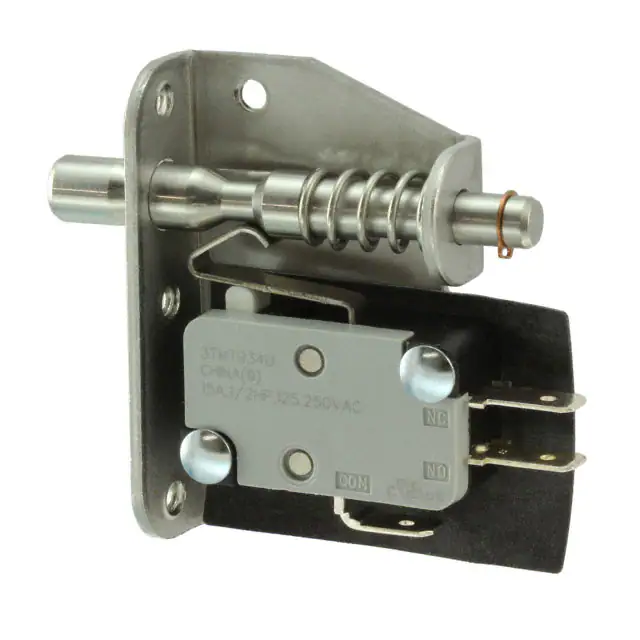

12TL402SWITCH SNAP ACTION SPDT 15A 125V C&K |
1,646 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

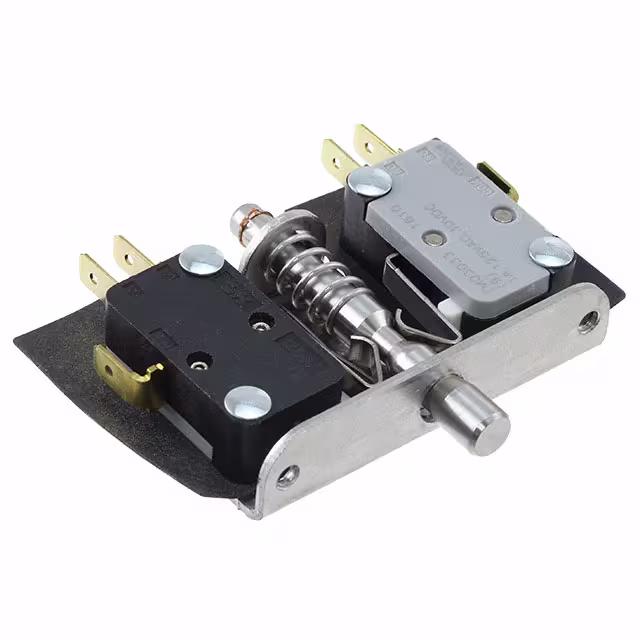

23TL402SWITCH SNAP ACT SPDTX2 15A 125V C&K |
4,194 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

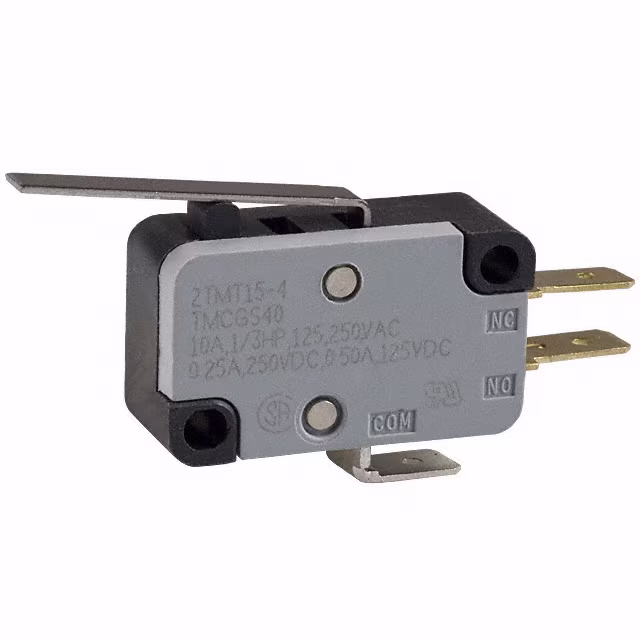

TMCGD6ST1540CSWITCH SNAP ACTION SPDT 10A 125V C&K |
2,551 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 9.000gf | 0.600" (15.2mm) | 0.161" (4.1mm) | 0.032" (0.81mm) | 0.075" (1.9mm) | -55°C ~ 150°C |
|
ZMA00A080P00PC1SWITCH SNAP ACT SPDT 0.1A 125V C&K |
4,094 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
.JPG)
|

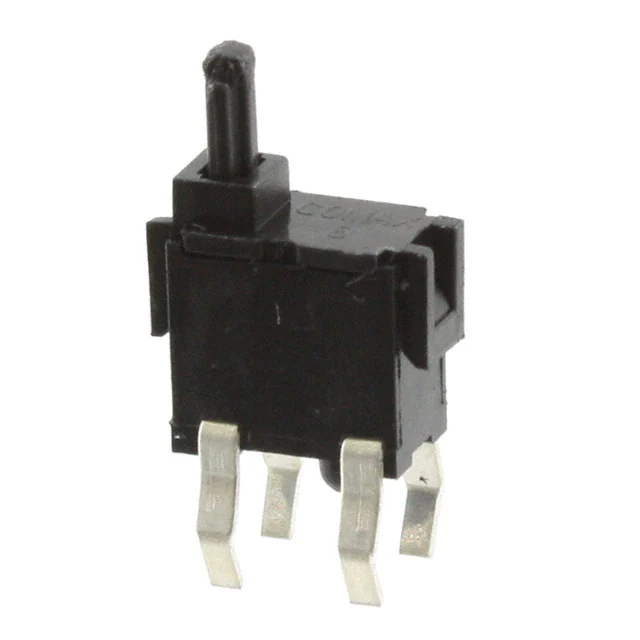

DS-02005 (30)SWITCH DETECT SPST-NO 100MA 30V C&K |
3,371 |
|
Datasheet |
DS, COMAX | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 30gf | - | 0.312" (7.9mm) | - | - | - | - | |
|
|
DS-02005SWITCH DETECTOR SPST-NO 0.1A 30V C&K |
4,586 |
|
Datasheet |
DS, COMAX | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 30gf | - | 0.312" (7.9mm) | 0.028" (0.7mm) | - | - | - |
|
|
ZMA00A150S03LCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,089 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 150gf | 7.000gf | 0.386" (9.8mm) | 0.138" (3.5mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|
|
SDS001RULCSWITCH SNAP ACT SPST-NC 0.1A 12V C&K |
1,538 |
|
Datasheet |
SDS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | 50gf | 0.264" (6.7mm) | 0.020" (0.5mm) | - | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
SDS002RULCSWITCH SNAP ACT SPST-NO 0.1A 12V C&K |
1,284 |
|
Datasheet |
SDS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | 50gf | 0.264" (6.7mm) | 0.020" (0.5mm) | - | 0.060" (1.5mm) | -40°C ~ 85°C |
