Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

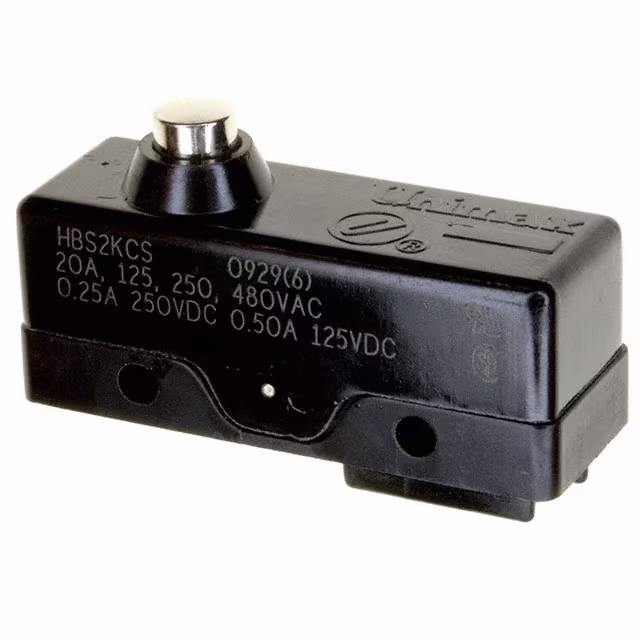

HBS2KCB4SD011CSWITCH SNAP ACTION SPDT 20A 125V C&K |
2,507 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.844" (21.44mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.055" (1.4mm) | -55°C ~ 150°C |
|

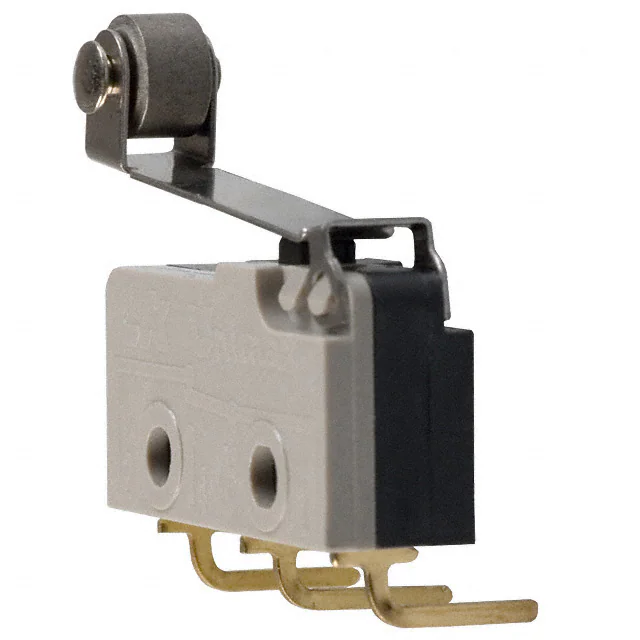

LCGHF5A10RCSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,809 |
|
Datasheet |
LC | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 57gf | 12gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|

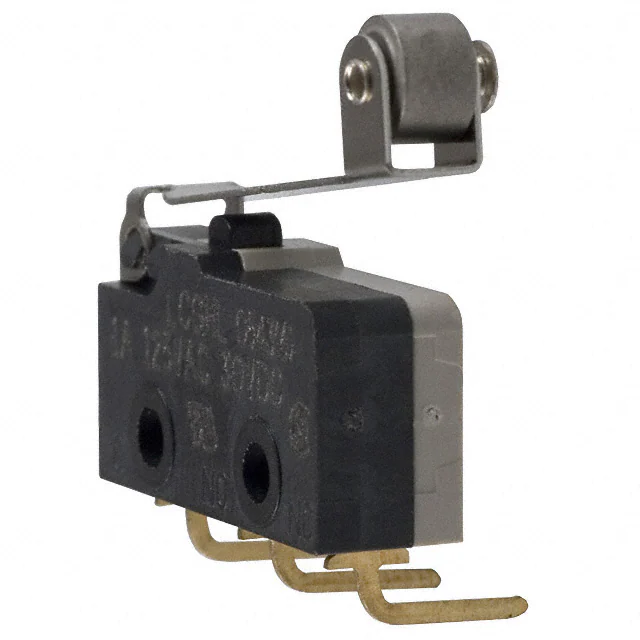

LCGHF5A10LCSWITCH SNAP ACTION SPDT 1A 125V C&K |
2,905 |
|
Datasheet |
LC | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 57gf | 12gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
ADPDC2BB4ACSWITCH SNAP ACTION DPDT 15A 125V C&K |
4,672 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Red Button | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
ADPDC2L04ACSWITCH SNAP ACTION DPDT 15A 125V C&K |
1,780 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 510gf | 57gf | 0.312" (7.9mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
DS2D6BQ1SWITCH SNAP ACTION DPDT 10A 125V C&K |
4,660 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|

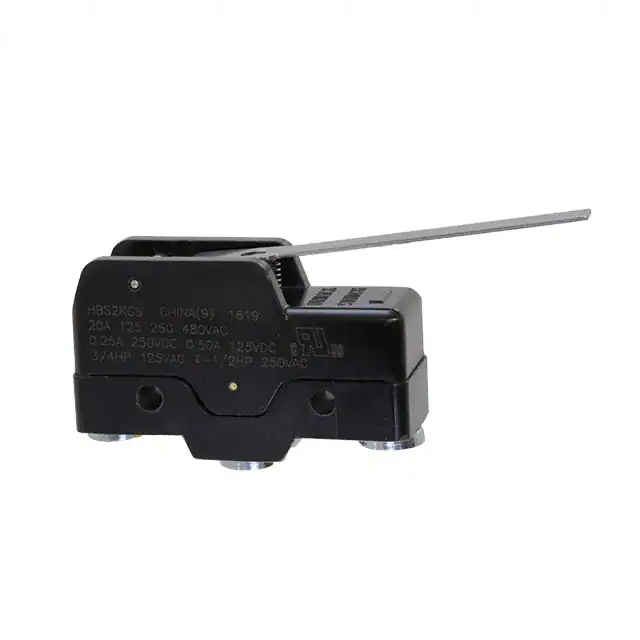

HBS2KGB6ST055CSWITCH SNAP ACTION SPDT 20A 125V C&K |
1,845 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.720" (18.3mm) | 0.380" (9.65mm) | 0.080" (2.0mm) | 0.190" (4.8mm) | -55°C ~ 150°C |
|

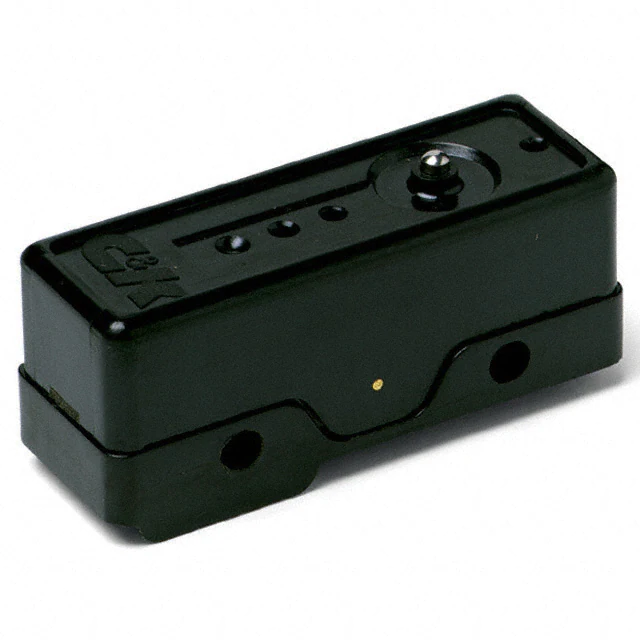

HBS2KGB4SP011CSWITCH SNAP ACTION SPDT 20A 125V C&K |
1,741 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 510gf | 113gf | 0.625" (15.9mm) | 0.025" (0.65mm) | 0.003" (0.075mm) | 0.005" (0.13mm) | -55°C ~ 150°C |
|
MMGGF5L2CSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,995 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 170gf | 20gf | 0.330" (8.4mm) | 0.075" (1.9mm) | 0.012" (0.3mm) | 0.015" (0.4mm) | -55°C ~ 135°C |
|
|
MMGGD1W0TSWITCH SNAP ACTION SPDT 7A 250V C&K |
1,242 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Roller | Through Hole | PC Pin | - | - | 115gf | 20gf | 0.531" (13.5mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
