Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2F5BQ1SWITCH SNAP ACT DPDT 100MA 125V C&K |
4,708 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
HBS2KCB4SP055CSWITCH SNAP ACTION SPDT 20A 125V C&K |
3,631 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.625" (15.9mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 150°C |
|

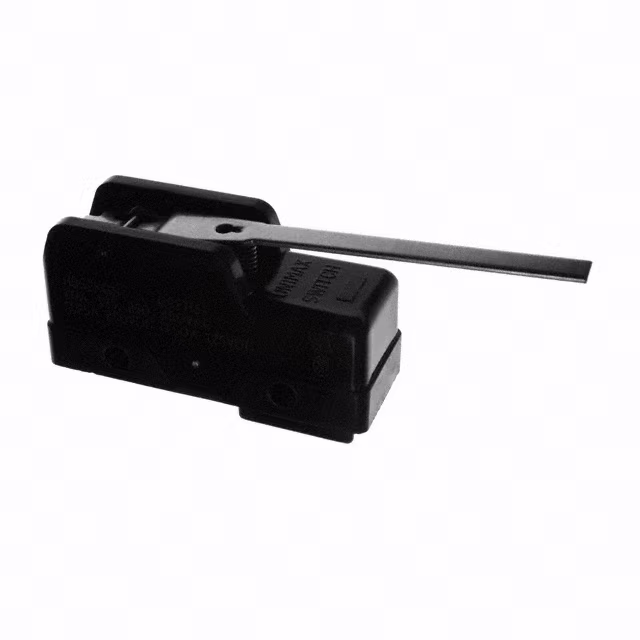

HBS2KGB4STS11CSWITCH SNAP ACTION SPDT 20A 125V C&K |
3,468 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.720" (18.3mm) | 0.380" (9.65mm) | 0.080" (2.0mm) | 0.190" (4.8mm) | -55°C ~ 150°C |
|
MMGGF5D0TSWITCH SNAP ACTION SPDT 1A 125V C&K |
3,548 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 142gf | 20gf | 0.472" (12.0mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -55°C ~ 135°C |
|
23TL404SWITCH SNAP ACT SPDTX2 15A 125V C&K |
3,949 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
MMGGF5L0RSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,429 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|
|
HBS7PBB4SJ011CSWITCH SNAP ACTION SPDT 20A 125V C&K |
3,242 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 737gf | 113gf | 0.860" (21.84mm) | 0.030" (0.8mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|
DS-080-CPADETECTOR SWITCHES 0.1A 30V 30GF C&K |
750 |
|
Datasheet |
DS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 30gf | - | 0.126" (3.2mm) | - | - | 0.081" (2.05mm) | -20°C ~ 70°C |
|
ASKHC2BB4ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
4,965 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Red Button | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|

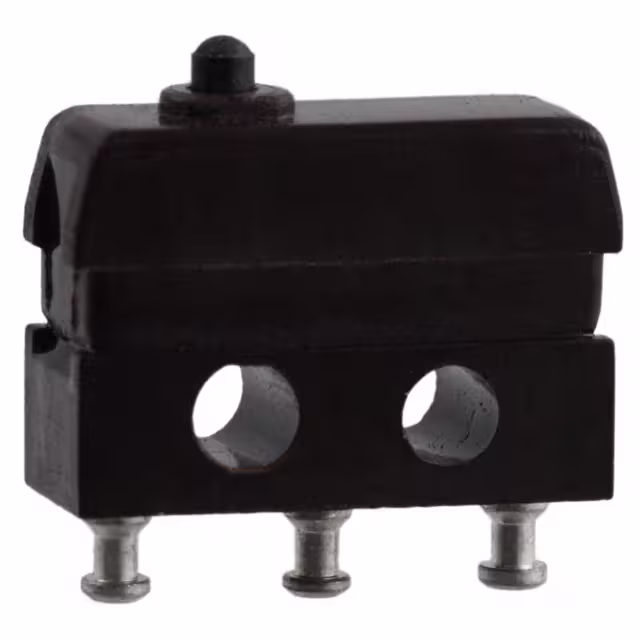

MMGGD1P0CSWITCH SNAP ACTION SPDT 7A 250V C&K |
2,188 |
|
Datasheet |
MM | Tray | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 142gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 135°C |
