Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

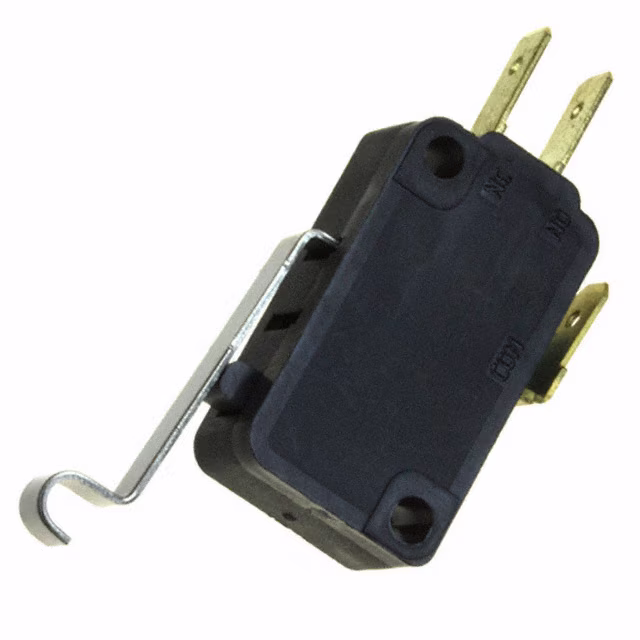

TFCDH8ST1340CSWITCH SNAP ACTION SPDT 5A 277V C&K |
2,577 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 277 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 12gf | 4.000gf | 0.812" (20.6mm) | 0.100" (2.5mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
LCGGL9P00ECSWITCH SNAP ACTION SPDT 5A 125V C&K |
4,086 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 142gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
ADPDC2T04AYSWITCH SNAP ACT DPST-NO 15A 125V C&K |
4,777 |
|
Datasheet |
A | Bulk | Active | DPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 28gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|

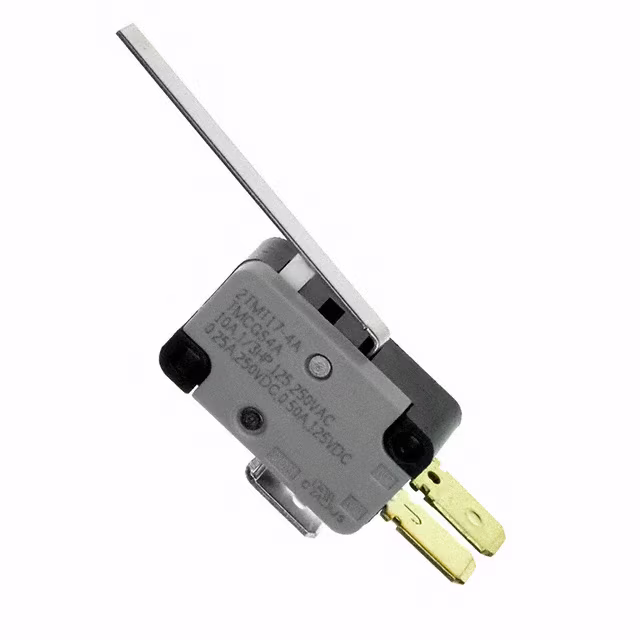

TMCGD6ST174ACSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,738 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 25gf | 6.000gf | 0.600" (15.2mm) | 0.219" (5.6mm) | 0.062" (1.6mm) | 0.110" (2.8mm) | -55°C ~ 150°C |
|

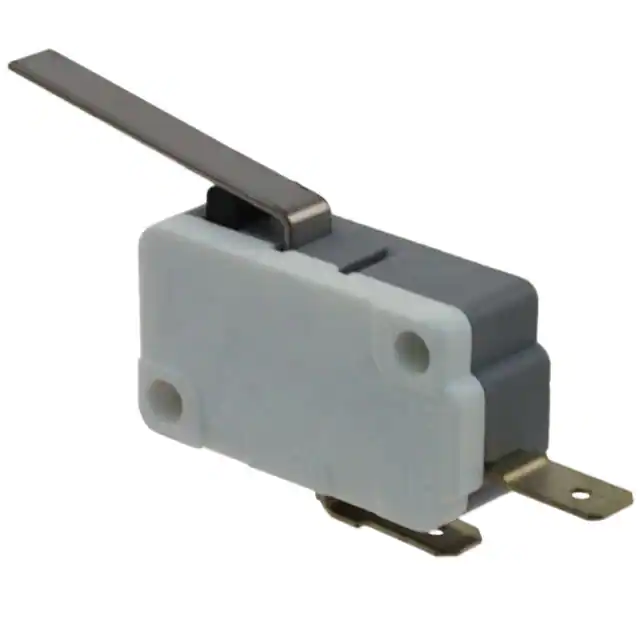

TFCJF5VT2540YSWITCH SNAP ACT SPST-NO 1A 125V C&K |
3,424 |
|
Datasheet |
TF | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 6.000gf | 0.600" (15.2mm) | 0.250" (6.35mm) | 0.055" (1.4mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|

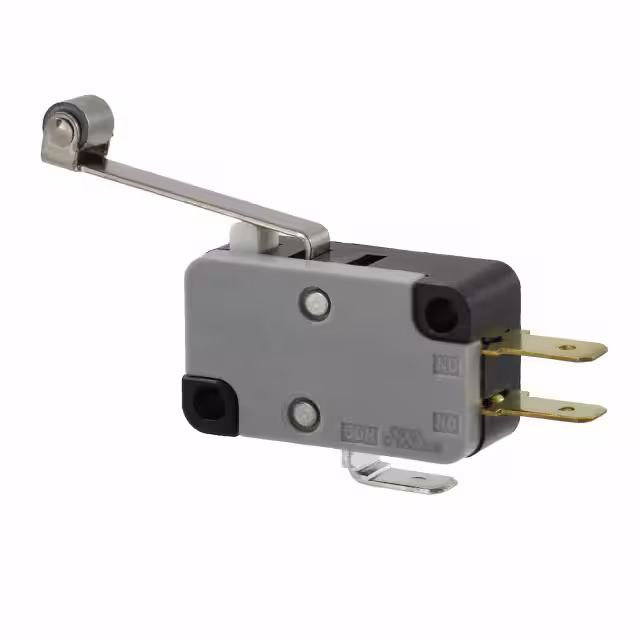

TMCGD6SA2540CSWITCH SNAP ACTION SPDT 10A 125V C&K |
2,586 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 5.000gf | 0.812" (20.6mm) | 0.312" (7.9mm) | 0.070" (1.8mm) | 0.125" (3.2mm) | -55°C ~ 150°C |
|
|
ASGGF5BB4AYSWITCH SNAP ACT SPST-NO 1A 125V C&K |
1,382 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Red Button | 227gf | 28gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
TFEEJ6ST1640CSWITCH SNAP ACTION SPDT 15A 277V C&K |
2,358 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.600" (15.2mm) | 0.250" (6.35mm) | 0.045" (1.1mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
ADPFC2W04ACSWITCH SNAP ACTION DPDT 15A 125V C&K |
1,150 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 624gf | 57gf | 0.718" (18.24mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
DS2D6AQ1SWITCH SNAP ACTION DPDT 10A 125V C&K |
3,047 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
