Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMT03ACJS02JCE22SWITCH SNAP ACTION SPDT 3A 125V C&K |
2,084 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 50gf | 8.000gf | 0.398" (10.1mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
DS1D6BQ1SWITCH SNAP ACTION SPDT 10A 125V C&K |
3,066 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
DS1D6CQ1SWITCH SNAP ACTION SPDT 10A 125V C&K |
3,130 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 385gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|

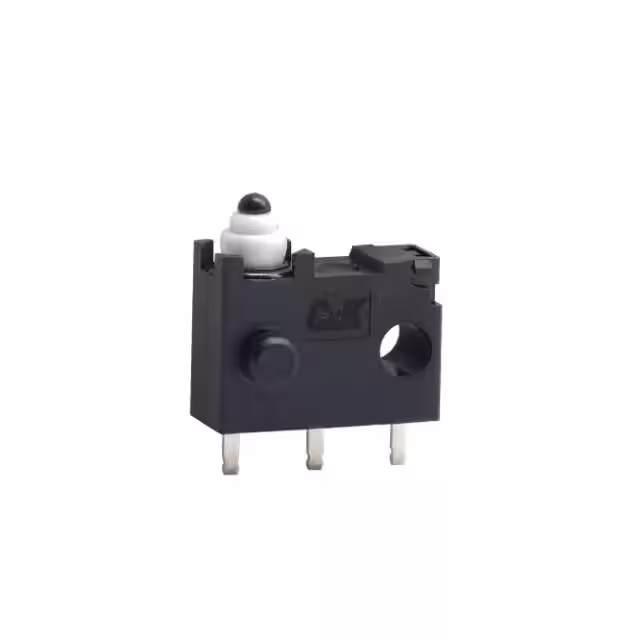

ZMW00AP00JCAASWITCH SNAP ACTION SPDT 0.1A 30V C&K |
4,967 |
|
Datasheet |
ZMW | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.030" (0.8mm) | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
DS1D6AQ3SWITCH SNAP ACTION SPDT 10A 125V C&K |
3,315 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
DS1F5CQ3SWITCH SNAP ACT SPDT 100MA 125V C&K |
2,383 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Pull On Lock | 385gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|

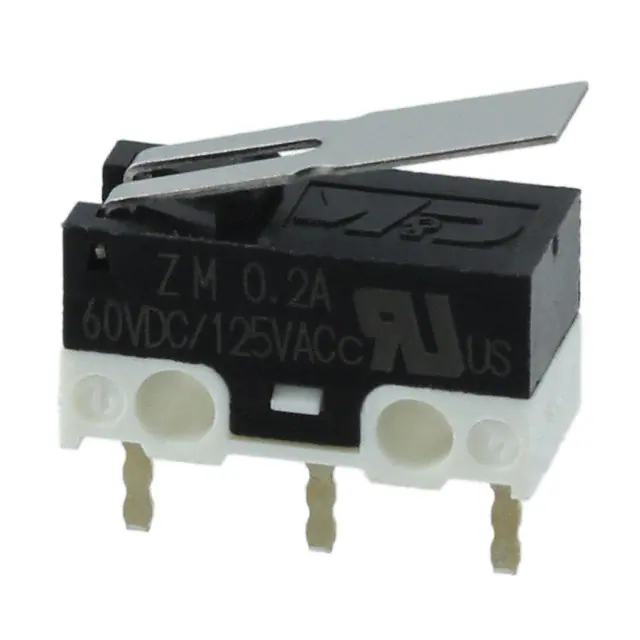

ZMCJM9L0TSWITCH SNAP ACT SPDT 200MA 60V C&K |
3,348 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Leaf | Through Hole | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|
|
ZMT03ACJL03RCESWITCH SNAP ACTION SPDT 3A 125V C&K |
1,596 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Leaf | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | - | 56gf | 8.000gf | 0.280" (7.1mm) | 0.134" (3.4mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
ASKHC2L04ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
3,762 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 340gf | 28gf | 0.312" (7.9mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
|
DS1F5AQ2SWITCH SNAP ACT SPDT 100MA 125V C&K |
4,105 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
