Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMTG03CJS02WCE24SWITCH SNAP ACTION SPDT 3A 125V C&K |
202 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 50gf | 8.000gf | 0.398" (10.1mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
TFCDK6ST1040CSWITCH SNAP ACTION SPDT 11A 277V C&K |
894 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 10gf | 0.600" (15.2mm) | 0.060" (1.5mm) | 0.015" (0.38mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
ASKHC2T04AYSWITCH SNAP ACT SPST-NO 15A 125V C&K |
574 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|

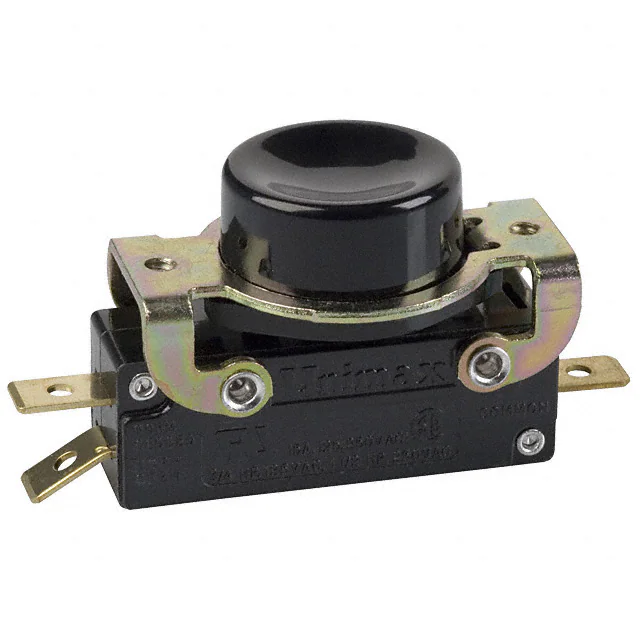

ASKHC2B14ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
325 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Black Button | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
LCGHF5A10LCESWITCH SNAP ACTION SPDT 1A 125V C&K |
155 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | Epoxy Sealed Terminals | 57gf | 12gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|

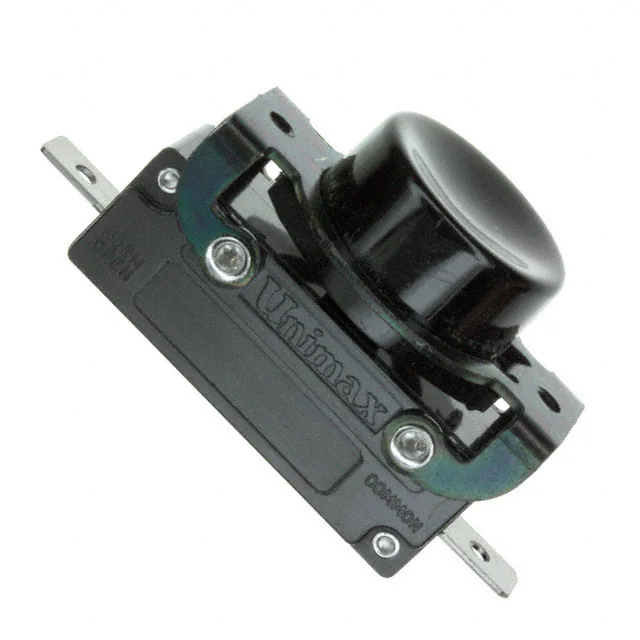

ASKHF3B14AYSWITCH SNAP ACT SPST-NO 25A 125V C&K |
236 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Black Button | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
MMGGF5L0CSWITCH SNAP ACTION SPDT 1A 125V C&K |
3,773 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|
MS-118305-ASWITCH SNAP ACT SPDT 100MA 30V C&K |
7,940 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | - | 0.236" (6.0mm) | - | - | 0.020" (0.5mm) | -20°C ~ 70°C |
|
ZMSMH0130T10PMCSWITCH SNAP ACT SPDT 100MA 12V C&K |
933 |
|
Datasheet |
ZMSM | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Straight | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 195gf | 55gf | 0.295" (7.5mm) | 0.152" (3.85mm) | 0.020" (0.5mm) | 0.084" (2.14mm) | -40°C ~ 85°C |
|
|
ZMSMH0130T11PMCSWITCH SNAP ACT SPDT 100MA 12V C&K |
956 |
|
Datasheet |
ZMSM | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Simulated Roller | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 160gf | 45gf | 0.390" (9.9mm) | 0.188" (4.8mm) | 0.027" (0.7mm) | 0.101" (2.57mm) | -40°C ~ 85°C |
