Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

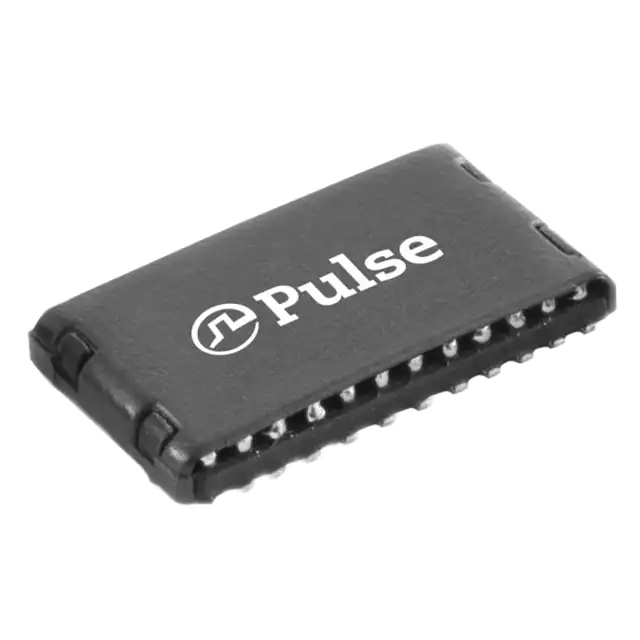

HX4110NLTRANSF MOD 2.55G 4CH 60W POE Pulse Electronics |
539 |
|
Datasheet |
- | Tube | Active | General Purpose | 120µH | - | 1CT:1CT | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | - | - | - |
|

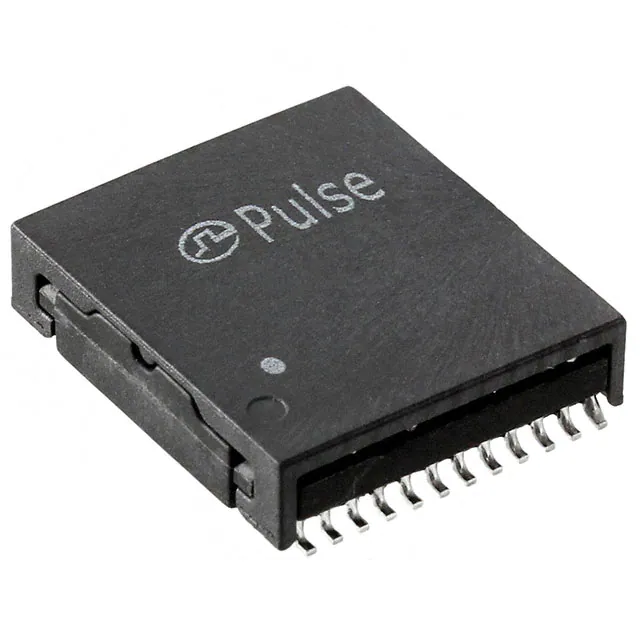

H1174FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,899 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.57mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|

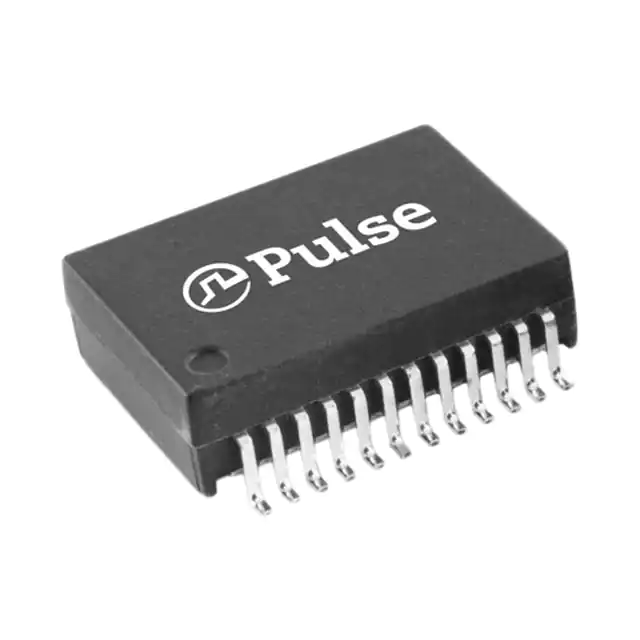

HM5004ENLXFMR MDL 1000BASE-T SMT AEC-Q200 Pulse Electronics |
535 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.695" L x 0.480" W (17.65mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|

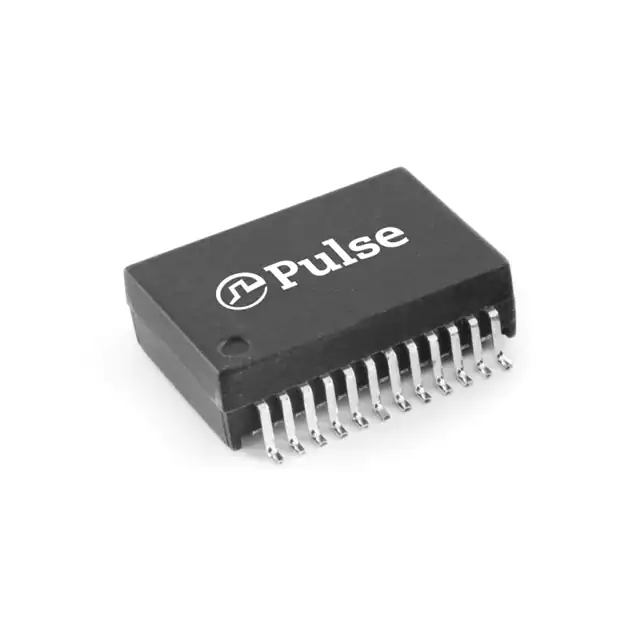

HM5004ENLTMDL SIN 1GD 1:1 SMT TR Pulse Electronics |
1,200 |
|
Datasheet |
HX5004NL | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.695" L x 0.480" W (17.65mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|

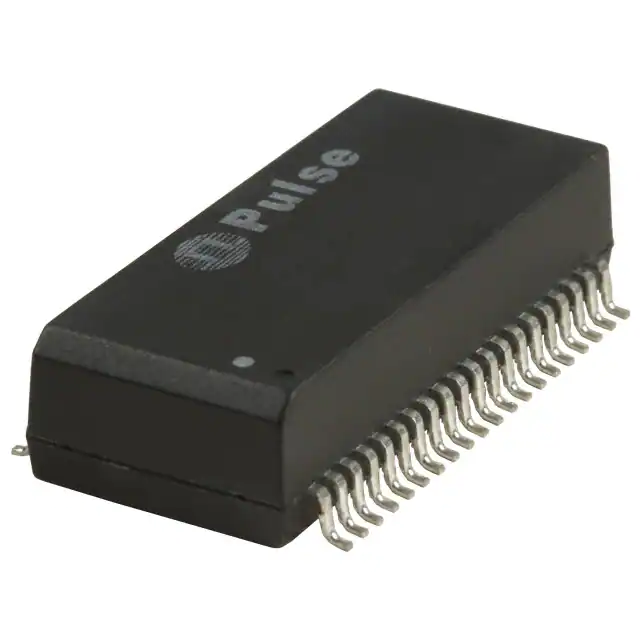

H1164NLMODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics |
1,283 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

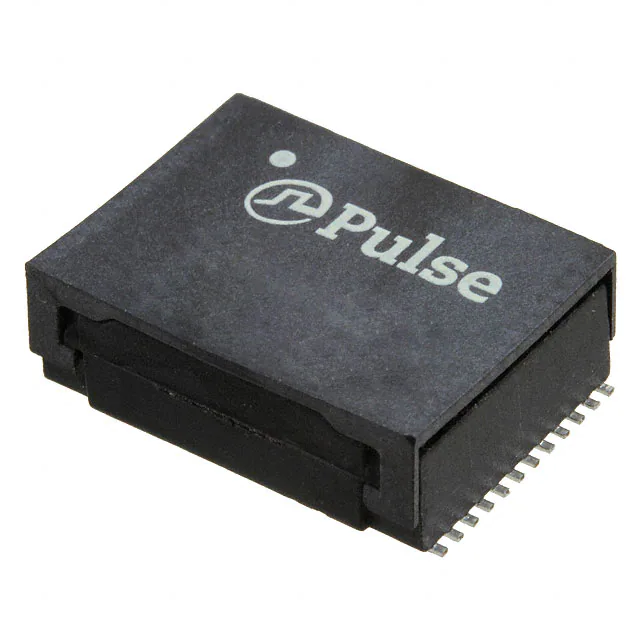

HX5008FNLPULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics |
2,837 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 325µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

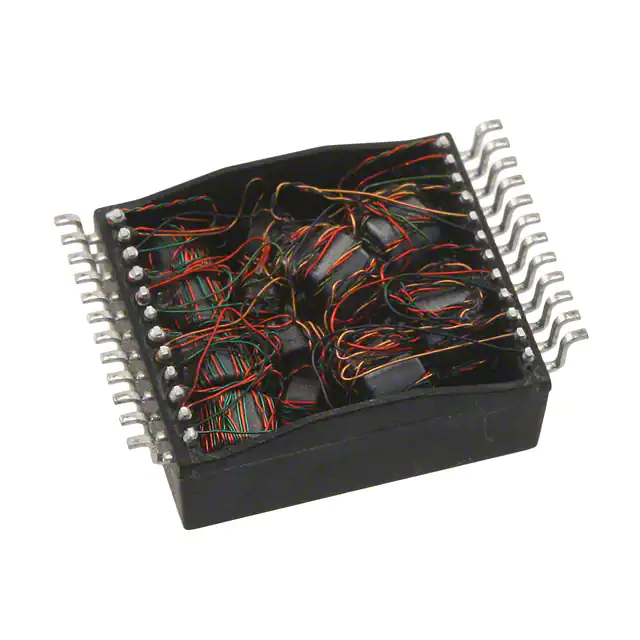

HX5008NLMODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics |
2,146 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
H1164NLTXFRMR MODUL AUTO MDI/MDIX 10/100 Pulse Electronics |
2,007 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HX5200NLXFRMR MODL 2PORT POE GIGABIT Pulse Electronics |
1,709 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | -40°C ~ 85°C | - | - |
|
HX5200NLTXFRMR MODULE DUAL1GP 1:1 . BGA Pulse Electronics |
300 |
|
Datasheet |
HX5200NLT | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
