Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

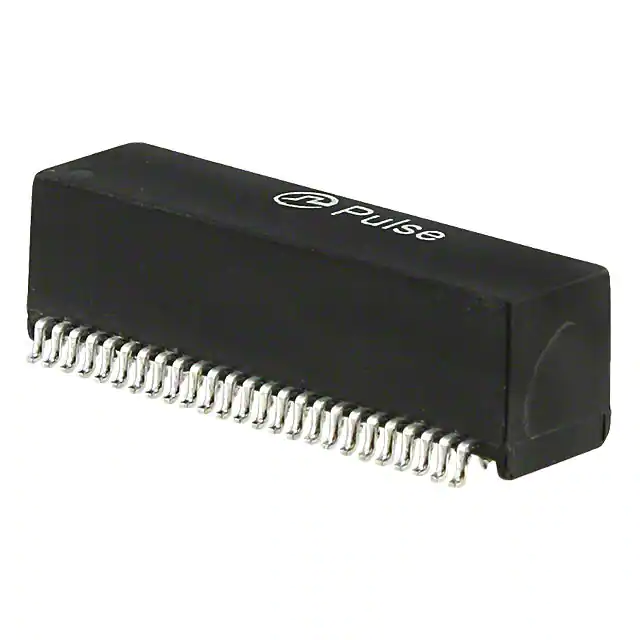

HX5020NLMODULE DUAL GIGABIT ETHENET 50P Pulse Electronics |
996 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|
|
HX5020NLTTRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics |
664 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|
|
H5020NLTTRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics |
480 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | 0°C ~ 70°C | - | - |
|
HX5120NLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
1,273 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|
GU4929RM LFMDL 1G DIP 4 PORT POE 90W Pulse Electronics |
556 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 85°C | - | - |
|
H5400NLMODULE XFORMR QUAD GIGABIT SMD Pulse Electronics |
549 |
|
Datasheet |
- | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | 0°C ~ 70°C | - | - |
|
|

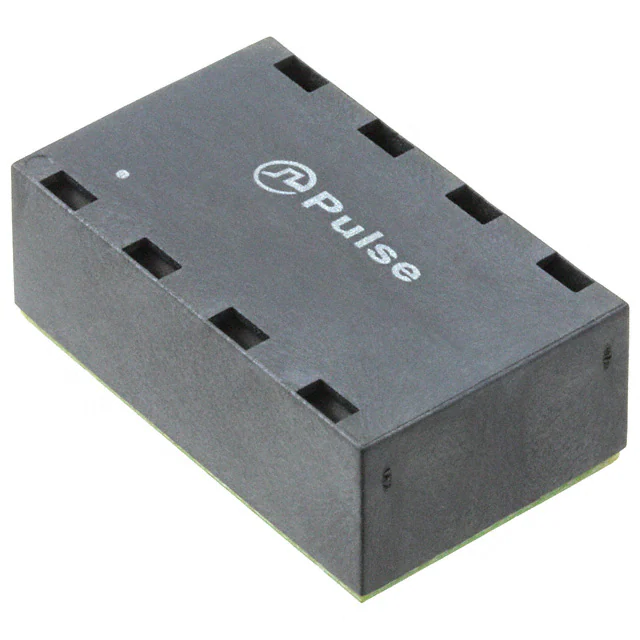

HX5401NLXFRMR MODL 4PORT POE GIGABIT Pulse Electronics |
440 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | -40°C ~ 85°C | - | - |
|
|
HX5400NLTXFRMR MODULE QUAD 1GP 1:1 BGA Pulse Electronics |
288 |
|
Datasheet |
HX5400NLT | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|

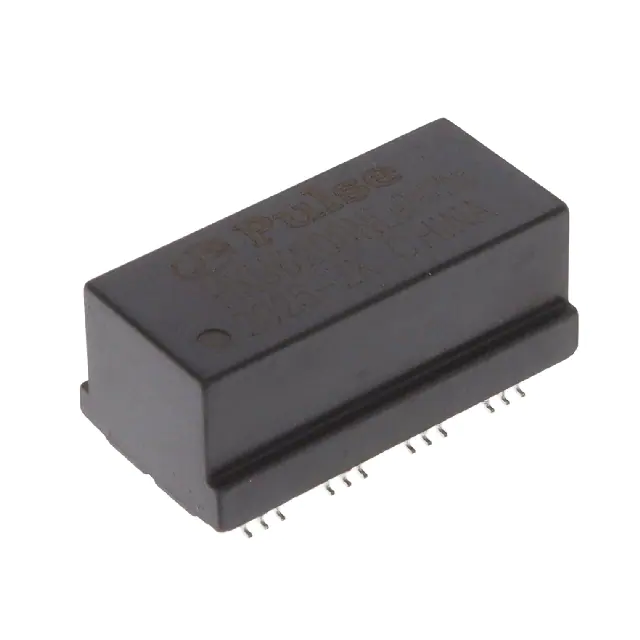

HXU6200NLTXFRMR MAGNETIC 1PORT 1GIG MED Pulse Electronics |
268 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.132" L x 0.600" W (28.75mm x 15.24mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
PH9085.011NLTIND PWR 3.0X3.0X1.2 1.02MH SMT Pulse Electronics |
5,484 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | - | - | - |
