Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2001NLPULSE XFMR 1:1 403UH Pulse Electronics |
1,916 |
|
Datasheet |
- | Tube | Active | - | 403µH | 12VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|
PA3342NLPULSE XFMR 90UH Pulse Electronics |
540 |
|
Datasheet |
- | Tray | Active | - | 90µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA2467NLPULSE XFMR 37UH Pulse Electronics |
37,761 |
|
Datasheet |
- | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

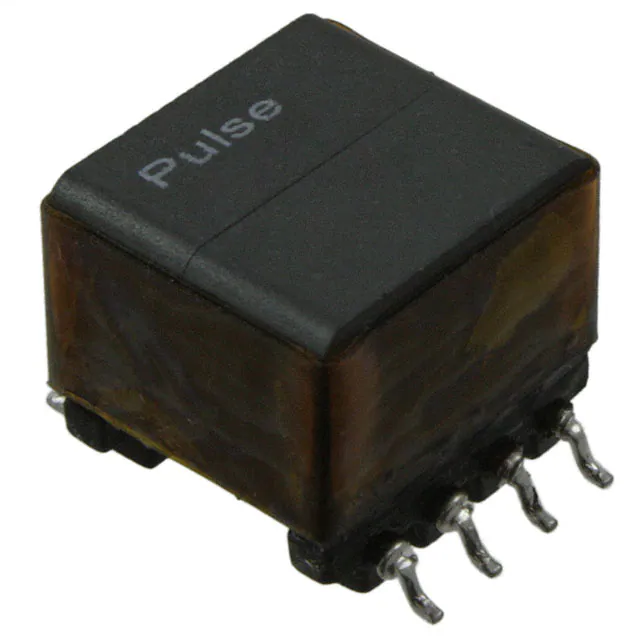

PA1277NLTXFRMR 3.3V 10W 20.4UH POE EP10 Pulse Electronics |
1,485 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | 1:0.222:0.555 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
PH9384.043NLTXFMR GATE-DR 4CT:3CT SM NPB Pulse Electronics |
814 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2180.034NLTXFMR GATE-DR 3CT:4CT SM NPB Pulse Electronics |
715 |
|
Datasheet |
PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3CT:4CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PH9185.012NLTRANSFORMER 450UH 1:2 SMD Pulse Electronics |
4,454 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

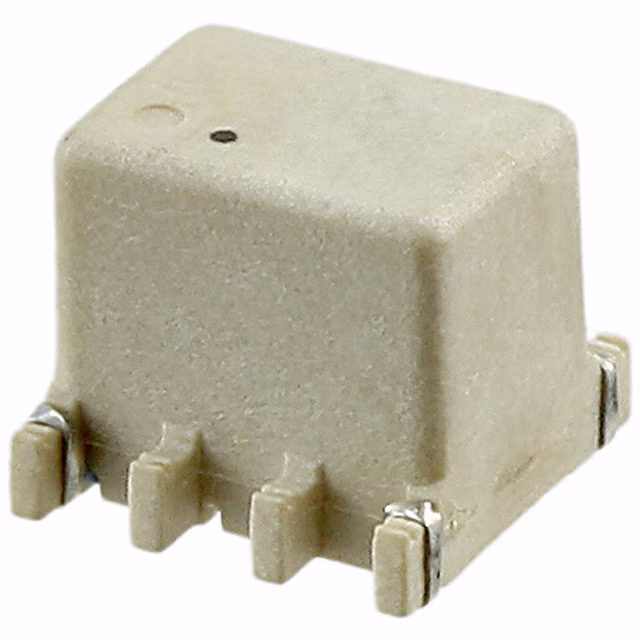

PA2007NLTPULSE XFMR 1:1 1.49MH Pulse Electronics |
1,081 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.49mH | 53VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA0173NLPULSE XFMR 1:1:1 980UH Pulse Electronics |
1,045 |
|
Datasheet |
- | Tube | Active | - | 980µH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|

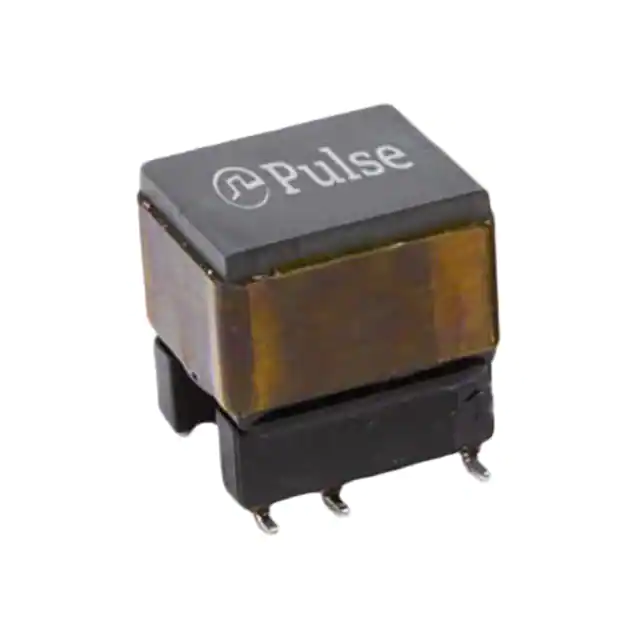

PH9572.111NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
1,081 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 1:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
