Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX1259NLTXFRMR MODULE 4PORT 1:1 10/100 Pulse Electronics |
3,702 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
H1259NLMODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics |
1,006 |
|
Datasheet |
- | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
HX5026NLTMDL SIN 1GP 1:1 SMT TR Pulse Electronics |
4,924 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

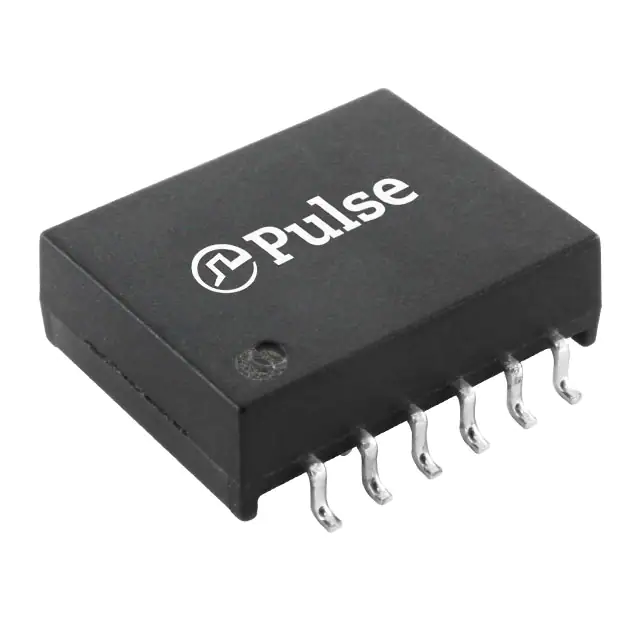

HMU2102NLXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
4,201 |
|
Datasheet |
- | Tube | Obsolete | - | 150µH | - | - | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.192" (4.88mm) | - | - | - |
|
|
GU4229R LFMDL 1G DIP QUAD PORTS N/A Pulse Electronics |
3,249 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.098" (2.50mm) | 0°C ~ 70°C | - | - |
|
|
HDX8006NLTMDL SIN HDBT 1:1 POEPP SMT TR Pulse Electronics |
4,408 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
H1062TPULSE XFMR 1CT: 1CT TX 1:1 RX Pulse Electronics |
4,749 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT: 1CT Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
T2SD02RMDL 10G DUAL PORT N/A Pulse Electronics |
2,647 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 90°C | - | - |
|
|
T2SD02RTMDL 10G DUAL PORT 4PAIR POE 60W Pulse Electronics |
2,732 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 90°C | - | - |
|
|
T2SD02RVMDL 10G DUAL PORT 4PAIR POE 90W Pulse Electronics |
4,721 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 105°C | - | - |
