Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

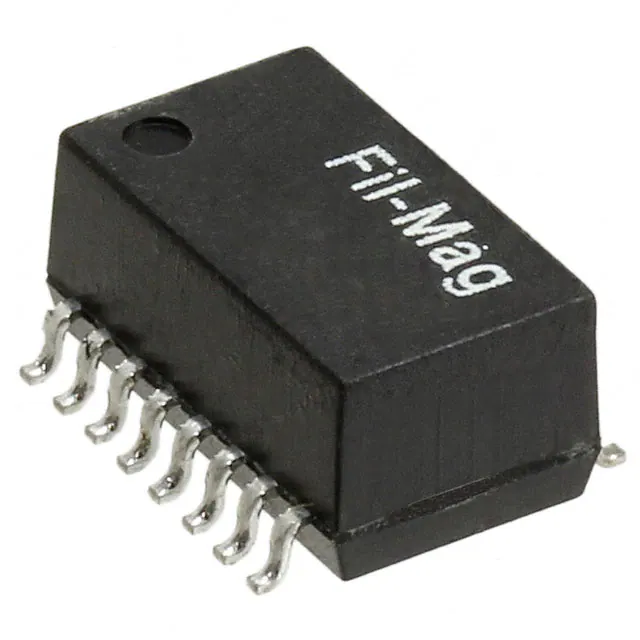

23Z467SM-TPULSE XFMR 1CT:2CT TX 1CT:1CT RX Pulse Electronics |
2,665 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
H5019FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics |
1,079 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
EX2001TPULSE XFMR Pulse Electronics |
4,404 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.930" L x 0.390" W (23.62mm x 9.91mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
T1231QNLTXFMR OCT T1 1:2.4 1:1 OH Pulse Electronics |
1,782 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HM5149NLTMDL,SIN,1GD,1:1,SMT Pulse Electronics |
3,892 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.410" W (17.78mm x 10.41mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
T1231QNLXFMR OCT T1 1:2.4 1:1 OH Pulse Electronics |
2,359 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX4019NLTMDL SIN 2.5GPP 1:1 3KV SMT TR Pulse Electronics |
4,594 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
QGS6015RSMDL 5G DUAL PORT 4PAIR POE 60W Pulse Electronics |
3,972 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
|
QGS2015RSMDL 5G DUAL PORT N/A Pulse Electronics |
1,080 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
HX6096FNLTPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
3,807 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
