Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1200NLMODULE TRANSFRMR DUAL LAN 10/100 Pulse Electronics |
2,660 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

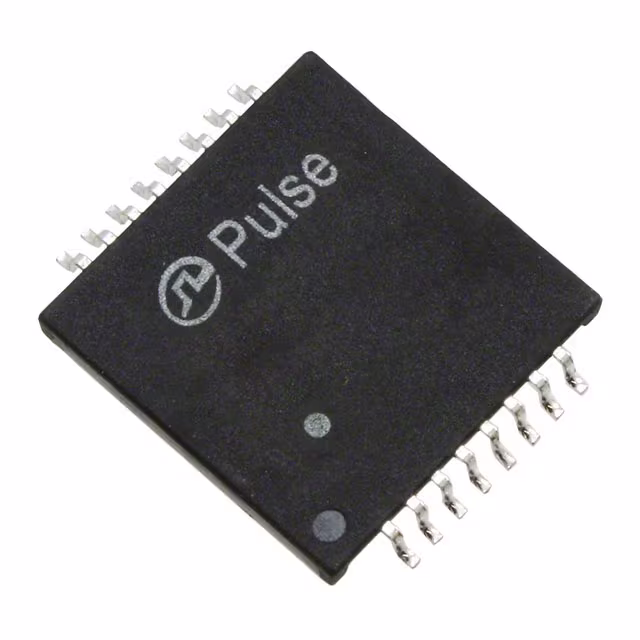

H0009NLMODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics |
2,179 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H0019NLMODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics |
1,914 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|

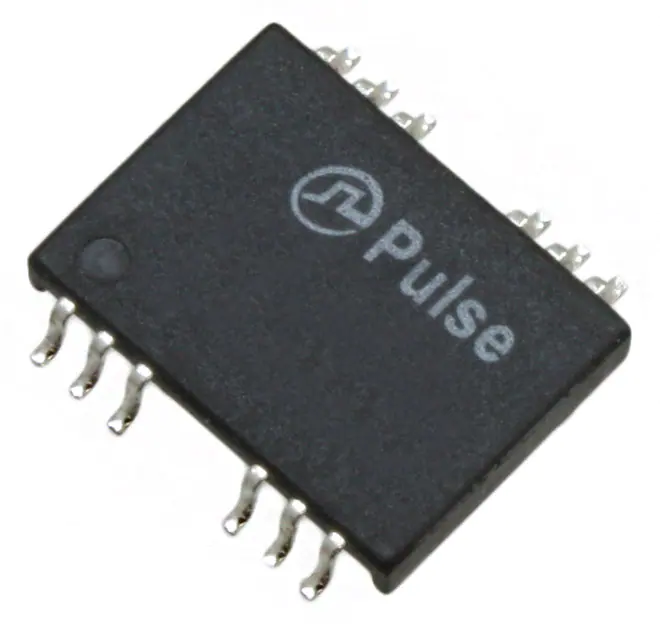

H0022NLMODULE PC CARD SNGL LAN 12PCMCIA Pulse Electronics |
2,034 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.465" L x 0.340" W (11.81mm x 8.63mm) | 0.085" (2.16mm) | 0°C ~ 70°C | - | - |
|
|
H1060NLMODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics |
3,427 |
|
Datasheet |
- | Bulk | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1174NLMODULE XFRMR DUAL ETHER LAN 24P Pulse Electronics |
2,036 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.512" L x 0.500" W (13.08mm x 12.70mm) | 0.155" (3.93mm) | 0°C ~ 70°C | - | - |
|
H2005ANLMODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics |
2,898 |
|
Datasheet |
- | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
|
H2008NLMODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics |
3,381 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
H5012NLMODULE DL GIGABIT ETHER LAN 48P Pulse Electronics |
3,215 |
|
Datasheet |
- | Bulk | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA1672NLPULSE XFMR 1:4 7.75UH Pulse Electronics |
4,930 |
|
Datasheet |
- | - | Obsolete | - | 7.75µH | - | 1:4 | Surface Mount | 0.930" L x 0.860" W (23.62mm x 21.84mm) | 0.450" (11.43mm) | -40°C ~ 130°C | - | - |
