Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T3021NLTRANSFORMER 1500VRMS DUAL SMD Pulse Electronics |
1,943 |
|
Datasheet |
- | Tube | Obsolete | T3/E3 (Dual) | 40µH | - | 2CT:1 Transmitter, 2CT:1 Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TX1680NLTRANSFORMER 1500VRMS 1CT:2 1:2CT Pulse Electronics |
2,673 |
|
Datasheet |
- | Tray | Active | T1/E1 (16) | 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.458" (11.63mm) | -40°C ~ 85°C | - | - |
|
|
TX1681NLTRANSFORMER 1500VRMS 1CT:1 Pulse Electronics |
2,537 |
|
Datasheet |
- | Tray | Active | T1/E1 (16) | 1.2mH | - | 1:CT Transmitter, 1CT:1 Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.458" (11.63mm) | -40°C ~ 85°C | - | - |
|
|
TX9031NLTRANSFORMER 1500VRMS 1CT:2.4 SMD Pulse Electronics |
3,668 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1CT:2.4 Transmitter, 1:1CT Receiver | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.315" (8.00mm) | - | - | - |
|

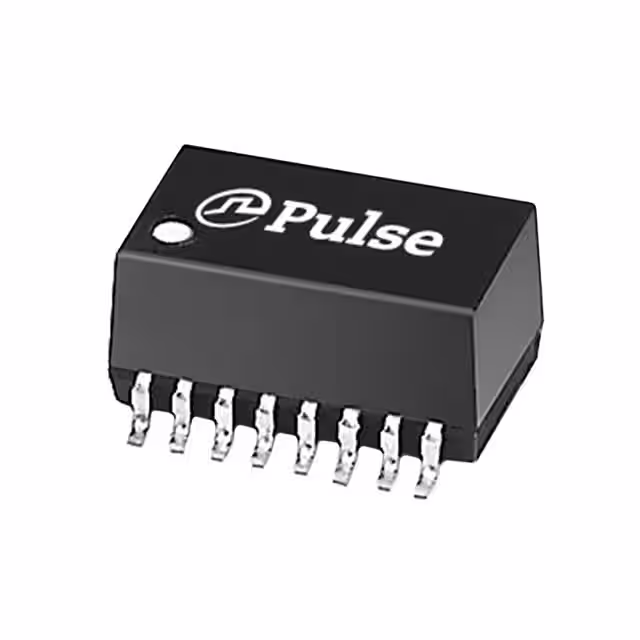

ST7032QNLTPULSE XFMR 1:1 TX 1:1 RX 67UH Pulse Electronics |
1,730 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 67µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
ST7033QNLTPULSE XFMR 1:1 TX 1:1 RX 90UH Pulse Electronics |
4,644 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 90µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
TX1281TPULSE XFMR 1CT:1 2MH Pulse Electronics |
1,030 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 2mH | - | 1CT:1 | Surface Mount | 0.220" L x 0.230" W (5.59mm x 5.84mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
H1164TPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,219 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
HX1148TPULSE XFMR 1CT:1 TX 1CT:1CT RX Pulse Electronics |
3,004 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
HX1236TPULSE XFMR 1:1 TX 1:1 RX Pulse Electronics |
3,364 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
