Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.00xNL-Series.jpg)
|
PA3855.006NLPULSE XFMR 21UH Pulse Electronics |
1,355 |
|
Datasheet |
- | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
HM2106NLXFMR MODULE AECQ BATT MNGT Pulse Electronics |
873 |
|
Datasheet |
- | Tube | Active | - | 135µH | - | - | Surface Mount | 0.335" L x 0.663" W (8.50mm x 16.84mm) | 0.226" (5.75mm) | - | - | - |
|

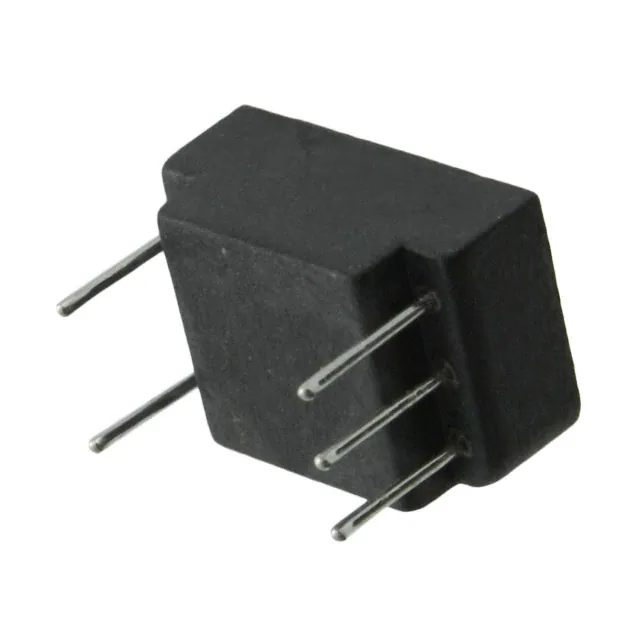

PE-65351NLXFRMR T1/CEPT/ISDN-PRI 1:2CT T/H Pulse Electronics |
1,124 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
HM2146NLXFMR SGL 1CT:1CT 150UH 3KV Pulse Electronics |
438 |
|
Datasheet |
- | Tube | Active | - | 150µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
HM2147NLXFMR SGL 1CT:1CT 500UH 4.3KV Pulse Electronics |
297 |
|
Datasheet |
- | Tube | Active | - | 500µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|

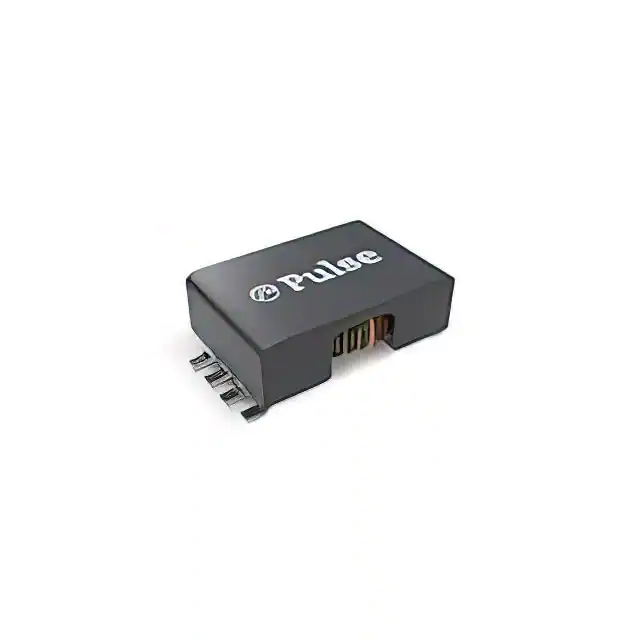

BMU6201NLTRANSFORMER 5UH 1:1:1 500V SMT Pulse Electronics |
526 |
|
Datasheet |
- | Tube | Active | - | 5µH | - | 1:1:1 | Surface Mount | 0.295" L x 0.198" W (7.49mm x 5.03mm) | 0.155" (3.94mm) | -40°C ~ 125°C | - | - |
|
PH9185.043NLTTRANSFORMER 1260UH 4:3 SMD Pulse Electronics |
357 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PA3855.005NLPULSE XFMR 21UH Pulse Electronics |
1,324 |
|
Datasheet |
- | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
E2458NLXFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics |
560 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|

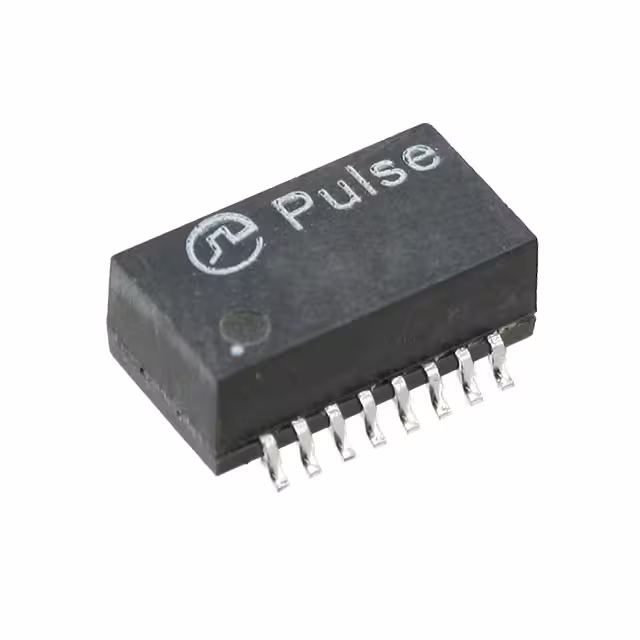

PE-65745NLXFRMR LAN ISOL 1CT:1.414CT 10B-T Pulse Electronics |
1,023 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
