Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1137NLTXFRMR 1CT:2.42CT/1CT:2.42CT SMD Pulse Electronics |
600 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

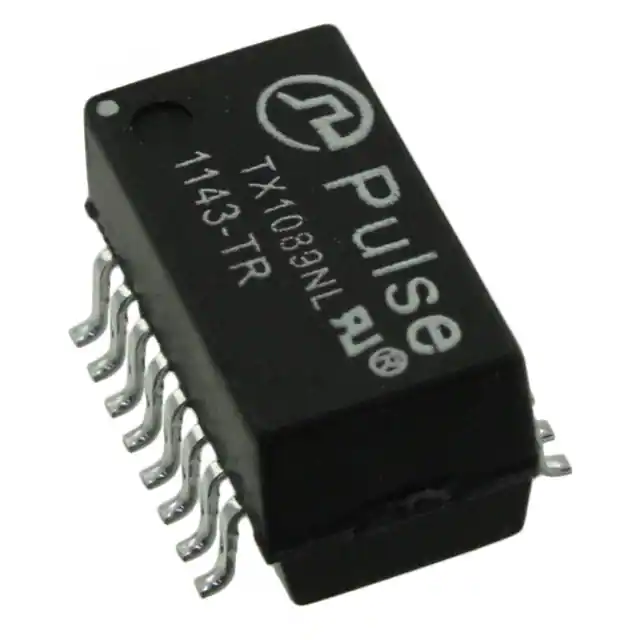

TX1089NLTXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH Pulse Electronics |
232 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
EX2024FNLPULSE XFMR 1CT:2.5CT 1CT:1CT Pulse Electronics |
1,396 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
T3002NLTRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics |
695 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

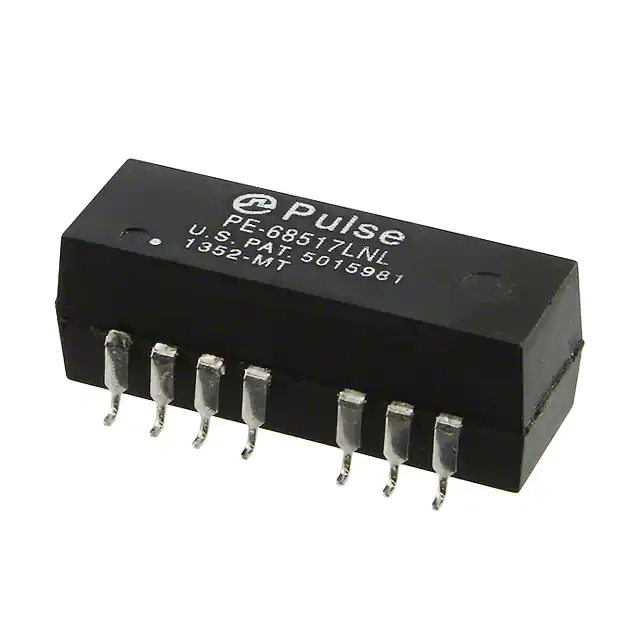

PE-68517LNLXFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics |
255 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|

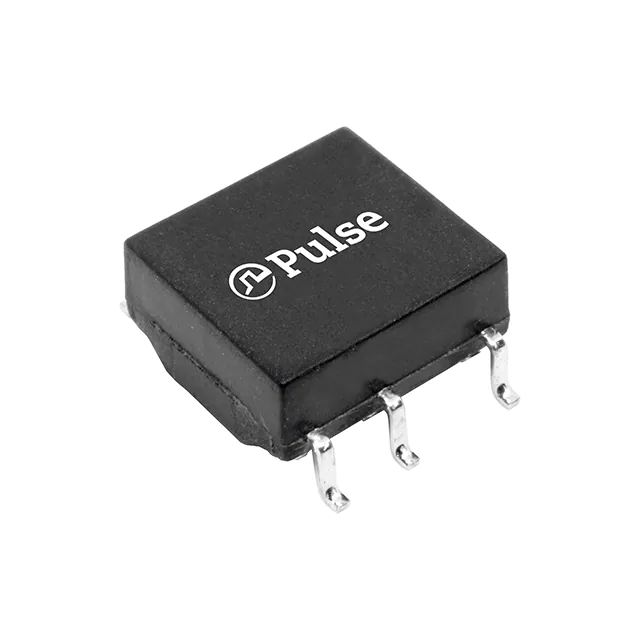

HM1236NLXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
153 |
|
Datasheet |
- | Tube | Active | - | 500µH | - | 1:1 | Surface Mount | 0.340" L x 0.430" W (8.64mm x 10.92mm) | 0.160" (4.06mm) | - | - | - |
|

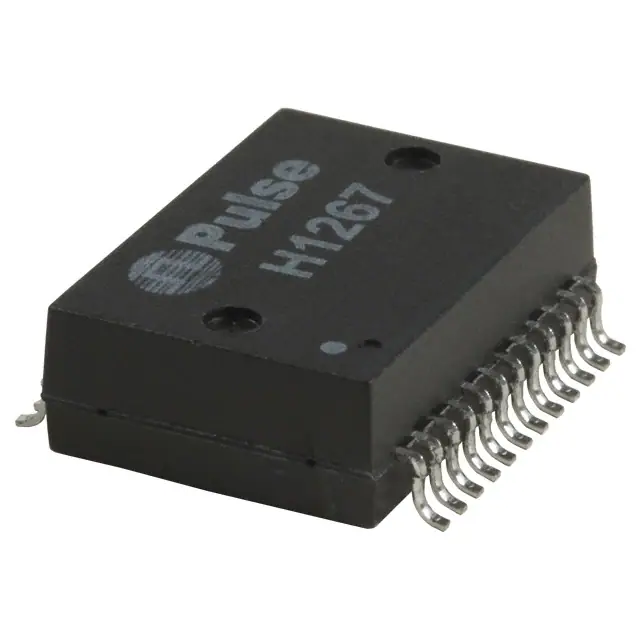

H1267NLTXFRMR 1PORT 1:1 10/100 SMD Pulse Electronics |
994 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

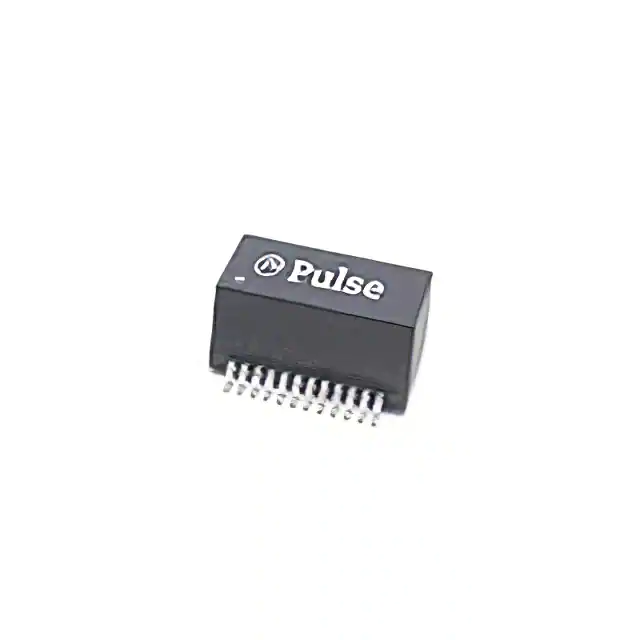

HX5164NLTTRANS MOD 1G 70W POE SMD Pulse Electronics |
964 |
|
Datasheet |
HX5164NL | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HX6164NLTTRANS MOD 1G 70W POE SMD Pulse Electronics |
870 |
|
Datasheet |
HX6164NL | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 120µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
HX6164NLTRANS MOD 1G 70W POE SMD Pulse Electronics |
500 |
|
Datasheet |
HX6164NL | Tube | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 120µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
