Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

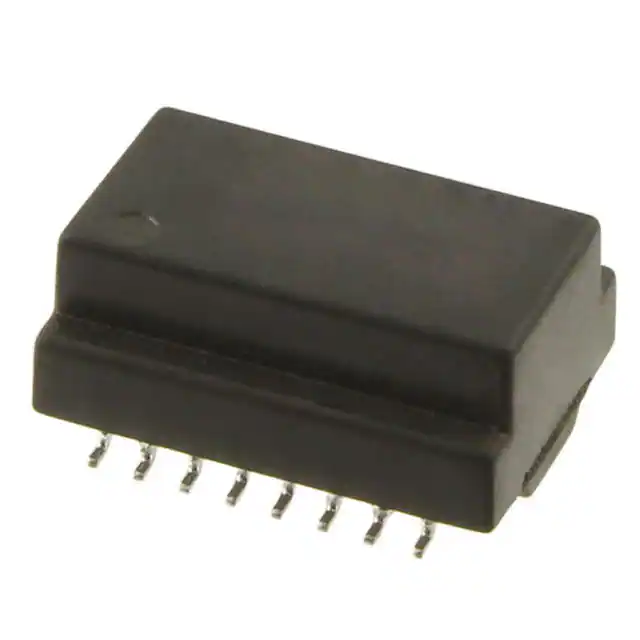

H1260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,800 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
PA2369NLTPULSE XFMR 37UH Pulse Electronics |
3,112 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

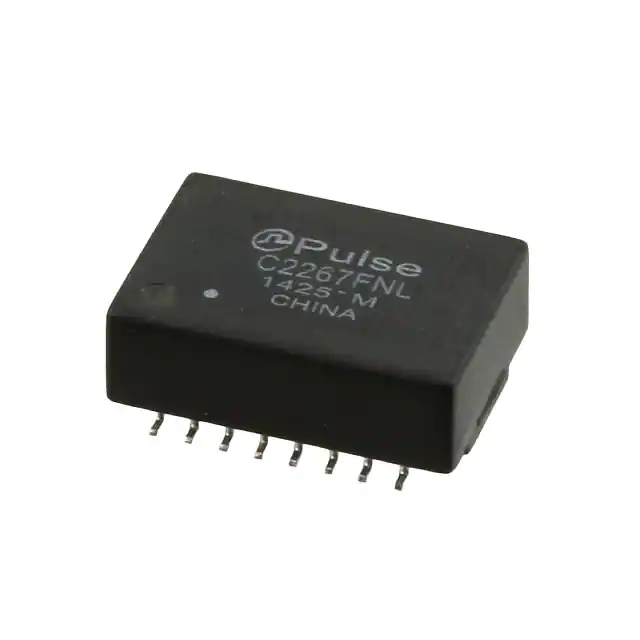

C2267FNLPULSE XFMR 1:1 15UH Pulse Electronics |
1,453 |
|
Datasheet |
- | Tube | Active | - | 15µH | - | 1:1 | Surface Mount | 0.386" L x 0.354" W (9.80mm x 9.00mm) | 0.425" (10.80mm) | 0°C ~ 70°C | - | - |
|

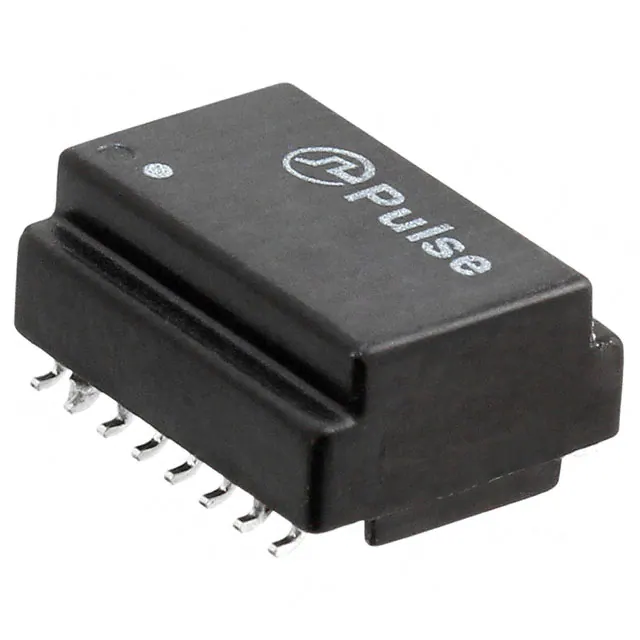

HX2260FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
2,243 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

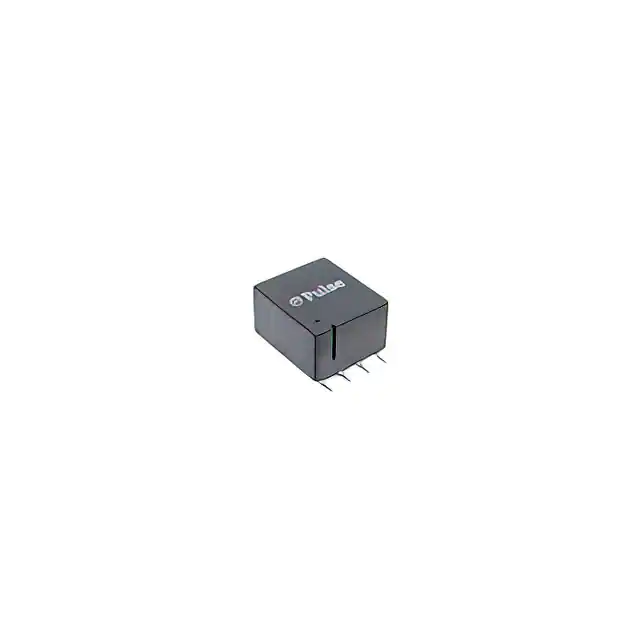

BX6152NLTRANSFORMER 7UH 1:1:2 3KV SMT Pulse Electronics |
286 |
|
Datasheet |
- | Tube | Active | - | 7µH | - | 1:1:2 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
|
BX6153NLTRANSFORMER 7UH 1:1 4KV SMT Pulse Electronics |
149 |
|
Datasheet |
- | Tube | Active | - | 7µH | - | 1:1 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|

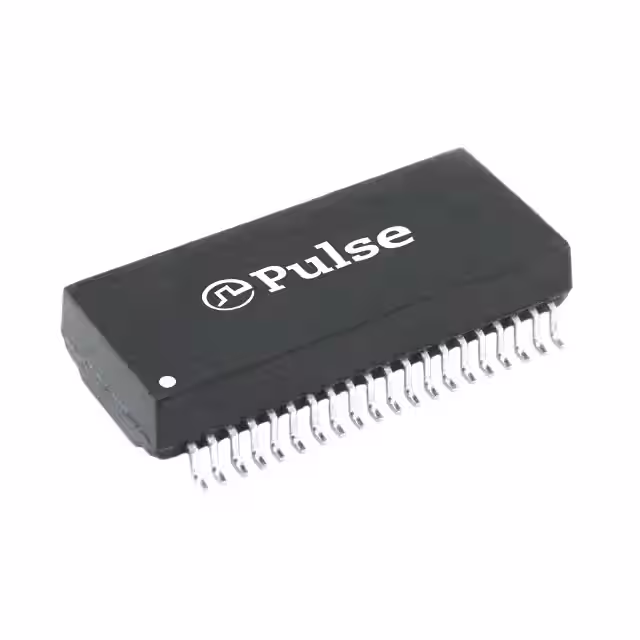

HX1344NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
408 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.106" L x 0.480" W (28.10mm x 12.20mm) | 0.225" (5.72mm) | - | - | - |
|

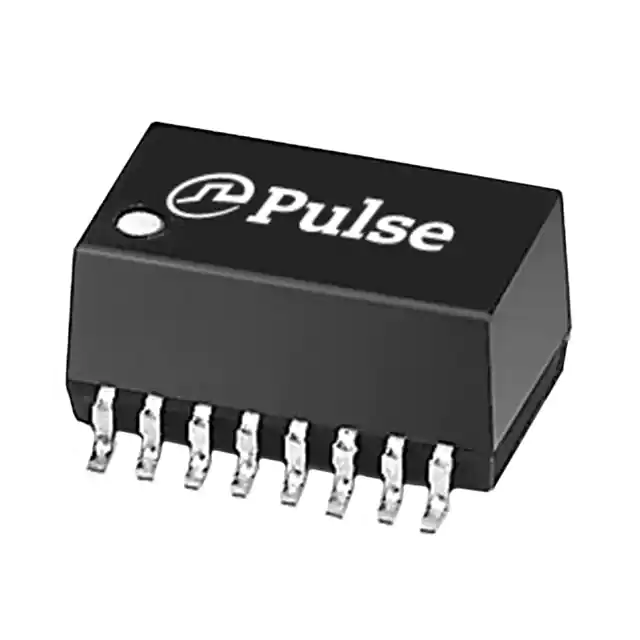

23Z356SMQNLTTRANSFORMER 10BASE-T LAN 16SOIC Pulse Electronics |
627 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

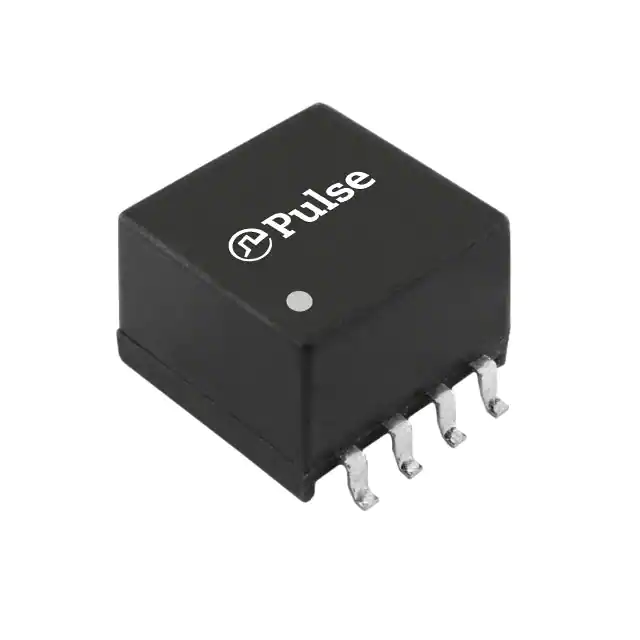

PE-65848NLXFRMR 1CS:1CS FOR ECHELON/NEURON Pulse Electronics |
619 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.475" L x 0.475" W (12.06mm x 12.06mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
BM6154NLTTRANSFORMER 8UH 1:1:1 3KV SMT Pulse Electronics |
1,749 |
|
Datasheet |
BM615xNL | Tape & Reel (TR) | Active | - | 8µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
