Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1735NLPULSE XFMR 28.5UH Pulse Electronics |
107 |
|
Datasheet |
- | Tray | Active | - | 28.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

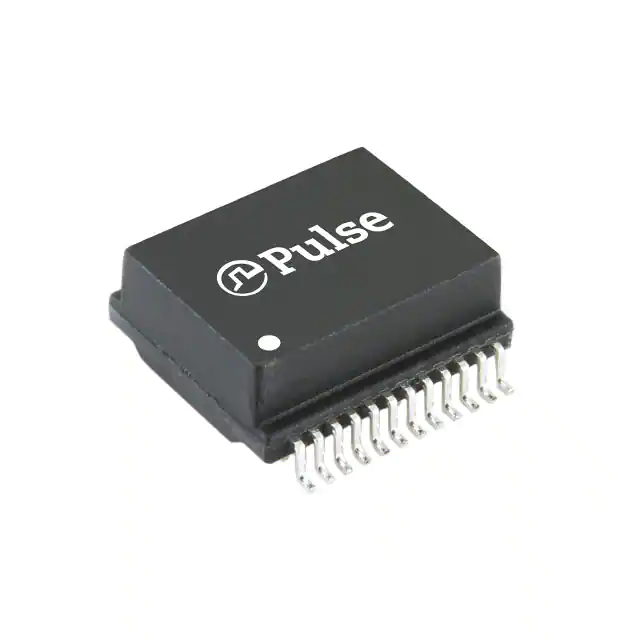

HD8008NLMOD,SIN,HDBT,1:1, SMD, NPB Pulse Electronics |
7,725 |
|
Datasheet |
- | Tube | Active | HDBase-T | 100µH | - | 1CT:1CT | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|

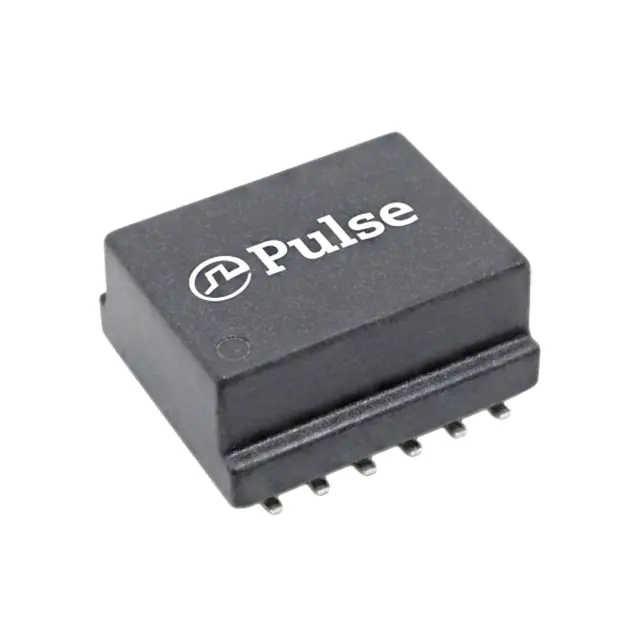

HX1333NLXFRMR MODULE 100B-TX 2 CH SMT Pulse Electronics |
843 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | - | - | - |
|

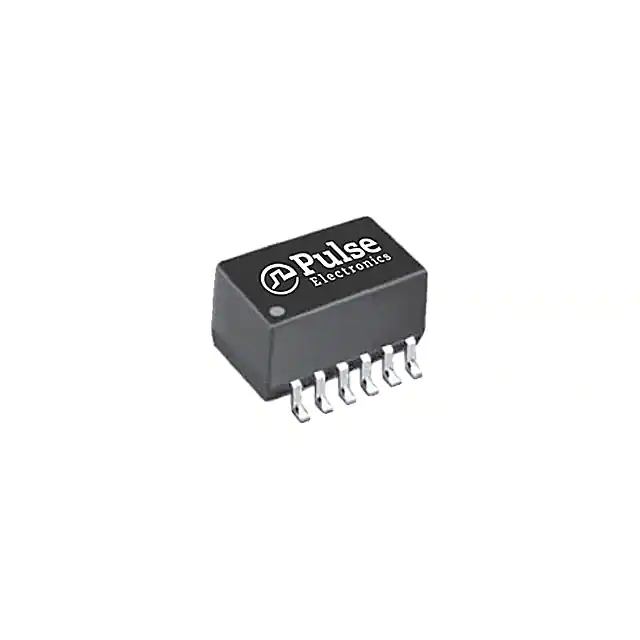

T1146NLTXFRMR 1:2/2.4 / 1:0.79/1 1/1MH Pulse Electronics |
1,200 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1:2/2.4, 1:0.79/1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T3001NLTRANSFORMER TELECOM SINGLE T3/E4 Pulse Electronics |
370 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

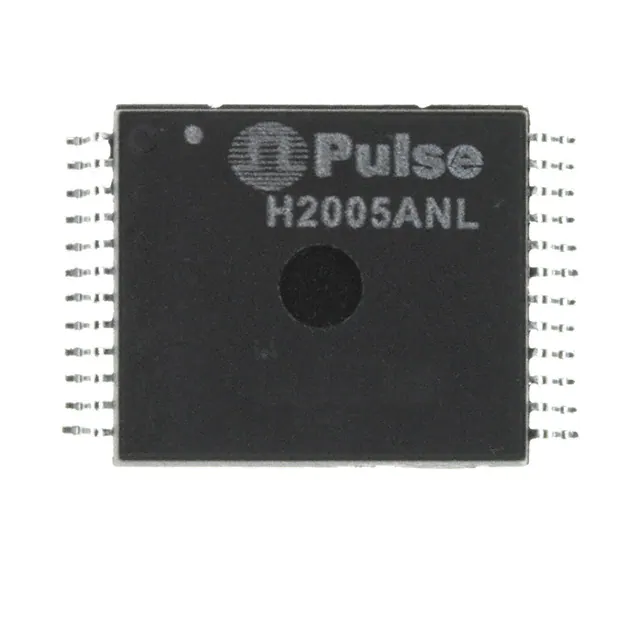

H2005ANLTXFRMR MAGNT MOD 2PORT POE 10/100 Pulse Electronics |
1,500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
PE-65834NLXFRMR T1/CEPT/ISDN 1:1 1.2MH T/H Pulse Electronics |
290 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1 | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
PE-65848NLTXFRMR 1CS:1CS FOR ECHELON/NEURON Pulse Electronics |
407 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.475" L x 0.475" W (12.06mm x 12.06mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

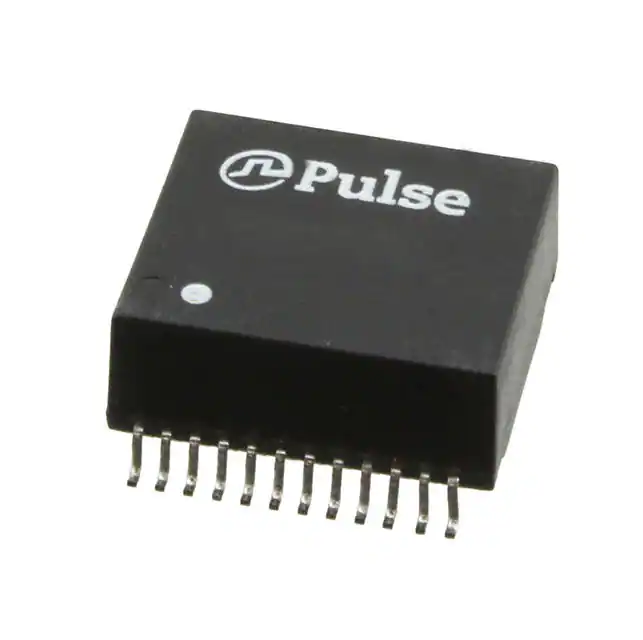

HX5181NLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
2,186 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
HX5181NLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
267 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
