Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1837NLPULSE XFMR 4.5UH Pulse Electronics |
2,586 |
|
Datasheet |
- | Tray | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H5079NLMODULE MINI-MAG 1PORT 1000BASE-T Pulse Electronics |
2,985 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785" L x 0.551" W (19.94mm x 14.00mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|

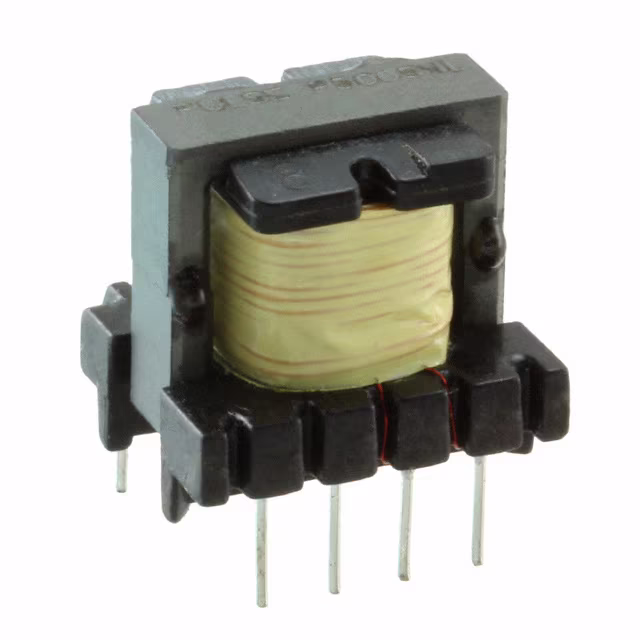

P5005NLPULSE XFMR 1:0.1:0.1 Pulse Electronics |
3,269 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
.00xNL-Series.jpg)
|
PA3855.002NLPULSE XFMR 48UH Pulse Electronics |
2,018 |
|
Datasheet |
- | Tray | Active | - | 48µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
BX6158NLTRANSFORMER 20UH 1:1:1 3KV SMT Pulse Electronics |
2,350 |
|
Datasheet |
- | Tube | Active | - | 20µH | - | 1:1:1 | Surface Mount | 0.445" L x 0.411" W (11.31mm x 10.43mm) | 0.287" (7.30mm) | -40°C ~ 125°C | - | - |
|

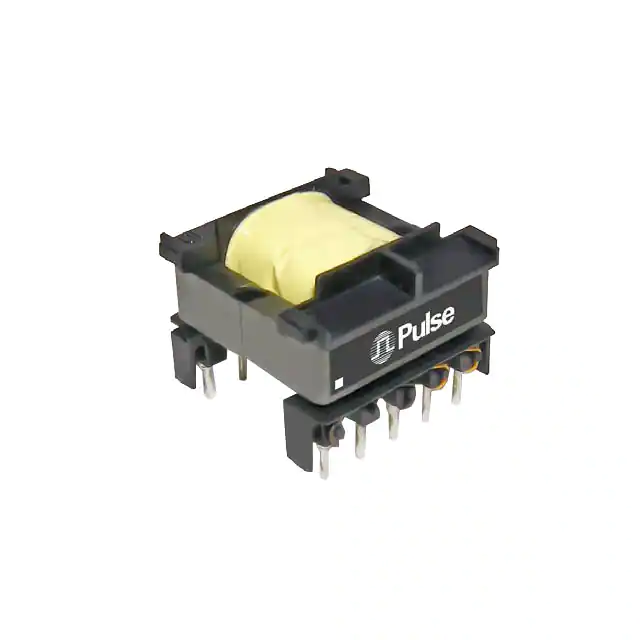

PA1297NLPULSE XFMR 380UH Pulse Electronics |
1,862 |
|
Datasheet |
- | Tray | Active | - | 380µH | - | - | Through Hole | 1.100" L x 1.150" W (27.94mm x 29.21mm) | 0.820" (20.82mm) | -40°C ~ 130°C | - | - |
|
|
PA1837NLTPULSE XFMR 4.5UH Pulse Electronics |
3,530 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H5007EFNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,124 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
H6096FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,410 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
HX6062FNLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
4,449 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
