Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H5014NLMODULE DL GIGABIT ETHER LAN 48P Pulse Electronics |
2,858 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
H5020NLTRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics |
2,980 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | 0°C ~ 70°C | - | - |
|

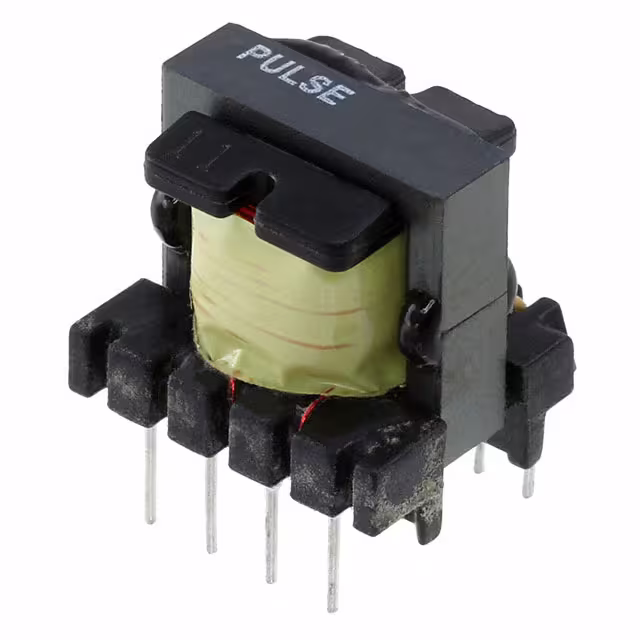

P5008NLPULSE XFMR 1:0.07:0.07 Pulse Electronics |
2,430 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|

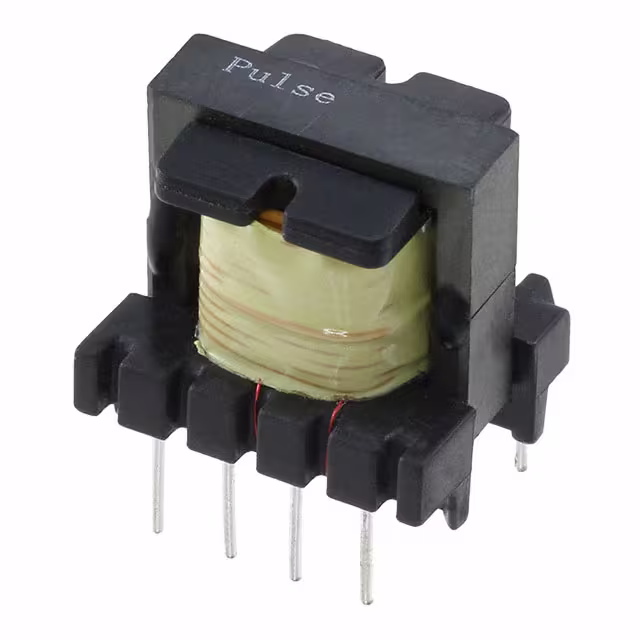

P5004NLPULSE XFMR 1:0.07:0.07 Pulse Electronics |
2,410 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9185.013NLTRANSFORMER 200UH 1:3 SMD Pulse Electronics |
4,820 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

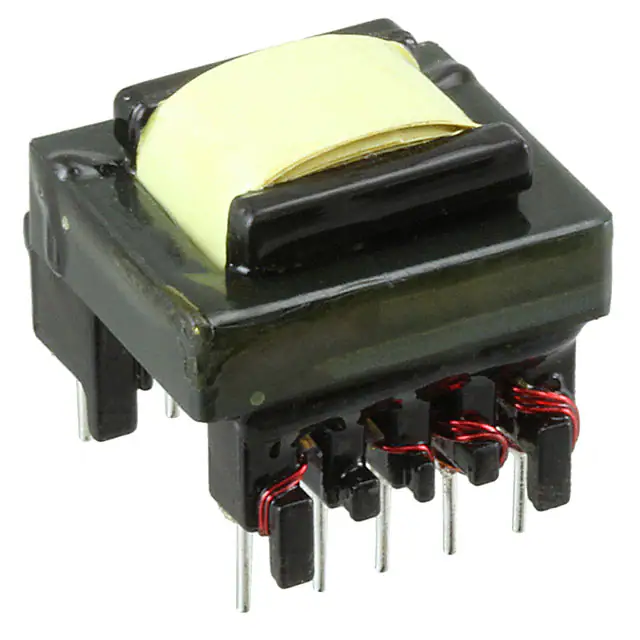

PA2653NLPULSE XFMR 910UH Pulse Electronics |
3,759 |
|
Datasheet |
- | Tray | Active | - | 910µH | - | - | Through Hole | 0.920" L x 0.960" W (23.37mm x 24.38mm) | 0.810" (20.57mm) | -40°C ~ 130°C | - | - |
|
HX1217NLTPULSE XFMR 1:1 TX 1:1 RX 350UH Pulse Electronics |
4,618 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
E4001NLTXFRMR LAN ISOL 10BASE-T 1:2 SMD Pulse Electronics |
4,257 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
HX1178NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
1,473 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

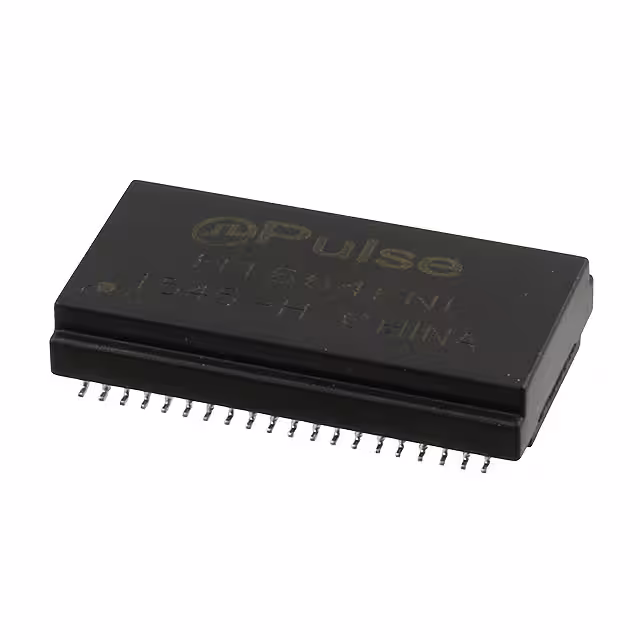

H1664FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
4,993 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
