Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8261J81ZQE22SWITCH PUSHBUTTON DPDT 6A 120V C&K |
4,304 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
8261J82ZQE22SWITCH PUSHBUTTON DPDT 6A 120V C&K |
2,843 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

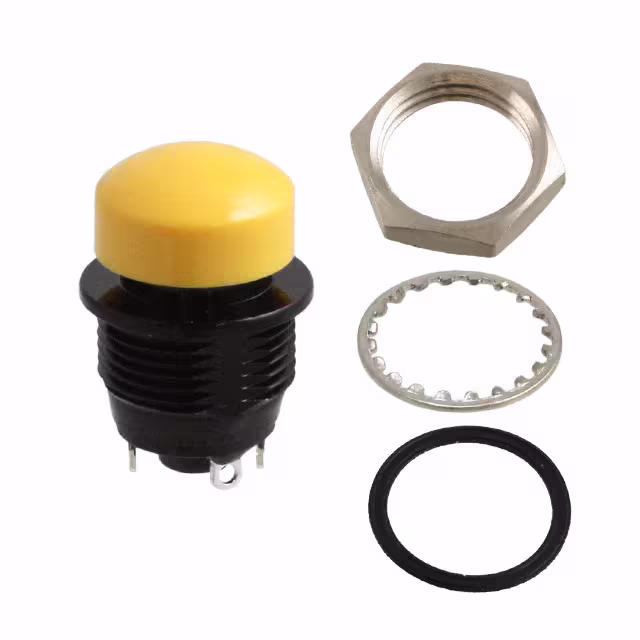

NP8S5T203QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
100 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

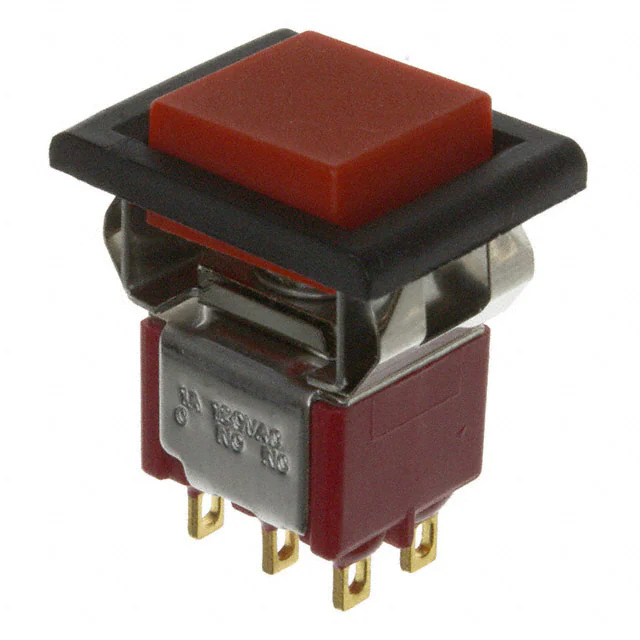

8221J81ZGE32SWITCH PUSHBUTTON DPDT 1A 120V C&K |
1,884 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

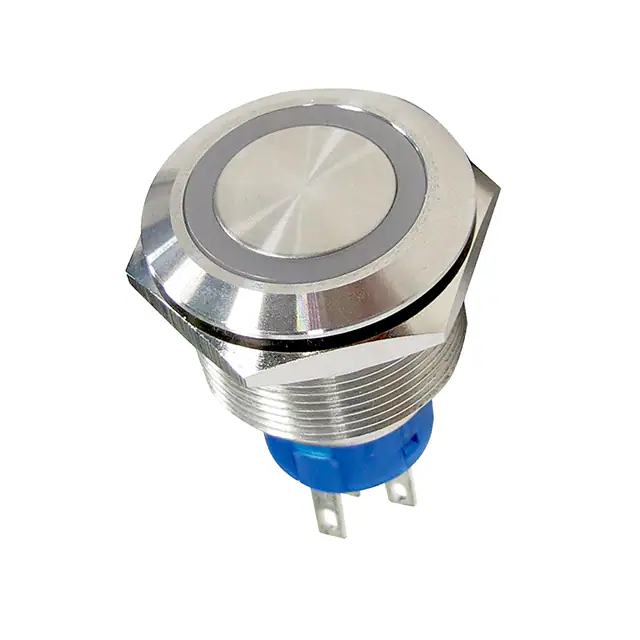

ATP22-SL3-312-B0SA-03QSWITCH ANTI-VANDAL 22MM SEALED S C&K |
4,883 |
|
Datasheet |
ATP22 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|

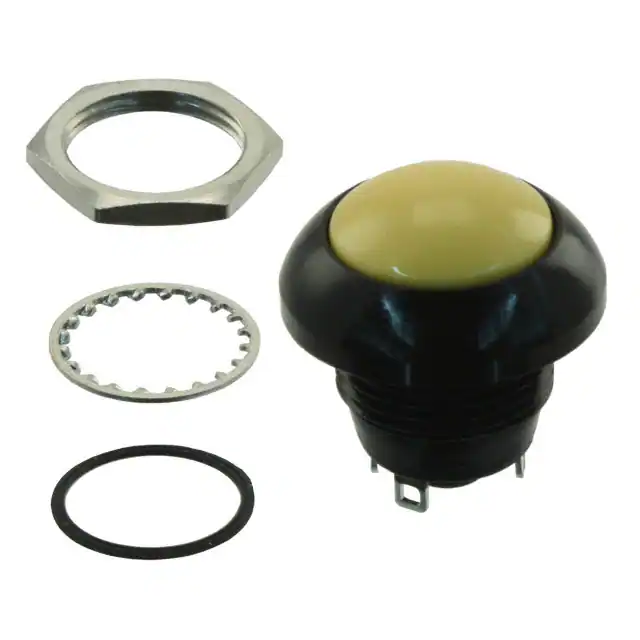

NP8S5D203QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
4,179 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

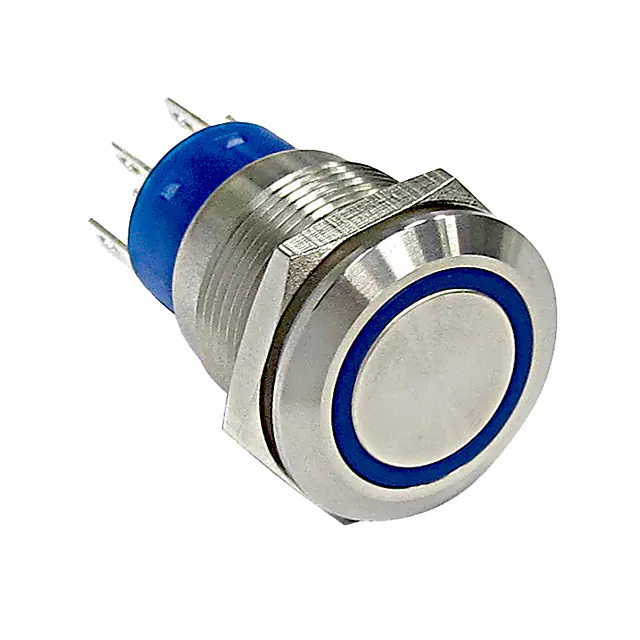

ATP19-SL1-512-B0SA-03QSWITCH ANTI-VANDAL 19MM SEALED S C&K |
2,975 |
|
Datasheet |
ATP19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
8161SHAV2BE2PUSHBUTTON C&K |
4,855 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
NE182AEESNP6AMPPUSHBUTTON C&K |
4,192 |
|
Datasheet |
NE18 | Bulk | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | - | - | - | - | PC Pin | Dust Proof | - | - | - |
|
NE18CTII2AEE4AMPPUSHBUTTON C&K |
1,202 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
