Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

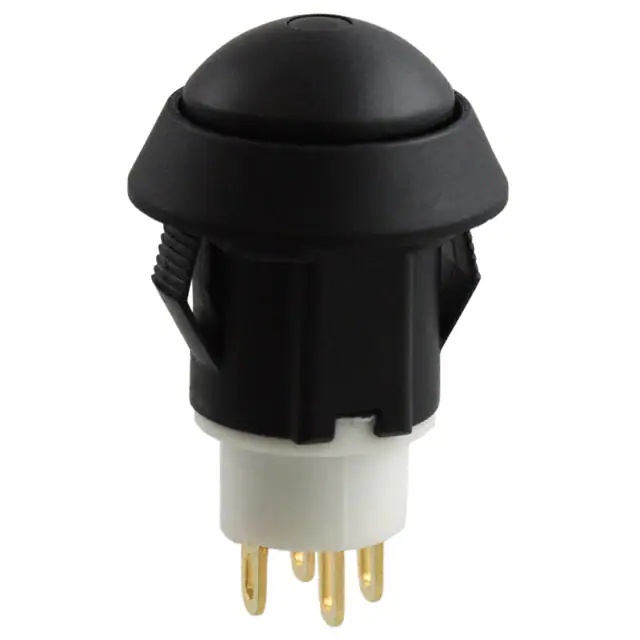

AP4D206SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,253 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

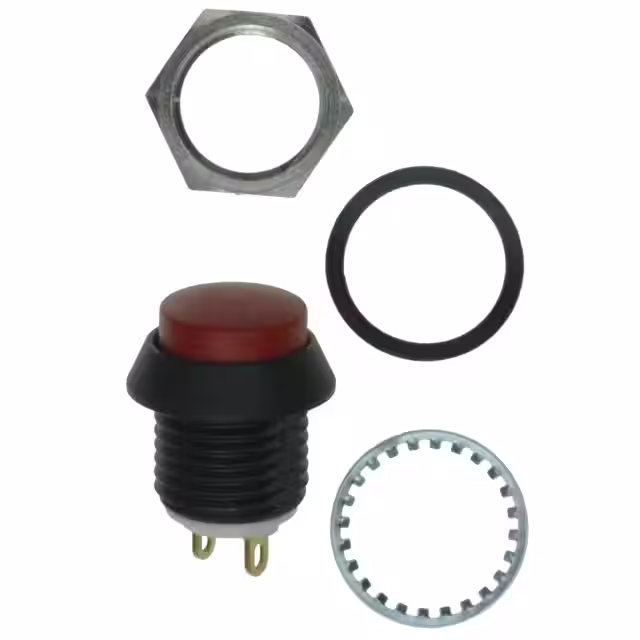

AP2E300TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,152 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
AP2D202TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
3,090 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

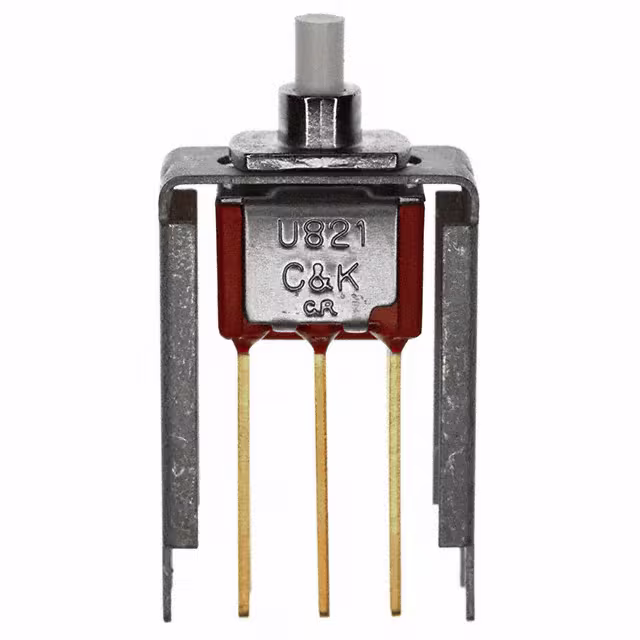

U821SD3V8GESWITCH PUSHBUTTON DPDT 1A 120V C&K |
4,616 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
PNP8E5D2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V C&K |
1,454 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
TP21SHZGESWITCH PUSH DPST-NO 1A 120V C&K |
4,377 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
SER2LBKRDGNAUEESWITCH PUSH SPDT 0.01A 24V C&K |
2,766 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
KLS22F036AQFLAT, DPDT, PCB, MOM, RED / GREE C&K |
3,847 |
|
Datasheet |
KLS | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 500mA (DC) | - | 25 V | Square, Button | No Marking | Clear | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
KLS22C036EGCONCAVE, DPDT, PCB, LOCK, RED / C&K |
3,689 |
|
Datasheet |
KLS | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 28 V | Square, Button | No Marking | Clear | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|

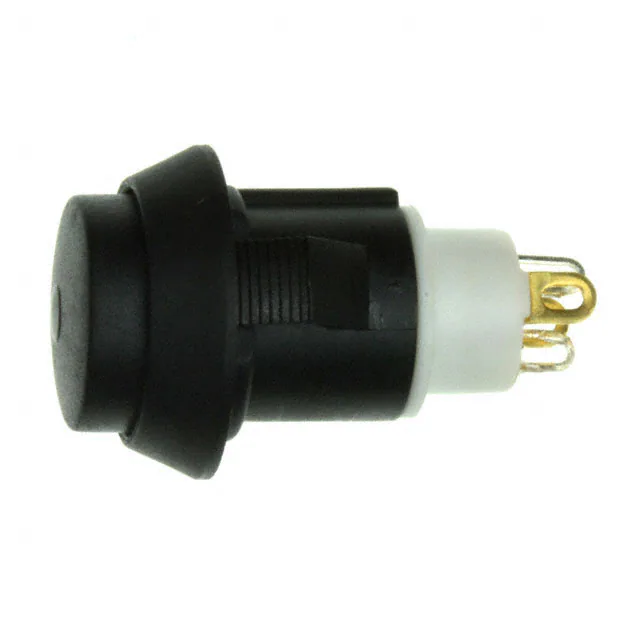

AP2E207SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,309 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | LED, Blue | 3.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
