Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP21SD1ABEPUSHBUTTON C&K |
2,961 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | - | - | -30°C ~ 85°C |
|
8168SHCGE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
2,273 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
PNP8S3D2C03QEPUSHBUTTON C&K |
4,090 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | - | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
8221SHZGEPUSHBUTTON C&K |
1,162 |
|
Datasheet |
8020 | Bag | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
F2UEESWITCH PUSH DPDT 0.5A 125V C&K |
3,023 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|

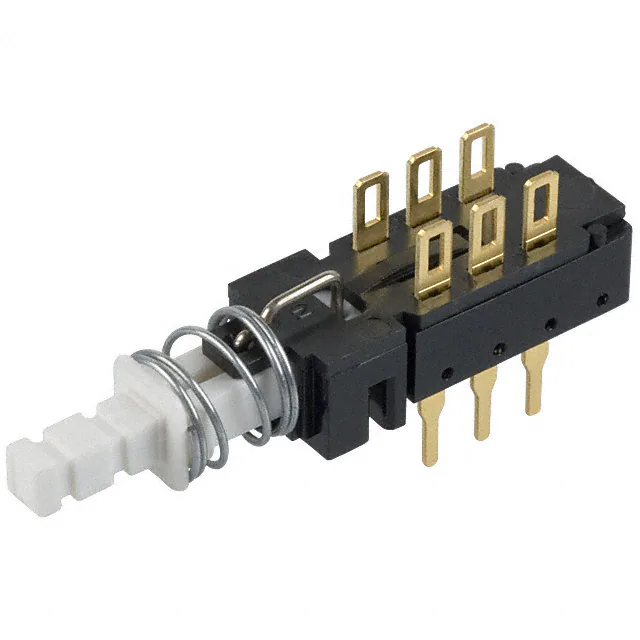

F2UEEAUSWITCH PUSH DPDT 0.04A 50V C&K |
3,118 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
8168SH9AV2BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
4,059 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
ZNE18 FA200 BK OG 2U EE LSWITCH PUSHBUTTON DPDT 6A 250V C&K |
3,820 |
|
Datasheet |
ZNE18 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 250 V | 100 V | Round, Button | No Marking | Orange | - | - | PC Pin | Dust Proof | - | Circular - 14.00mm Dia | - |
|

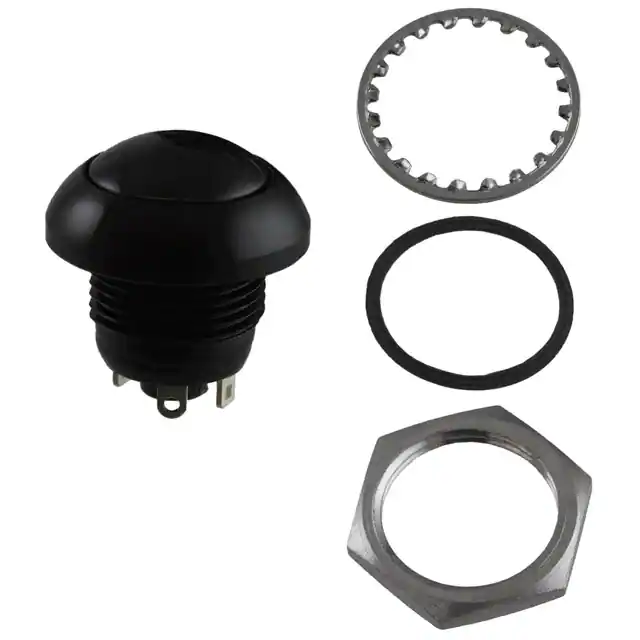

NP8S2D203QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
3,419 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

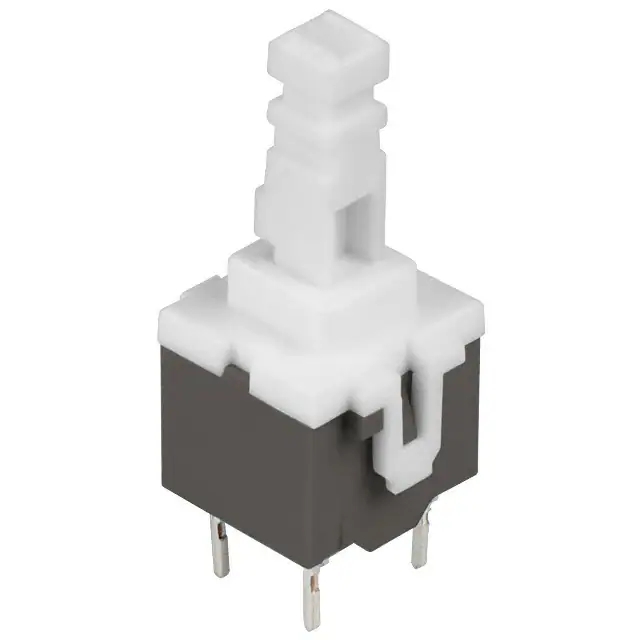

PVA1 OA H3 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V C&K |
2,956 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
