Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS24AVSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
2,766 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Jumper needed to achieve triple throw |
|

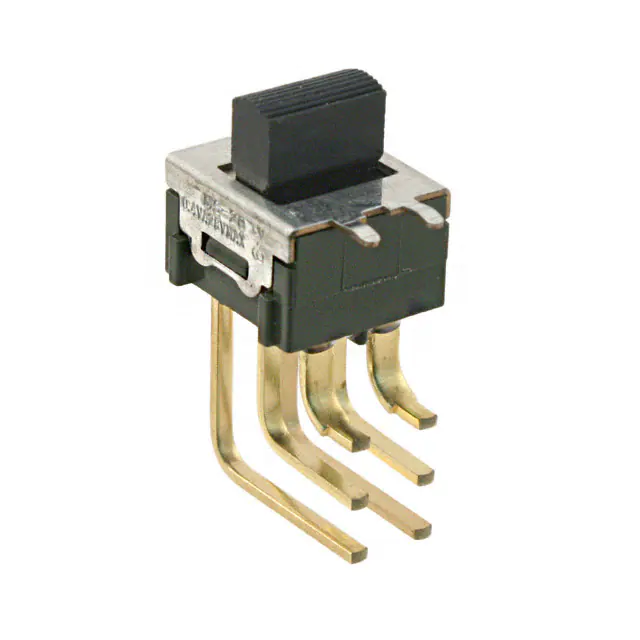

MS20BSG40SWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
450 |
|
Datasheet |
MS | Tray | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Jumper needed to achieve triple throw |
|
MS22BSW40SWITCH SLIDE DPDT 6A 125V NKK Switches |
1,227 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

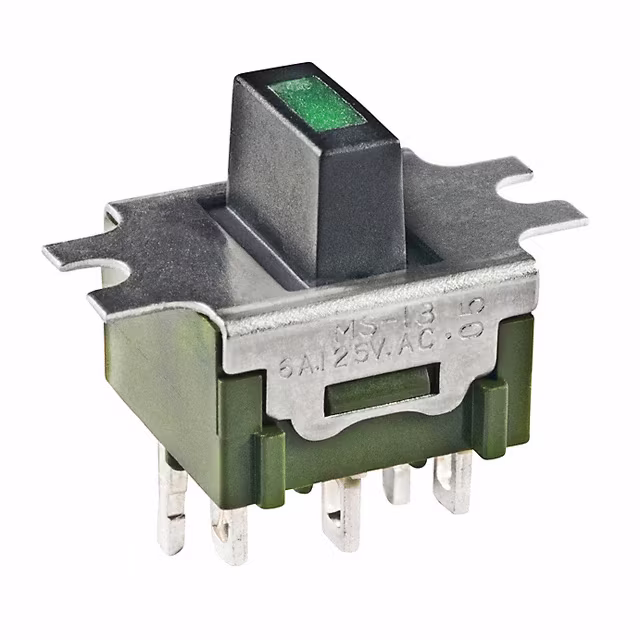

MS13LFW01FSWITCH SLIDE SPDT 6A 125V NKK Switches |
2,555 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

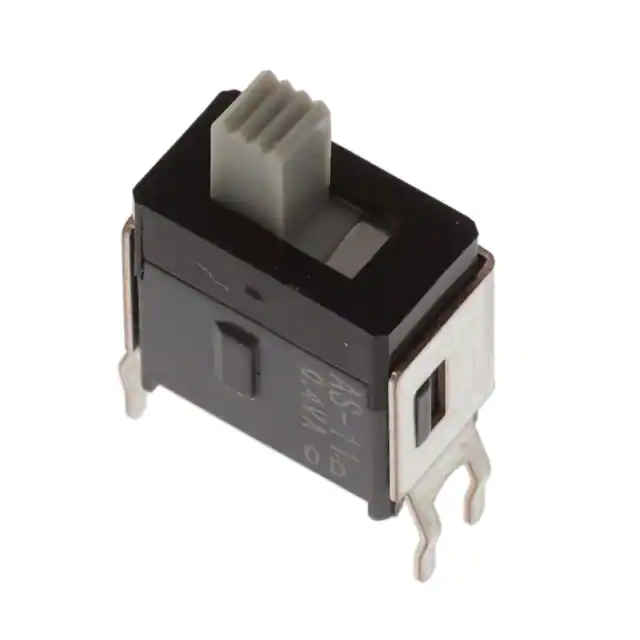

AS11CBSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
1,492 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS22AHSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,702 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSN22ASW30SWITCH SLIDE NKK Switches |
4,135 |
|
Datasheet |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|

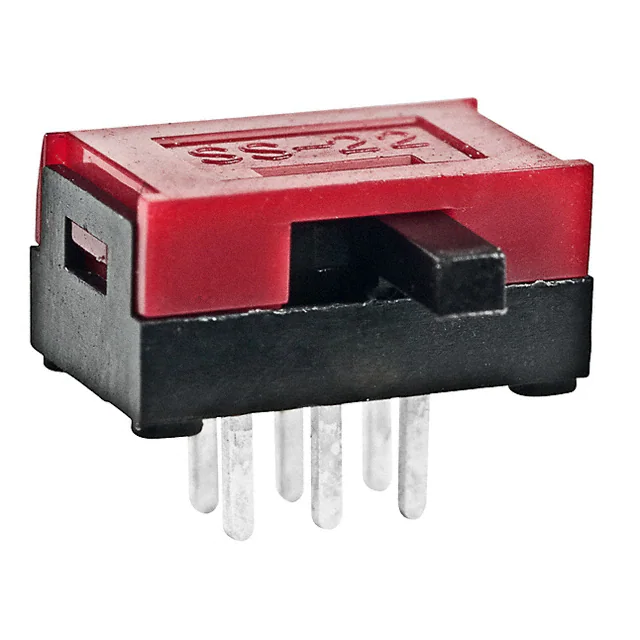

SS22SBH2SWITCH SLIDE DPDT 100MA 30V NKK Switches |
4,227 |
|
Datasheet |
SS | Tray | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|

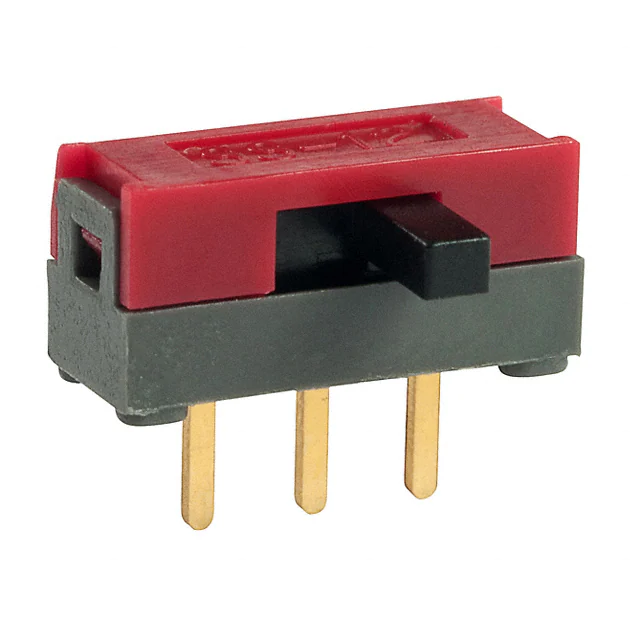

SS12SDH4SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
3,697 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|

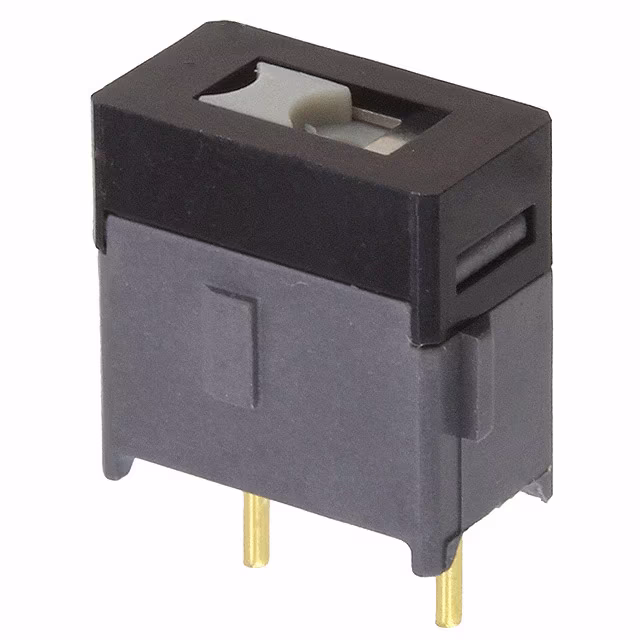

AS11BPSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
1,393 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
