Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS12CV1SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
3,630 |
|
Datasheet |
A | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.81mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
AS13ABSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
3,516 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS13CBSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
1,692 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS13CHSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
2,487 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

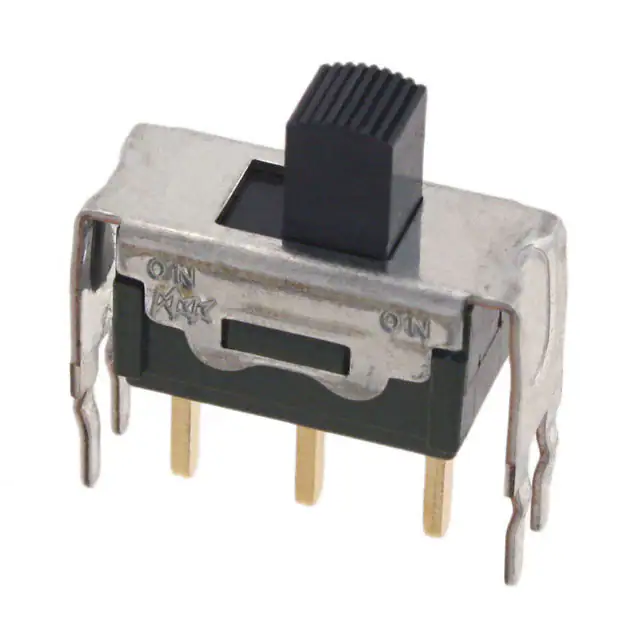

MS12ASG13SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
105 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

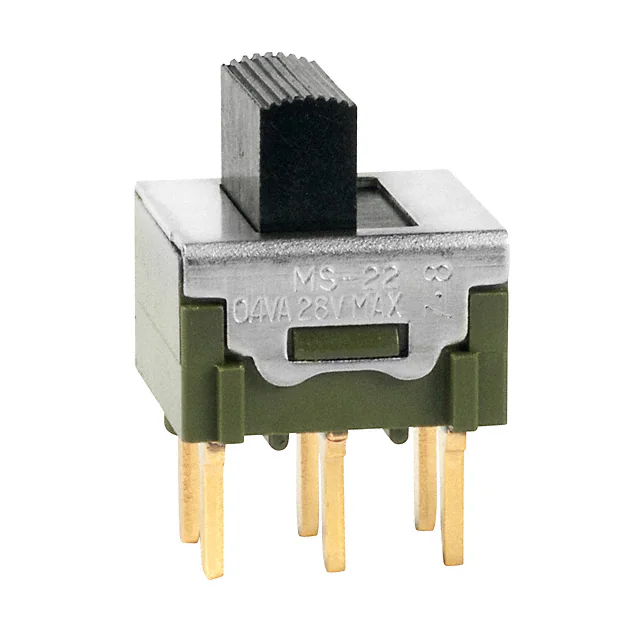

MS22BNG03SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,698 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MS22ANG03SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,028 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

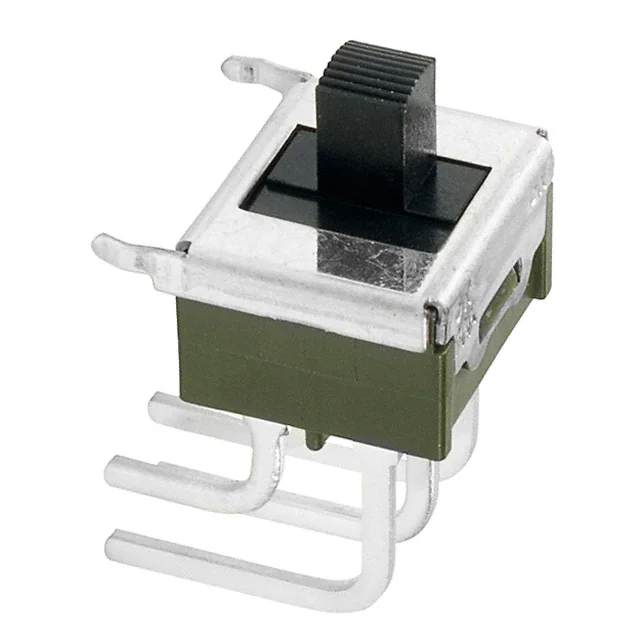

MS22ASW30SWITCH SLIDE DPDT 6A 125V NKK Switches |
4,046 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

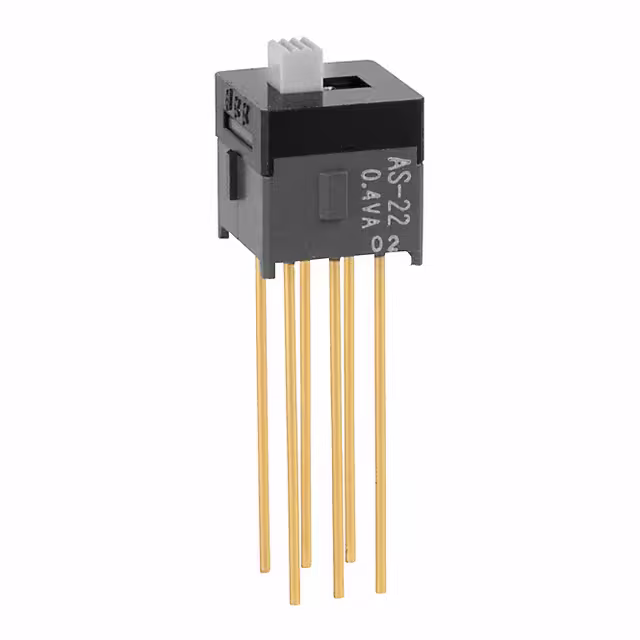

AS22AWSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
2,146 |
|
Datasheet |
AS | Tube | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

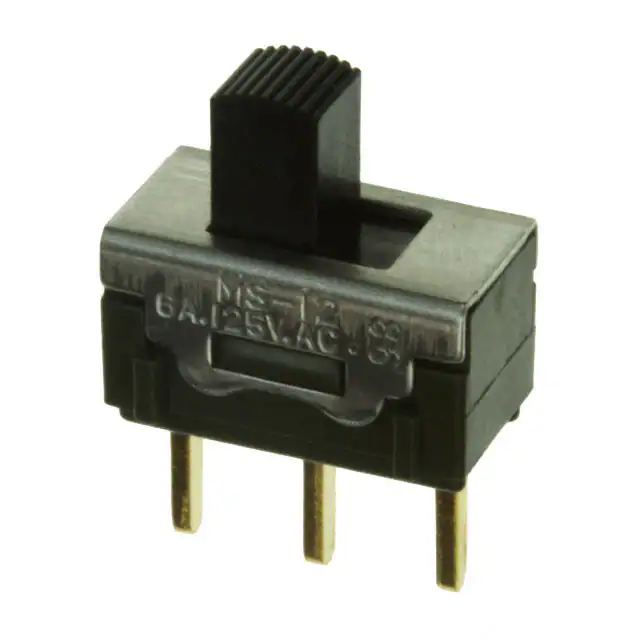

MS12ANA03SWITCH SLIDE SPDT 6A 125V NKK Switches |
1,356 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
