Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS11BHSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
1,451 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

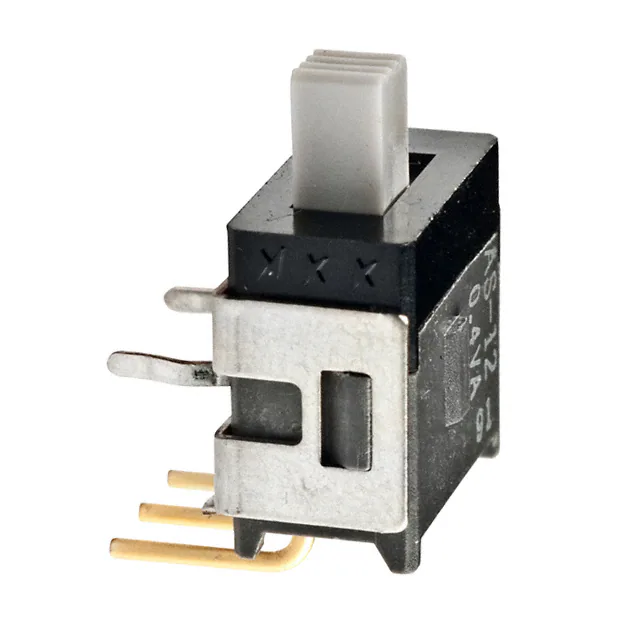

AS12CHSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
2,731 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS12CV/ASWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
3,890 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

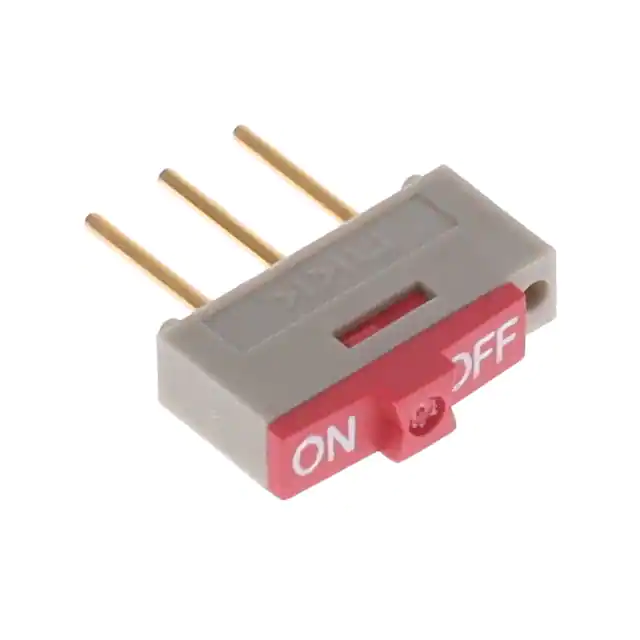

SMVA001SWITCH SLIDE SPDT 0.5A 12V NKK Switches |
2,542 |
|
Datasheet |
SM | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Brass | Gold | Through Hole | PC Pin | On-Off Marking on Housing |
|
AS13AHSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
2,347 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

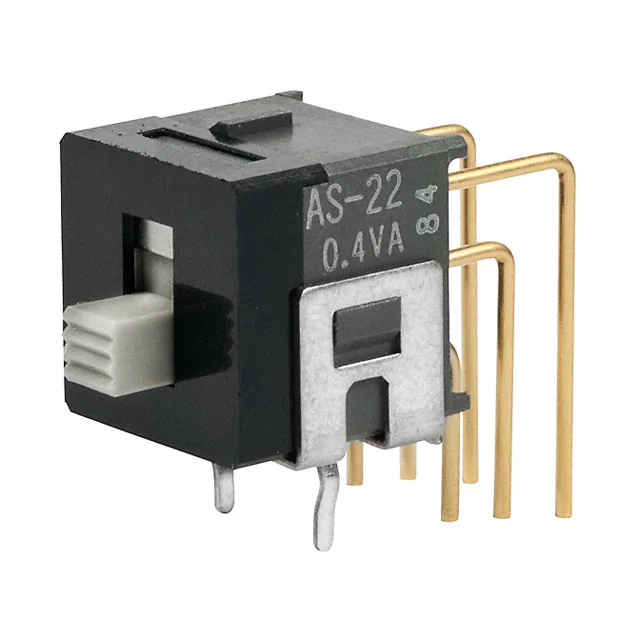

AS22AVSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,108 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

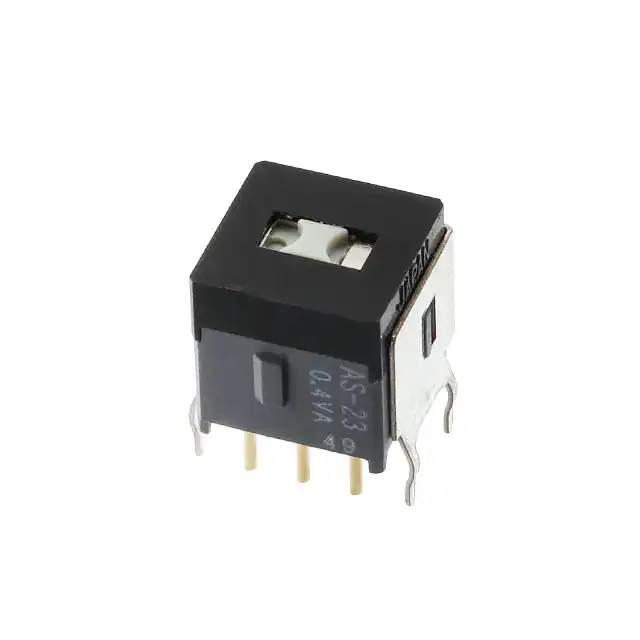

AS23BBSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,449 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
SS12SDP2LESWITCH SLIDE SPDT 100MA 30V NKK Switches |
3,023 |
|
Datasheet |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SS12SDP2LFSWITCH SLIDE SPDT 100MA 30V NKK Switches |
2,489 |
|
Datasheet |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SS12SDH2LFSWITCH SLIDE SPDT 100MA 30V NKK Switches |
4,685 |
|
Datasheet |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
