Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

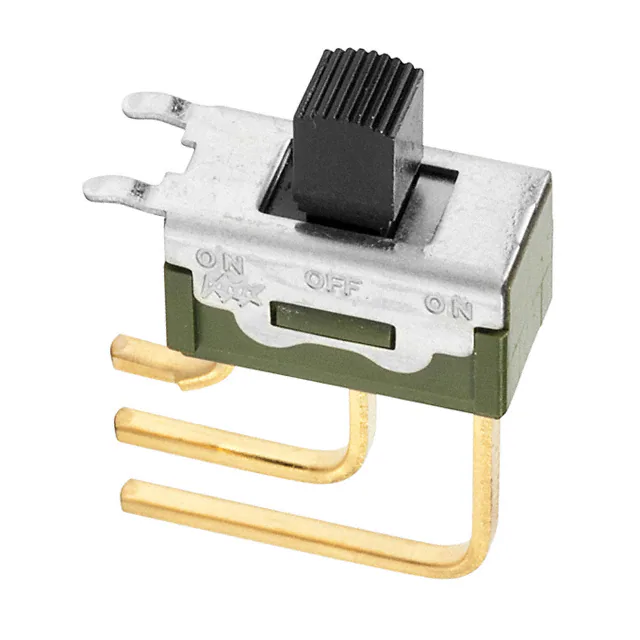

MS13ASG40SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
190 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

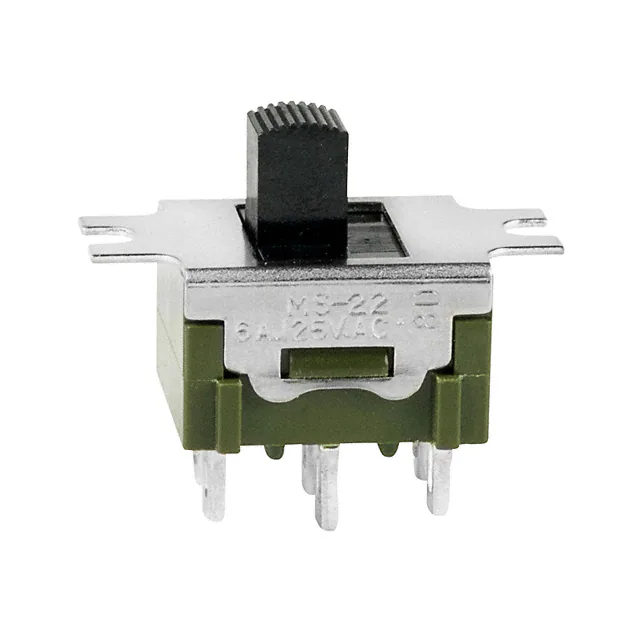

MS22AFW01SWITCH SLIDE DPDT 6A 125V NKK Switches |
1,593 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

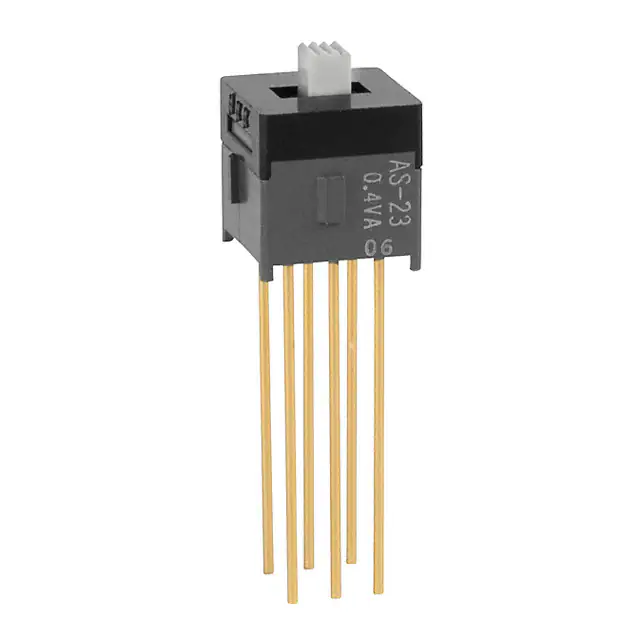

AS23AWSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,529 |
|
Datasheet |
AS | Tube | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

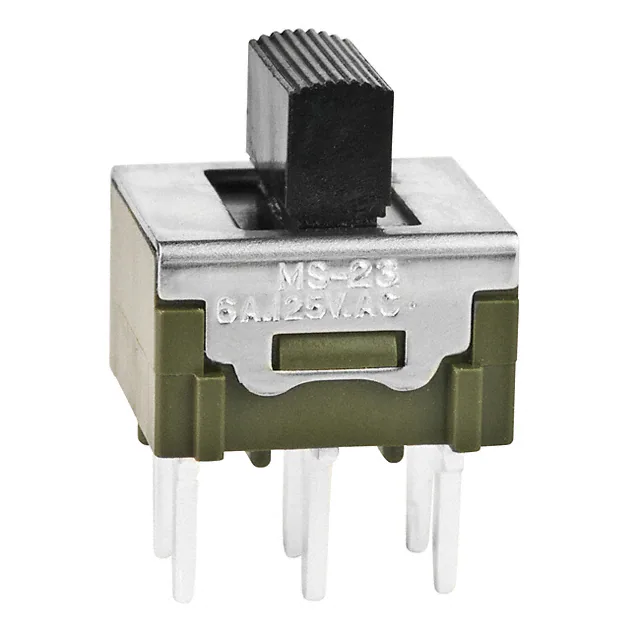

MS23BNW03SWITCH SLIDE DPDT 6A 125V NKK Switches |
376 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

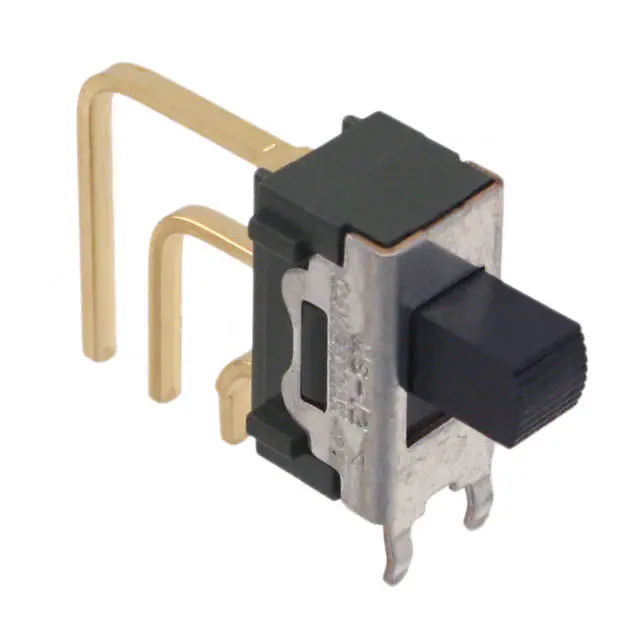

MS12ASG40SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
873 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
AS23AVSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,326 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

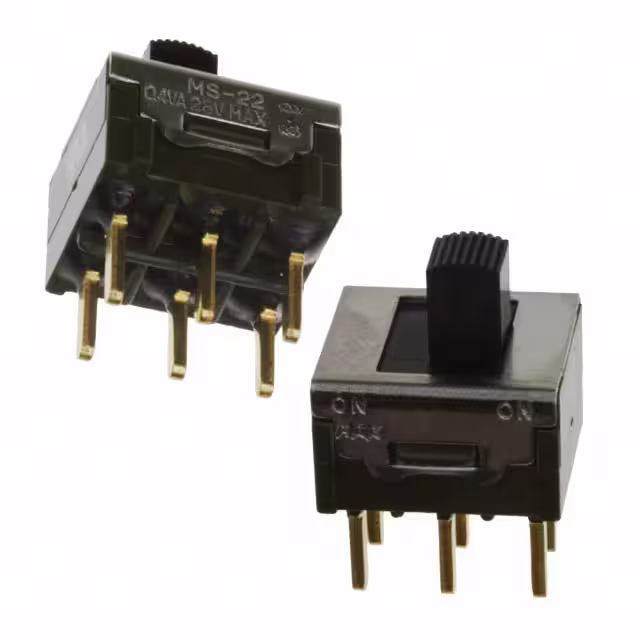

MS22ANG03/USWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,842 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

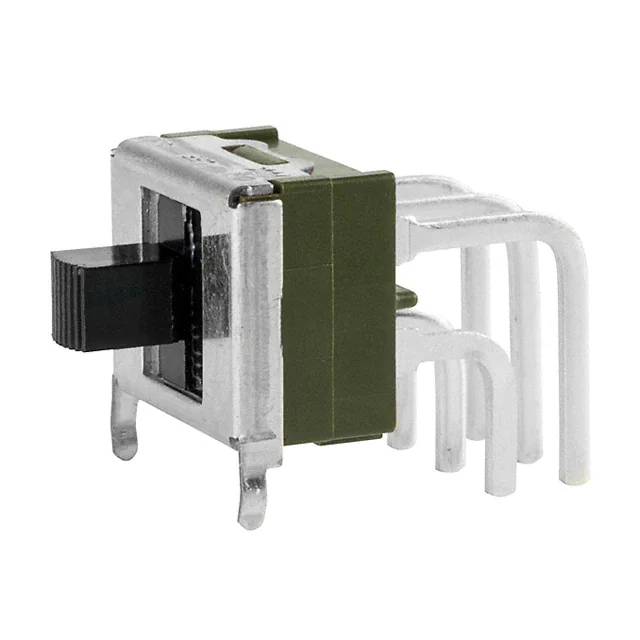

MS23ASW30SWITCH SLIDE DPDT 6A 125V NKK Switches |
112 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
AS24AWSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
2,535 |
|
Datasheet |
AS | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Jumper needed to achieve triple throw |
|
SS22SDH2LESWITCH SLIDE DPDT 100MA 30V NKK Switches |
477 |
|
Datasheet |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
