Specialty Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Inductance | For Use With/Related Products | Mounting Type | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9400.122NLTTRANSFORMER 2.88MH SMD Pulse Electronics |
396 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 2.88 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|
|
PH9400.233ANLTTRANSFORMER 720UH SMD Pulse Electronics |
1,126 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 720 µH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|
|
PH9400.655ANLTTRANSFORMER 1.62MH SMD Pulse Electronics |
700 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 1.62 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|

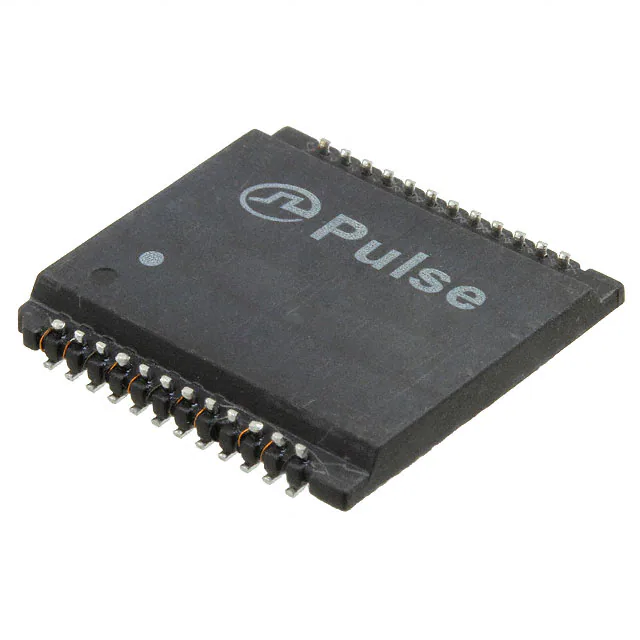

H5019EFNLTRANSFORMER 350UH SMD Pulse Electronics |
267 |
|
Datasheet |
- | Tube | Active | 350 µH | - | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) |
|
PH9185.021NLTRANSFORMER 1.8MH MAX253 SMD Pulse Electronics |
4,206 |
|
Datasheet |
PH9185 | Tray | Active | 1.8 mH | MAX253 | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
|
PH9385.015NLTXFMR PUSH-PULL 1.35MH RS-485 SMD Pulse Electronics |
1,034 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | 1.35 mH | RS-485 Communications | Surface Mount | - | 0.295" (7.50mm) |
|
PE-65812FNLTRANSFORMER 2.5MH SMD Pulse Electronics |
2,513 |
|
Datasheet |
- | Tube | Active | 2.5 mH | - | Surface Mount | 0.500" L x 0.566" W (12.70mm x 14.37mm) | 0.340" (8.64mm) |
|

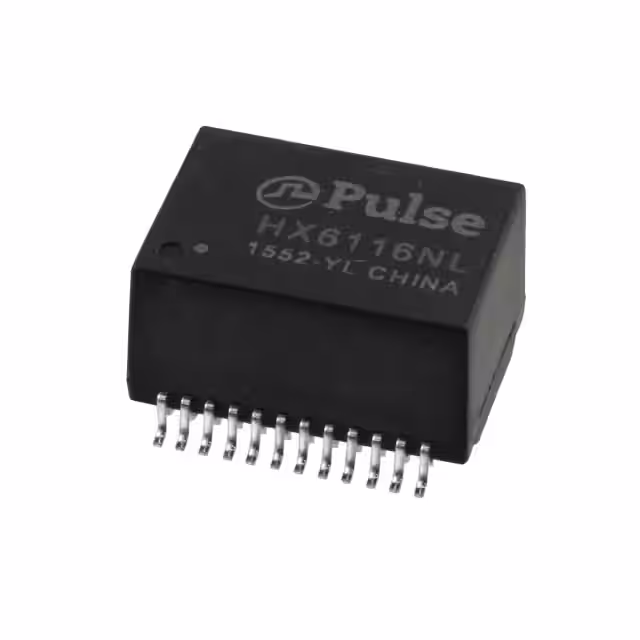

HX6116NLTRANSFORMER SMD Pulse Electronics |
3,879 |
|
- |
- | Tube | Active | - | - | - | - | - |
|
PG1427.004NLTTRANSFORMER 820UH SMD Pulse Electronics |
4,875 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 820 µH | - | Surface Mount | - | 0.118" (3.00mm) |
|
|
PG1427.002NLTTRANSFORMER 780UH SMD Pulse Electronics |
4,679 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 780 µH | - | Surface Mount | - | 0.118" (3.00mm) |
