Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90J5K0ERES 5K OHM 5% 11W AXIAL Ohmite |
175 |
|
Datasheet |
90 | Bulk | Active | 5 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
21J2K5ERES 2.5K OHM 5% 1W AXIAL Ohmite |
210 |
|
Datasheet |
20 | Bulk | Active | 2.5 kOhms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|
TA025PW5R10JERES 5.1 OHM 5% 25W POWERCHIP Ohmite |
112 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 5.1 Ohms | ±5% | 25W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 2.220" L x 0.240" W (56.39mm x 6.10mm) | 1.189" (30.21mm) | 4 | - |
|

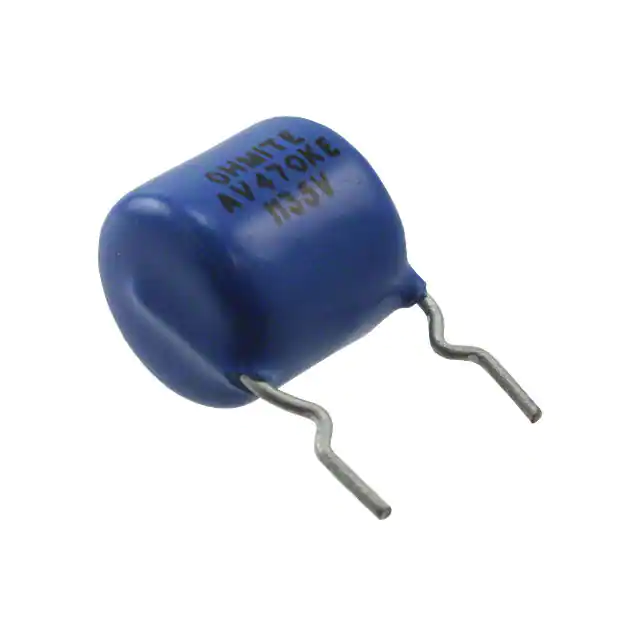

AV470KERES 47 OHM 10% 2W RADIAL Ohmite |
200 |
|
Datasheet |
PulsEater® A | Bulk | Active | 47 Ohms | ±10% | 2W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | - | 0.591" L x 0.512" W (15.00mm x 13.00mm) | 0.866" (22.00mm) | 2 | - |
|
AY150KERES 15 OHM 10% 4.5W RADIAL Ohmite |
250 |
|
Datasheet |
PulsEater® A | Bulk | Active | 15 Ohms | ±10% | 4.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 0.984" L x 0.827" W (25.00mm x 21.00mm) | 1.102" (28.00mm) | 2 | - |
|
AZ470KERES 47 OHM 10% 5.5W RADIAL Ohmite |
181 |
|
Datasheet |
PulsEater® A | Bulk | Active | 47 Ohms | ±10% | 5.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | - | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 1.024" (26.00mm) | 4 | - |
|
AY102KERES 1K OHM 10% 4.5W RADIAL Ohmite |
229 |
|
Datasheet |
PulsEater® A | Bulk | Active | 1 kOhms | ±10% | 4.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 0.984" L x 0.827" W (25.00mm x 21.00mm) | 1.102" (28.00mm) | 2 | - |
|
|
AZ330KERES 33 OHM 10% 5.5W RADIAL Ohmite |
131 |
|
Datasheet |
PulsEater® A | Bulk | Active | 33 Ohms | ±10% | 5.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | - | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 1.024" (26.00mm) | 4 | - |
|
AZ102KERES 1K OHM 10% 5.5W RADIAL Ohmite |
113 |
|
Datasheet |
PulsEater® A | Bulk | Active | 1 kOhms | ±10% | 5.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 1.024" (26.00mm) | 4 | - |
|
|
AZ331KERES 330 OHM 10% 5.5W RADIAL Ohmite |
173 |
|
Datasheet |
PulsEater® A | Bulk | Active | 330 Ohms | ±10% | 5.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 1.024" (26.00mm) | 4 | - |
