Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UM040Z1008JERES 10 GOHM 5% 1.2W RADIAL Ohmite |
3,206 |
|
Datasheet |
Ultra-Mox | Bulk | Active | 10 GOhms | ±5% | 1.2W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 125°C | Radial Lead | 1.575" L x 0.063" W (40.00mm x 1.60mm) | 0.236" (6.00mm) | 2 | - |
|
HSX-2T1006FE100 MEG HERMETICALLY SEALED Ohmite |
4,908 |
|
Datasheet |
HSX | Box | Active | 100 MOhms | ±1% | 2W | Ceramic | Moisture Resistant | ±100ppm/°C | -30°C ~ 75°C | Axial | 0.256" Dia x 1.063" L (6.50mm x 27.00mm) | - | 2 | - |
|
HSX-2Z1007FE1 GIG HERMETICALL SEALED Ohmite |
4,642 |
|
Datasheet |
HSX | Box | Active | 1 GOhms | ±1% | 2W | Ceramic | Moisture Resistant | ±200ppm/°C | -30°C ~ 75°C | Axial | 0.256" Dia x 1.063" L (6.50mm x 27.00mm) | - | 2 | - |
|
252BA254KDSRES 250K OHM 10% 5W AXIAL Ohmite |
100 |
|
Datasheet |
200 | Box | Active | 250 kOhms | ±10% | 5W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | -55°C ~ 230°C | Axial | 0.437" Dia x 2.126" L (11.10mm x 54.00mm) | - | 2 | - |
|
|
UM040E1009JERES 100 GOHM 5% 1.2W RADIAL Ohmite |
1,509 |
|
Datasheet |
Ultra-Mox | Bulk | Active | 100 GOhms | ±5% | 1.2W | Thick Film | High Voltage | ±500ppm/°C | -55°C ~ 125°C | Radial Lead | 1.575" L x 0.063" W (40.00mm x 1.60mm) | 0.236" (6.00mm) | 2 | - |
|
|
UM040E100AJERES 5% 1.2W RADIAL Ohmite |
4,155 |
|
Datasheet |
Ultra-Mox | Bulk | Active | - | ±5% | 1.2W | Thick Film | High Voltage | ±500ppm/°C | -55°C ~ 125°C | - | 1.575" L x 0.063" W (40.00mm x 1.60mm) | 0.236" (6.00mm) | 2 | - |
|
|
UM050T1008JERES 10 GOHM 5% 3W RADIAL Ohmite |
3,702 |
|
Datasheet |
Ultra-Mox | Bulk | Active | 10 GOhms | ±5% | 3W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 125°C | - | 1.969" L x 0.063" W (50.00mm x 1.60mm) | 0.492" (12.50mm) | 2 | - |
|
|
UM050Z100AJERES 1T OHM 5% 3W RADIAL Ohmite |
1,040 |
|
Datasheet |
Ultra-Mox | Bulk | Active | - | ±5% | 3W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 125°C | - | 1.969" L x 0.063" W (50.00mm x 1.60mm) | 0.492" (12.50mm) | 2 | - |
|
|
UM050E100BKERES 10T OHM 10% 3W RADIAL Ohmite |
4,566 |
|
Datasheet |
Ultra-Mox | Bulk | Active | - | ±10% | 3W | Thick Film | High Voltage | ±500ppm/°C | -55°C ~ 125°C | Radial Lead | 1.969" L x 0.063" W (50.00mm x 1.60mm) | 0.492" (12.50mm) | 2 | - |
|

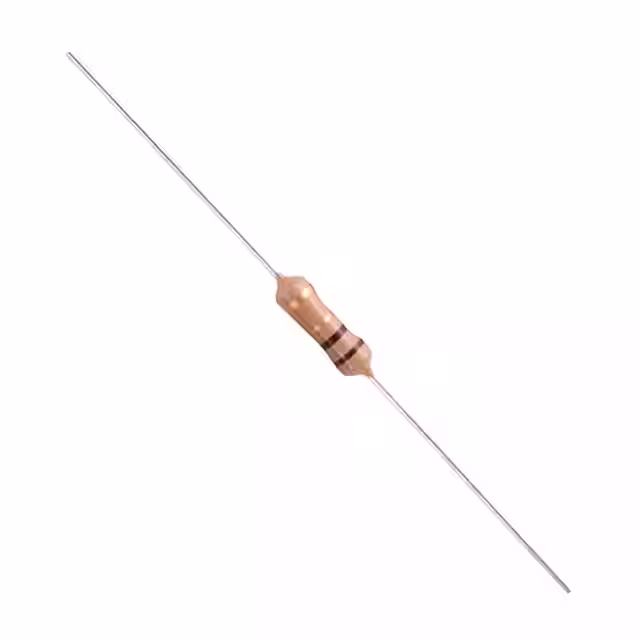

OL11G5E-R52RES 1.1 OHM 5% 1/2W AXIAL Ohmite |
72,000 |
|
Datasheet |
Little Rebel® OL | Tape & Reel (TR) | Active | 1.1 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | - | Axial | 0.118" Dia x 0.354" L (3.00mm x 9.00mm) | - | 2 | - |
