Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TWW3JR82ERES 0.82 OHM 5% 3W RADIAL Ohmite |
1,600 |
|
Datasheet |
TWW | Bulk | Active | 820 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
OF682JERES 6.8K OHM 5% 1/2W AXIAL Ohmite |
2,870 |
|
Datasheet |
Little Demon® OF | Bulk | Active | 6.8 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OD47GJERES 4.7 OHM 5% 1/4W AXIAL Ohmite |
1,830 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 4.7 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|

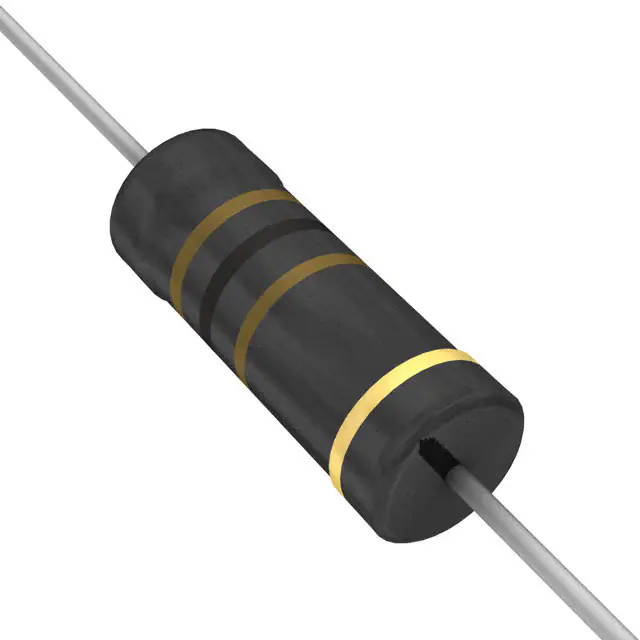

53J100E3W 100 OHM SILICONE 5% Ohmite |
1,275 |
|
Datasheet |
50 | Bulk | Active | 100 Ohms | ±5% | 3W | Wirewound | - | ±30ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|
|
WHE12KJETRES 12K OHM 5% 5W AXIAL Ohmite |
1,490 |
|
Datasheet |
WH | Bulk | Active | 12 kOhms | ±5% | 5W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | - | - | 2 | - |
|
TUW5J2R0ERES 2 OHM 5% 5W AXIAL Ohmite |
1,890 |
|
Datasheet |
TUW | Bulk | Active | 2 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|
OD200JERES 20 OHM 5% 1/4W AXIAL Ohmite |
4,391 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 20 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
55J750E5W 750 OHM SILICONE 5% Ohmite |
1,400 |
|
Datasheet |
50 | Bulk | Active | 750 Ohms | ±5% | 5W | Wirewound | - | ±30ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
OD750JERES 75 OHM 5% 1/4W AXIAL Ohmite |
1,353 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 75 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|

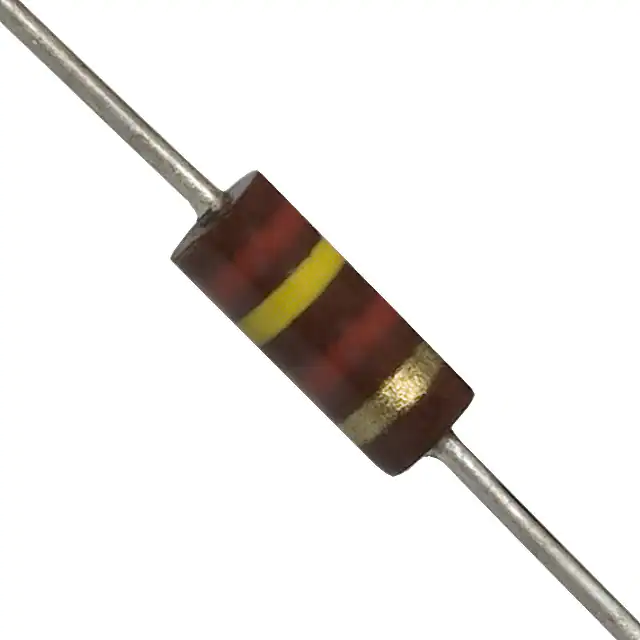

OD242JERES 2.4K OHM 5% 1/4W AXIAL Ohmite |
1,188 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 2.4 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
