Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD131JERES 130 OHM 5% 1/4W AXIAL Ohmite |
1,730 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 130 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
OD39GJERES 3.9 OHM 5% 1/4W AXIAL Ohmite |
1,500 |
|
Datasheet |
Little Demon® OD | Strip | Active | 3.9 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
|
OD113JERES 11K OHM 5% 1/4W AXIAL Ohmite |
1,390 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 11 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
|
OF753JERES 75K OHM 5% 1/2W AXIAL Ohmite |
1,380 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 75 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
OD912JERES 9.1K OHM 5% 1/4W AXIAL Ohmite |
2,447 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 9.1 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|

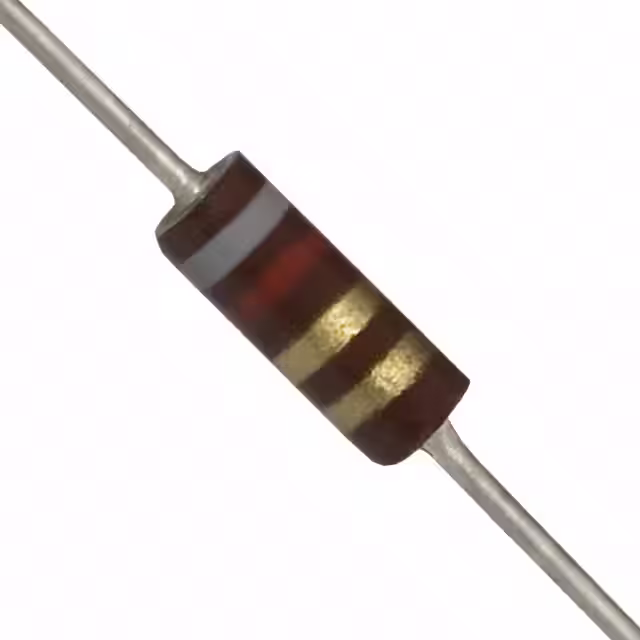

OD82GJERES 8.2 OHM 5% 1/4W AXIAL Ohmite |
1,494 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 8.2 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
TWW5JR68ERES 0.68 OHM 5% 5W RADIAL Ohmite |
2,000 |
|
Datasheet |
TWW | Bulk | Active | 680 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
|
OF360JERES 36 OHM 5% 1/2W AXIAL Ohmite |
1,580 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 36 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
55J5R0E5W 5 OHM SILICONE 5% Ohmite |
1,745 |
|
Datasheet |
50 | Bulk | Active | 5 Ohms | ±5% | 5W | Wirewound | - | ±50ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
|
TWW5JR39ERES 0.39 OHM 5% 5W RADIAL Ohmite |
1,300 |
|
Datasheet |
TWW | Bulk | Active | 390 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
