Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

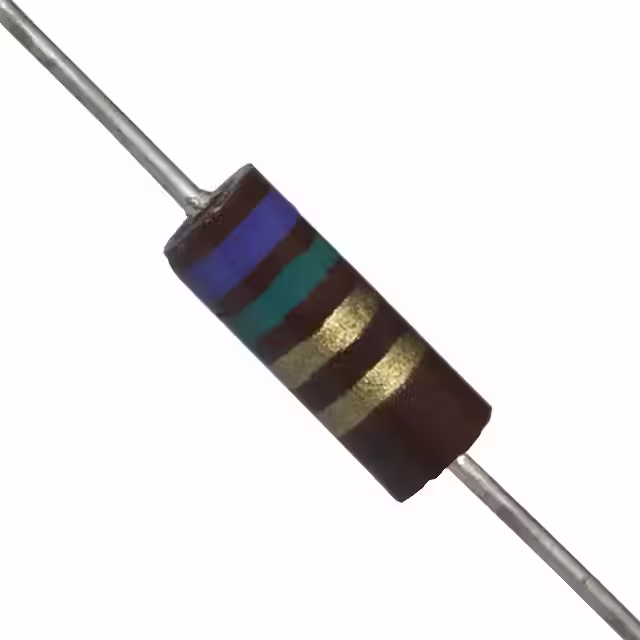

OF75GJERES 7.5 OHM 5% 1/2W AXIAL Ohmite |
1,400 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 7.5 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
TWW3JR20ERES 0.2 OHM 5% 3W RADIAL Ohmite |
1,390 |
|
Datasheet |
TWW | Bulk | Active | 200 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
TWM3J3K3ERES 3.3K OHM 5% 3W RADIAL Ohmite |
1,250 |
|
Datasheet |
TWM | Bulk | Active | 3.3 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
OF825JERES 8.2M OHM 5% 1/2W AXIAL Ohmite |
1,998 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 8.2 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF335JERES 3.3M OHM 5% 1/2W AXIAL Ohmite |
1,480 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 3.3 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
TWM3J1K0ERES 1K OHM 5% 3W RADIAL LEAD Ohmite |
1,490 |
|
Datasheet |
TWM | Bulk | Active | 1 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial Lead | 0.492" L x 0.335" W (12.50mm x 8.50mm) | 1.024" (26.00mm) | 2 | - |
|
OD562JERES 5.6K OHM 5% 1/4W AXIAL Ohmite |
2,490 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 5.6 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
WHB4R0FETRES 4 OHM 1% 1W AXIAL Ohmite |
1,970 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 4 Ohms | ±1% | 1W | Wirewound | Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
|
WHC250FETRES 250 OHM 1% 2W AXIAL Ohmite |
1,780 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 250 Ohms | ±1% | 2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
OD305JERES 3M OHM 5% 1/4W AXIAL Ohmite |
1,112 |
|
Datasheet |
Little Demon® OD | Strip | Active | 3 MOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
