Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WHC100FETRES 100 OHM 1% 2W AXIAL Ohmite |
3,996 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 100 Ohms | ±1% | 2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
OF681JERES 680 OHM 5% 1/2W AXIAL Ohmite |
1,890 |
|
Datasheet |
Little Demon® OF | Bulk | Active | 680 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
WLCR020FETRES 0.02 OHM 1% 2W AXIAL Ohmite |
2,930 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|

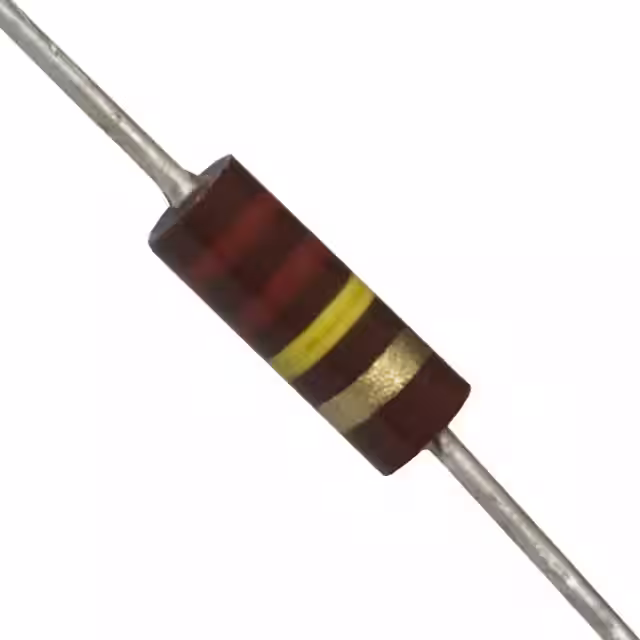

OD224JERES 220K OHM 5% 1/4W AXIAL Ohmite |
2,050 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 220 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
TUW15J20RERES 20 OHM 5% 15W AXIAL Ohmite |
4,620 |
|
Datasheet |
TUW | Bulk | Active | 20 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.492" x 0.453" Rectangular x 1.929" L (12.50mm x 11.50mm x 49.00mm) | - | 2 | - |
|
WLCR015FETRES 0.015 OHM 1% 2W AXIAL Ohmite |
2,996 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
TWM3J100ERES 100 OHM 5% 3W RADIAL Ohmite |
3,547 |
|
Datasheet |
TWM | Bulk | Active | 100 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
WHB51RFETRES 51 OHM 1% 1W AXIAL Ohmite |
2,000 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 1W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
|
OK4745E-R52RES 470K OHM 5% 1/4W AXIAL Ohmite |
34,850 |
|
Datasheet |
Little Rebel® OK | Tape & Reel (TR) | Active | 470 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -700ppm/°C | - | Axial | 0.098" Dia x 0.268" L (2.50mm x 6.80mm) | - | 2 | - |
|
|
OK5625E-R52RES 5.6K OHM 5% 1/4W AXIAL Ohmite |
19,990 |
|
Datasheet |
Little Rebel® OK | Tape & Reel (TR) | Active | 5.6 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -450ppm/°C | - | Axial | 0.098" Dia x 0.268" L (2.50mm x 6.80mm) | - | 2 | - |
