Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX5006801JSERES 6.8K OHM 5% 2W AXIAL Ohmite |
1,631 |
|
Datasheet |
MOX500 | Bulk | Active | 6.8 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
MOX500270RJSERES 270 OHM 5% 2W AXIAL Ohmite |
4,965 |
|
Datasheet |
MOX500 | Bulk | Active | 270 Ohms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
42J75RERES 75 OHM 5% 2W AXIAL Ohmite |
3,693 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 75 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
MOX70032001BYERES 2K OHM 0.1% 1/4W AXIAL Ohmite |
3,653 |
|
Datasheet |
MOX700 | Tray | Active | 2 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
TWW15JR20ERES 0.2 OHM 5% 15W RADIAL Ohmite |
2,359 |
|
Datasheet |
TWW | Box | Active | 200 mOhms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|

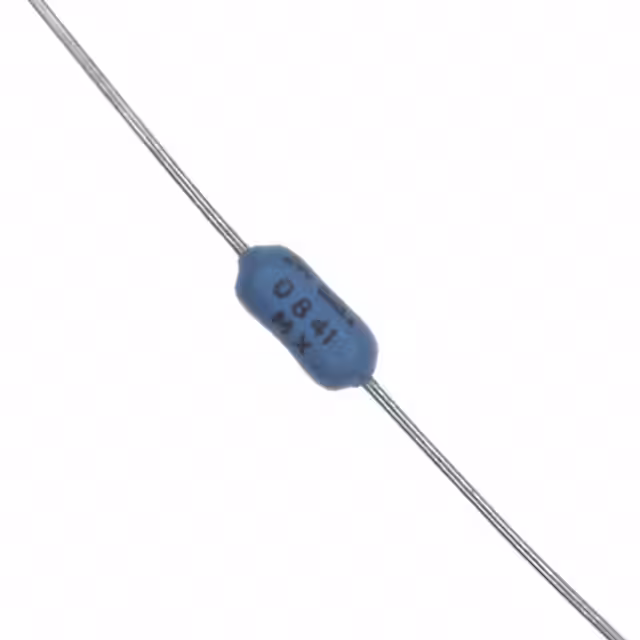

42J82RERES 82 OHM 5% 2W AXIAL Ohmite |
4,689 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 82 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
|
MOX70034991BYERES 4.99K OHM 0.1% 1/4W AXIAL Ohmite |
4,398 |
|
Datasheet |
MOX700 | Tray | Active | 4.99 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
|
MOX70032003BYERES 200K OHM 0.1% 1/4W AXIAL Ohmite |
4,215 |
|
Datasheet |
MOX700 | Tray | Active | 200 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
TWM15J7K5ERES 7.5K OHM 5% 15W RADIAL Ohmite |
2,587 |
|
Datasheet |
TWM | Box | Active | 7.5 kOhms | ±5% | 15W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
43F4R0ERES 4 OHM 1% 3W AXIAL Ohmite |
2,876 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 4 Ohms | ±1% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
