Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX70031003BYERES 100K OHM 0.1% 1/4W AXIAL Ohmite |
3,511 |
|
Datasheet |
MOX700 | Tray | Active | 100 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
42JR50ERES 0.5 OHM 5% 2W AXIAL Ohmite |
3,391 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 mOhms | ±5% | 2W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
TWW20J270ERES 270 OHM 5% 20W RADIAL Ohmite |
2,226 |
|
Datasheet |
TWW | Box | Active | 270 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
45F6K8ERES 6.8K OHM 1% 5W AXIAL Ohmite |
1,606 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 6.8 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
23J8K0ERES 8K OHM 5% 3W AXIAL Ohmite |
4,401 |
|
Datasheet |
20 | Bulk | Active | 8 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
25J33RERES 33 OHM 5% 5W AXIAL Ohmite |
4,755 |
|
Datasheet |
20 | Bulk | Active | 33 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|

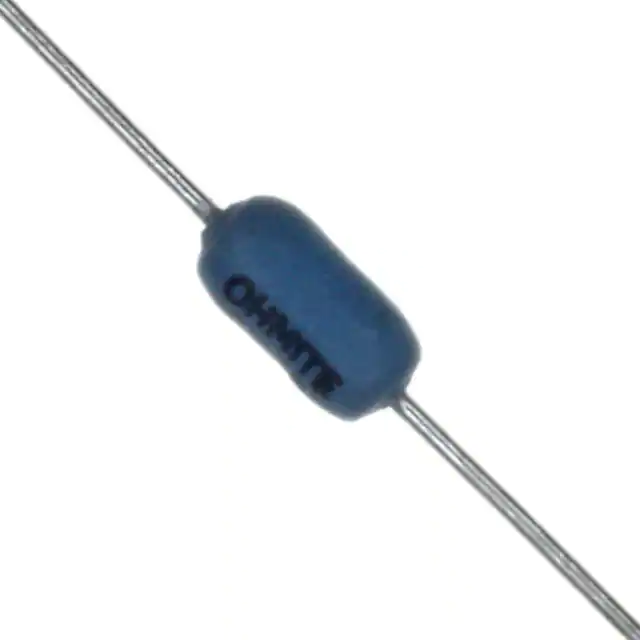

42J15RERES 15 OHM 5% 2W AXIAL Ohmite |
1,176 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 15 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
|
25J4K7ERES 4.7K OHM 5% 5W AXIAL Ohmite |
1,323 |
|
Datasheet |
20 | Bulk | Active | 4.7 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
TWW15J27RERES 27 OHM 5% 15W RADIAL Ohmite |
1,623 |
|
Datasheet |
TWW | Box | Active | 27 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
|
MOX70032003BZERES 200K OHM 0.1% 1/4W AXIAL Ohmite |
4,660 |
|
Datasheet |
MOX700 | Tray | Active | 200 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
