Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
41F20RERES 20 OHM 1% 1W AXIAL Ohmite |
398 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 20 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
20J1K2ERES 1.2K OHM 5% 10W AXIAL Ohmite |
379 |
|
Datasheet |
20 | Bulk | Active | 1.2 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
|
41F5R0ERES 5 OHM 1% 1W AXIAL Ohmite |
255 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 5 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
AP836 10K JRES 10K OHM 5% 35W TO220 Ohmite |
447 |
|
Datasheet |
ARCOL, AP836 | Tray | Active | 10 kOhms | ±5% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
45FR50ERES 0.5 OHM 1% 5W AXIAL Ohmite |
254 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 mOhms | ±1% | 5W | Wirewound | - | ±90ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
23J5K0ERES 5K OHM 5% 3W AXIAL Ohmite |
200 |
|
Datasheet |
20 | Bulk | Active | 5 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
45FR25ERES 0.25 OHM 1% 5W AXIAL Ohmite |
211 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 250 mOhms | ±1% | 5W | Wirewound | - | ±90ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
41F10RERES 10 OHM 1% 1W AXIAL Ohmite |
1,778 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 10 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

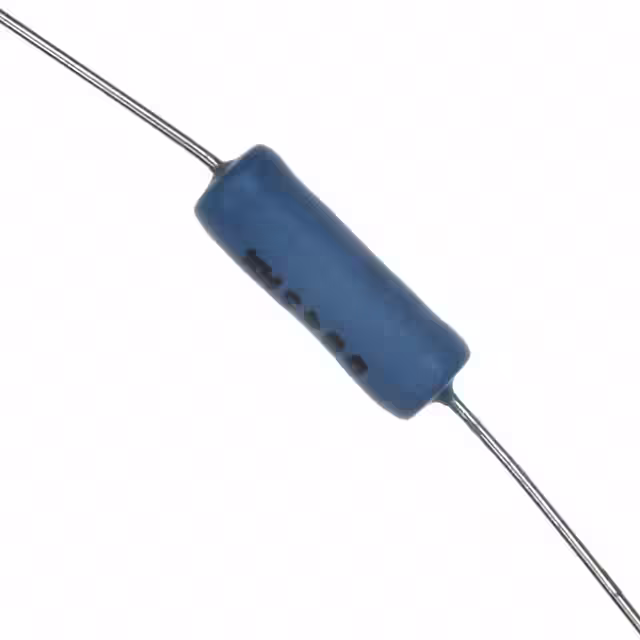

45J680ERES 680 OHM 5% 5W AXIAL Ohmite |
269 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 680 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
43F8K0ERES 8K OHM 1% 3W AXIAL Ohmite |
693 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 8 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
