Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
43F7K5ERES 7.5K OHM 1% 3W AXIAL Ohmite |
359 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 7.5 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F10KERES 10K OHM 1% 3W AXIAL Ohmite |
212 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 10 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
41F500ERES 500 OHM 1% 1W AXIAL Ohmite |
150 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

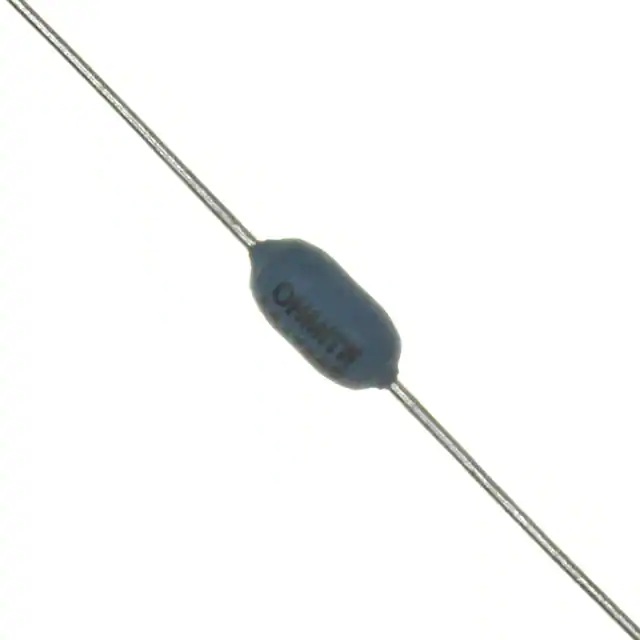

42J250ERES 250 OHM 5% 2W AXIAL Ohmite |
153 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 250 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
B8J3K5ERES 3.5K OHM 5% 8W AXIAL Ohmite |
1,311 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 3.5 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
12FR030ERES 0.03 OHM 1% 2W AXIAL Ohmite |
140 |
|
Datasheet |
10 | Bulk | Active | 30 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|
|
12FR040ERES 40M OHM 1% 2W AXIAL Ohmite |
298 |
|
Datasheet |
10 | Bulk | Active | 40 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|
25J5K0ERES 5K OHM 5% 5W AXIAL Ohmite |
214 |
|
Datasheet |
20 | Bulk | Active | 5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
20J2R0ERES 2 OHM 5% 10W AXIAL Ohmite |
180 |
|
Datasheet |
20 | Bulk | Active | 2 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
|
20JR10ERES 0.1 OHM 5% 10W AXIAL Ohmite |
176 |
|
Datasheet |
20 | Bulk | Active | 100 mOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
