Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
607HR050ERES 0.05 OHM 3% 3/4W AXIAL Ohmite |
250 |
|
Datasheet |
60 | Bulk | Active | 50 mOhms | ±3% | 0.75W, 3/4W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.630" L (16.00mm) | - | 2 | - |
|
615HR030ERES 0.03 OHM 3% 1.5W AXIAL Ohmite |
250 |
|
Datasheet |
60 | Bulk | Active | 30 mOhms | ±3% | 1.5W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.750" L (19.05mm) | - | 2 | - |
|
WHC51RFETRES 51 OHM 1% 2W AXIAL Ohmite |
648 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
MOX5002701GSERES 2.7K OHM 2% 2W AXIAL Ohmite |
533 |
|
Datasheet |
MOX500 | Bulk | Active | 2.7 kOhms | ±2% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
WHBR25FETRES 0.25 OHM 1% 1W AXIAL Ohmite |
1,997 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 250 mOhms | ±1% | 1W | Wirewound | - | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
WHE15RFETRES 15 OHM 1% 5W AXIAL Ohmite |
301 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 15 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
WNB560FETRES 560 OHM 1% 1W AXIAL Ohmite |
280 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 560 Ohms | ±1% | 1W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|

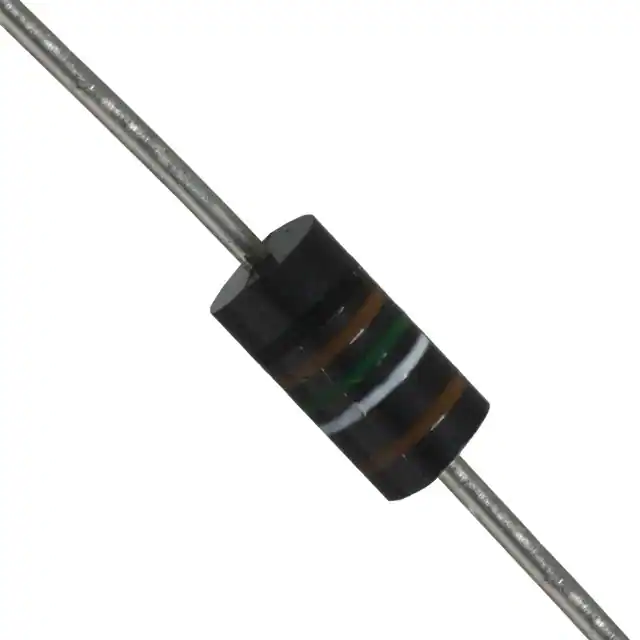

WLBR015FETRES 0.015 OHM 1% 1W AXIAL Ohmite |
992 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 1W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
WLCR030FETRES 0.03 OHM 1% 2W AXIAL Ohmite |
863 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 30 mOhms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
25J15KERES 15K OHM 5% 5W AXIAL Ohmite |
197 |
|
Datasheet |
20 | Bulk | Active | 15 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
