Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

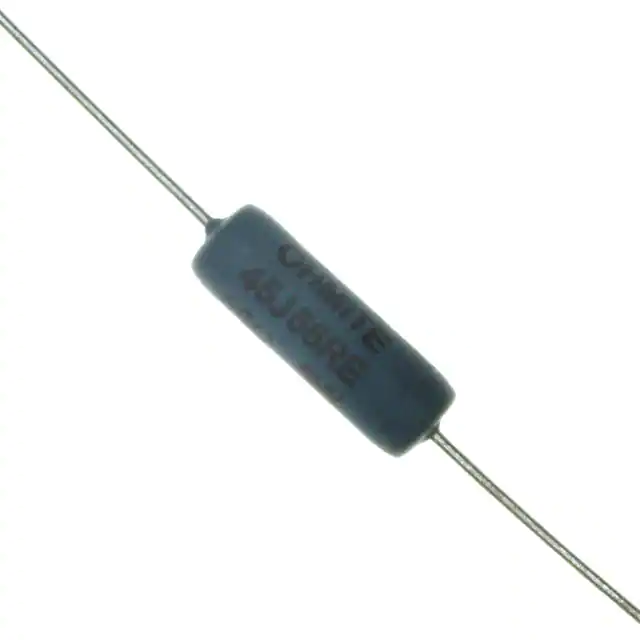

45J56RERES 56 OHM 5% 5W AXIAL Ohmite |
106 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 56 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
WNA150FETRES 150 OHM 1% 1/2W AXIAL Ohmite |
472 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 150 Ohms | ±1% | 0.5W, 1/2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
43F470ERES 470 OHM 1% 3W AXIAL Ohmite |
129 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 470 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F680ERES 680 OHM 1% 3W AXIAL Ohmite |
302 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 680 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F750ERES 750 OHM 1% 3W AXIAL Ohmite |
157 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 750 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
23J125ERES 125 OHM 5% 3W AXIAL Ohmite |
183 |
|
Datasheet |
20 | Bulk | Active | 125 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
43F15RERES 15 OHM 1% 3W AXIAL Ohmite |
304 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 15 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F39RERES 39 OHM 1% 3W AXIAL Ohmite |
275 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 39 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F220ERES 220 OHM 1% 3W AXIAL Ohmite |
160 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 220 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
23J40RERES 40 OHM 5% 3W AXIAL Ohmite |
191 |
|
Datasheet |
20 | Bulk | Active | 40 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
