Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TWM15J10KERES 10K OHM 5% 15W RADIAL Ohmite |
1,754 |
|
Datasheet |
TWM | Box | Active | 10 kOhms | ±5% | 15W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
23J35RERES 35 OHM 5% 3W AXIAL Ohmite |
370 |
|
Datasheet |
20 | Bulk | Active | 35 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|

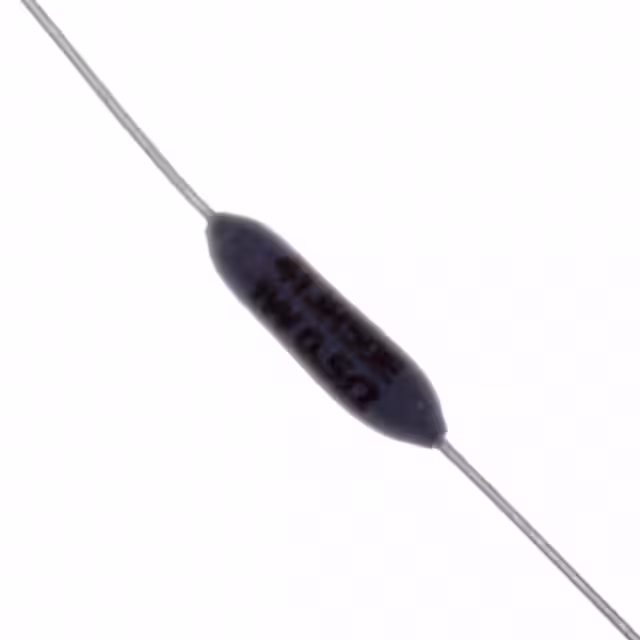

41JR50ERES 0.5 OHM 5% 1W AXIAL Ohmite |
130 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 mOhms | ±5% | 1W | Wirewound | - | ±90ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
OX392KERES 3.9K OHM 10% 1W AXIAL Ohmite |
488 |
|
Datasheet |
OX | Bulk | Active | 3.9 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
|
23J390ERES 390 OHM 5% 3W AXIAL Ohmite |
246 |
|
Datasheet |
20 | Bulk | Active | 390 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
MOX500150RJSERES 150 OHM 5% 2W AXIAL Ohmite |
346 |
|
Datasheet |
MOX500 | Bulk | Active | 150 Ohms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
TWW15JR15ERES 0.15 OHM 5% 15W RADIAL Ohmite |
226 |
|
Datasheet |
TWW | Box | Active | 150 mOhms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
25J47RERES 47 OHM 5% 5W AXIAL Ohmite |
371 |
|
Datasheet |
20 | Bulk | Active | 47 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
23J750ERES 750 OHM 5% 3W AXIAL Ohmite |
356 |
|
Datasheet |
20 | Bulk | Active | 750 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
MOX70031801BYERES 1.8K OHM 0.1% 1/4W AXIAL Ohmite |
107 |
|
Datasheet |
MOX700 | Tray | Active | 1.8 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
