Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCGGV6A10LCESWITCH SNAP ACTION SPDT 5A 125V C&K |
2,560 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | Epoxy Sealed Terminals | 48gf | 6.000gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
DS1D6AQ1SWITCH SNAP ACTION SPDT 10A 125V C&K |
2,897 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
LCGHF5A10ECESWITCH SNAP ACTION SPDT 1A 125V C&K |
3,589 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | Epoxy Sealed Terminals | 57gf | 12gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
ASGGF5J04AWSWITCH SNAP ACT SPST-NC 1A 125V C&K |
2,521 |
|
Datasheet |
A | Bulk | Active | SPST-NC | On-Mom | 1A (AC/DC) | 125 V | 30 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 142gf | 28gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
ASKHF3A04ACSWITCH SNAP ACTION SPDT 25A 125V C&K |
3,537 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.718" (18.24mm) | 0.312" (7.9mm) | - | 0.312" (7.9mm) | -55°C ~ 85°C |
|
|
ASKHF3A24ACSWITCH SNAP ACTION SPDT 25A 125V C&K |
3,927 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.718" (18.24mm) | 0.250" (6.35mm) | - | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
LCGGF5T13ECUESWITCH SNAP ACTION SPDT 1A 125V C&K |
3,072 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | Epoxy Sealed Terminals | 52gf | 6.000gf | 0.455" (11.6mm) | 0.131" (3.3mm) | 0.032" (0.81mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|
DS1D7AQ3SWITCH SNAP ACTION SPDT 16A 125V C&K |
4,813 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|

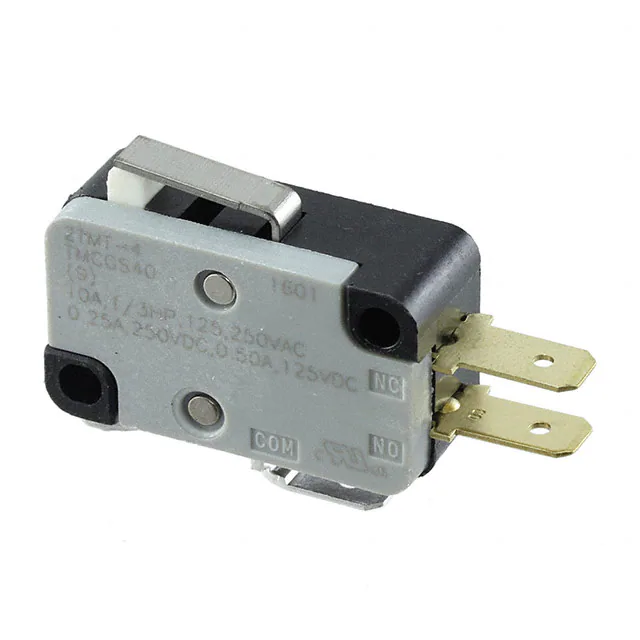

TMCGD6ST1040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,447 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.600" (15.2mm) | 0.080" (2.0mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
|
TMCFD6ST1040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
3,772 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 14gf | 0.600" (15.2mm) | 0.080" (2.0mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
