Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCS012P00WA26AYSWITCH SNAP SPST-NO 100MA 125V C&K |
1,697 |
|
Datasheet |
LCS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 85°C |
|

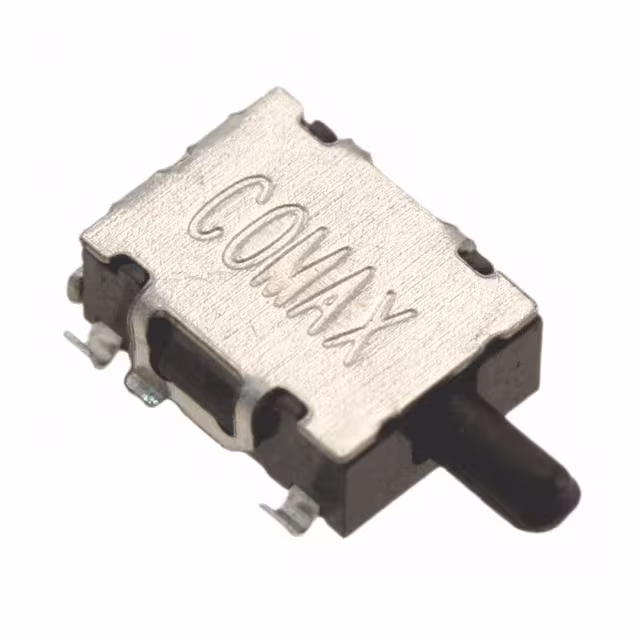

DS-180 RTSWITCH DETECTOR SPST-NO 1MA 5V C&K |
2,709 |
|
Datasheet |
DS, COMAX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide | 60gf | - | 0.148" (3.75mm) | 0.018" (0.45mm) | - | - | - |
|
ZMA00A080P00PCSWITCH SNAP ACT SPDT 100MA 125V C&K |
1,669 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
MS-118305-GSWITCH SNAP ACT SPDT 100MA 30V C&K |
2,732 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | 5.000gf | 0.283" (7.2mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | - |
|
MS105A0101HSWITCH SNAP ACTION SPDT 5A 125V C&K |
2,421 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 65gf | - | 0.370" (9.4mm) | 0.118" (3.0mm) | - | 0.039" (1.0mm) | -40°C ~ 85°C |
|
ZMA03A150S06PCSWITCH SNAP ACTION SPDT 3A 125V C&K |
449 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 49gf | 11gf | 0.420" (10.7mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
LCA10150P00QCSWITCH SNAP ACTION SPDT 10A 125V C&K |
396 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
ZPA00A080P00TSWITCH SNP ACT SPST-NO 0.1A 125V C&K |
302 |
|
Datasheet |
ZPA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Surface Mount | Gull Wing | - | - | 80gf | 21gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.008" (0.2mm) | -40°C ~ 85°C |
|
ZMA03A150L11LCSWITCH SNAP ACTION SPDT 3A 125V C&K |
505 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 39gf | 6.000gf | 0.343" (8.7mm) | 0.172" (4.4mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|

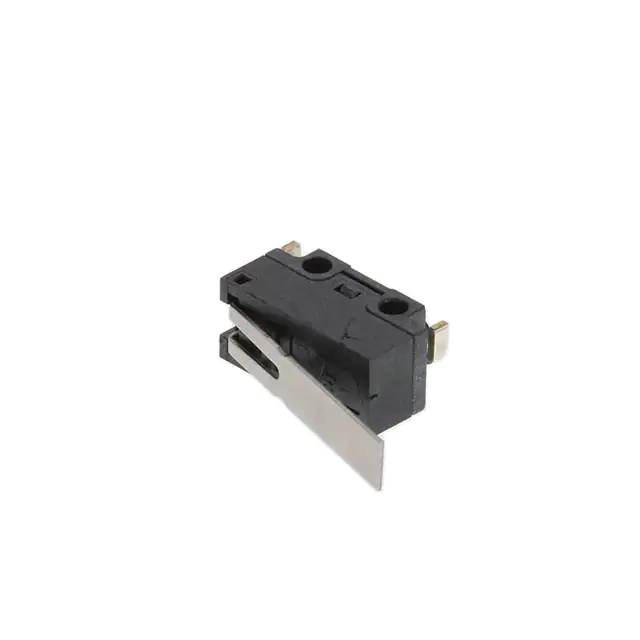

ZPA00A150L11TSWITCH SNP ACT SPST-NO 0.1A 125V C&K |
266 |
|
Datasheet |
ZPA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Surface Mount | Gull Wing | - | - | 39gf | 6.000gf | 0.343" (8.7mm) | 0.172" (4.4mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 85°C |
