Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.233ANLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
624 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

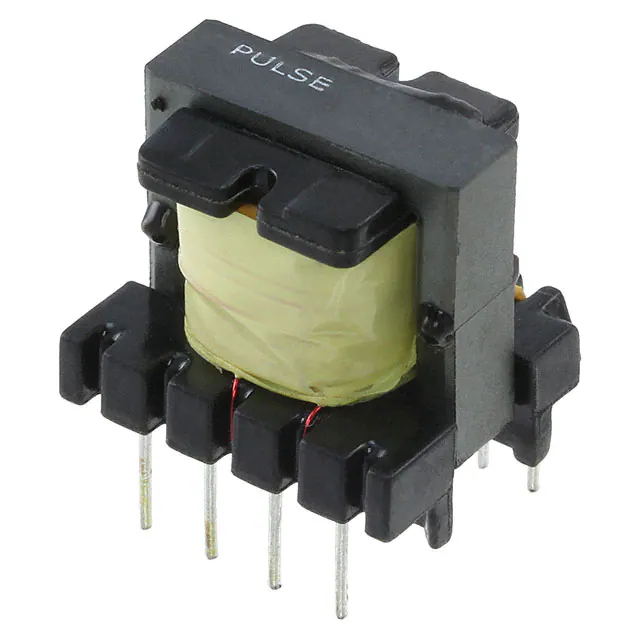

P5009NLPULSE XFMR 1:0.1:0.1 Pulse Electronics |
2,400 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9385.027NLTXFMR PUSH-PULL SIDE CAR 2:7 SMT Pulse Electronics |
139 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | 0.295" (7.50mm) | - | - | - |
|

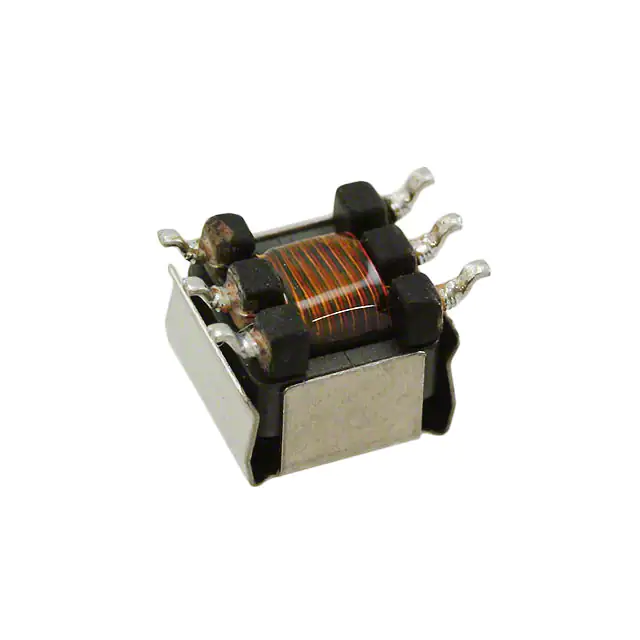

P0926NLPULSE XFMR 1:1:1 300UH Pulse Electronics |
1,380 |
|
Datasheet |
- | Tray | Active | - | 300µH | 23.8VµS | 1:1:1 | Surface Mount | 0.260" L x 0.315" W (6.60mm x 8.00mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|

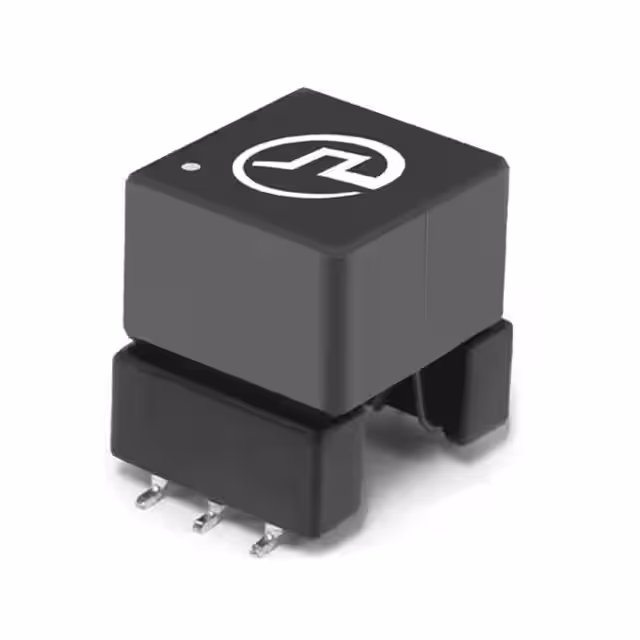

PM2190.011NLTXFMR PWR .750 UH EP7 SM NPB Pulse Electronics |
739 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 1CT:1CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.012NLTXFMR PWR .450 UH EP7 SM NPB Pulse Electronics |
848 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 450µH | 52VµS | 1CT:2CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|

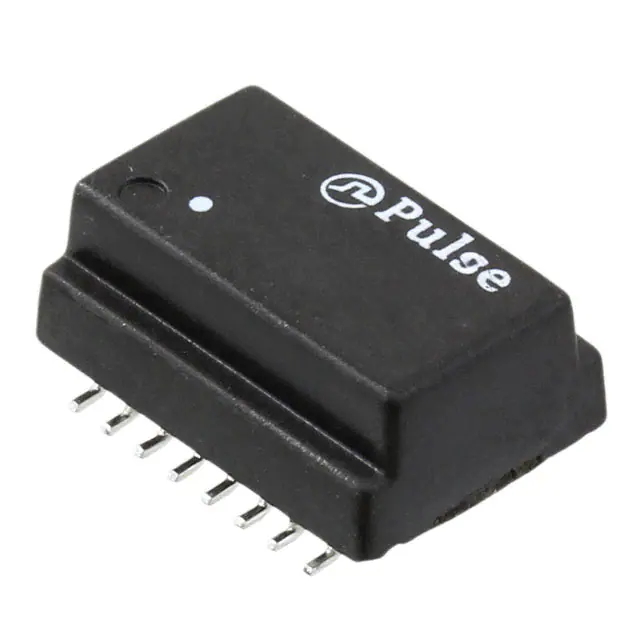

HX1260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,515 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
PA1135NLTXFRMR 12V 7W 264UH POE EP10 SMD Pulse Electronics |
200 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 264.1µH | - | 1:0.286:0.204 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
PA1276NLTXFRMR 12V 13.5W 77.4UH POE EP13 Pulse Electronics |
108 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.682:0.682 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 130°C | - | - |
|
BX4550NLXFMR SGL G.FAST TOR 1CT:1CT Pulse Electronics |
2,255 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - |
