Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

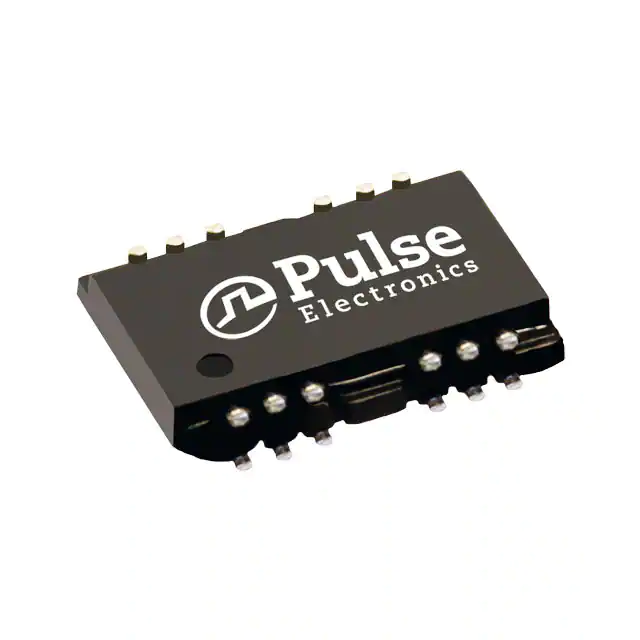

H0068ANLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
3,845 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|

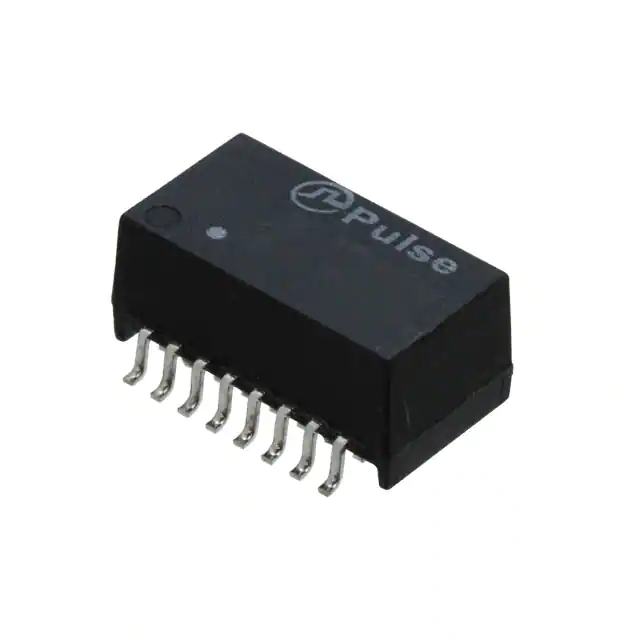

H1197NLTXFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics |
539 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HMU1228NLMDL,SIN,100D,1:1,SM,TU Pulse Electronics |
580 |
|
Datasheet |
HM | Tube | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
|
HM2113ZNLXFMR CMC SGL 150UH 1CT:1CT 4.3KV Pulse Electronics |
1,095 |
|
Datasheet |
- | Tube | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.354" L x 0.478" W (9.00mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
HX2326FNLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
1,917 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
PA1558NLTPULSE XFMR 11.5UH Pulse Electronics |
698 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 11.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

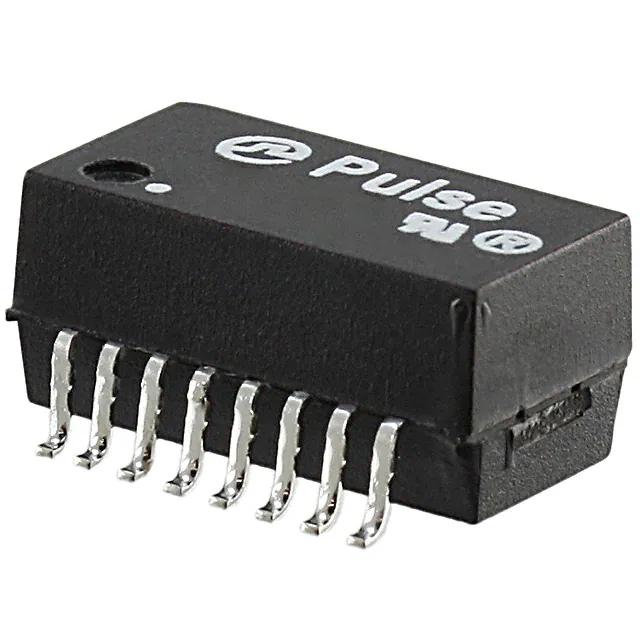

T1144NLTXFRMR 1CT:1CT/1CT:2.4CT 1/1MH Pulse Electronics |
1,321 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
|
T1090NLTRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics |
762 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
T1094NLTRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics |
406 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PE-68678NLTRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics |
347 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
